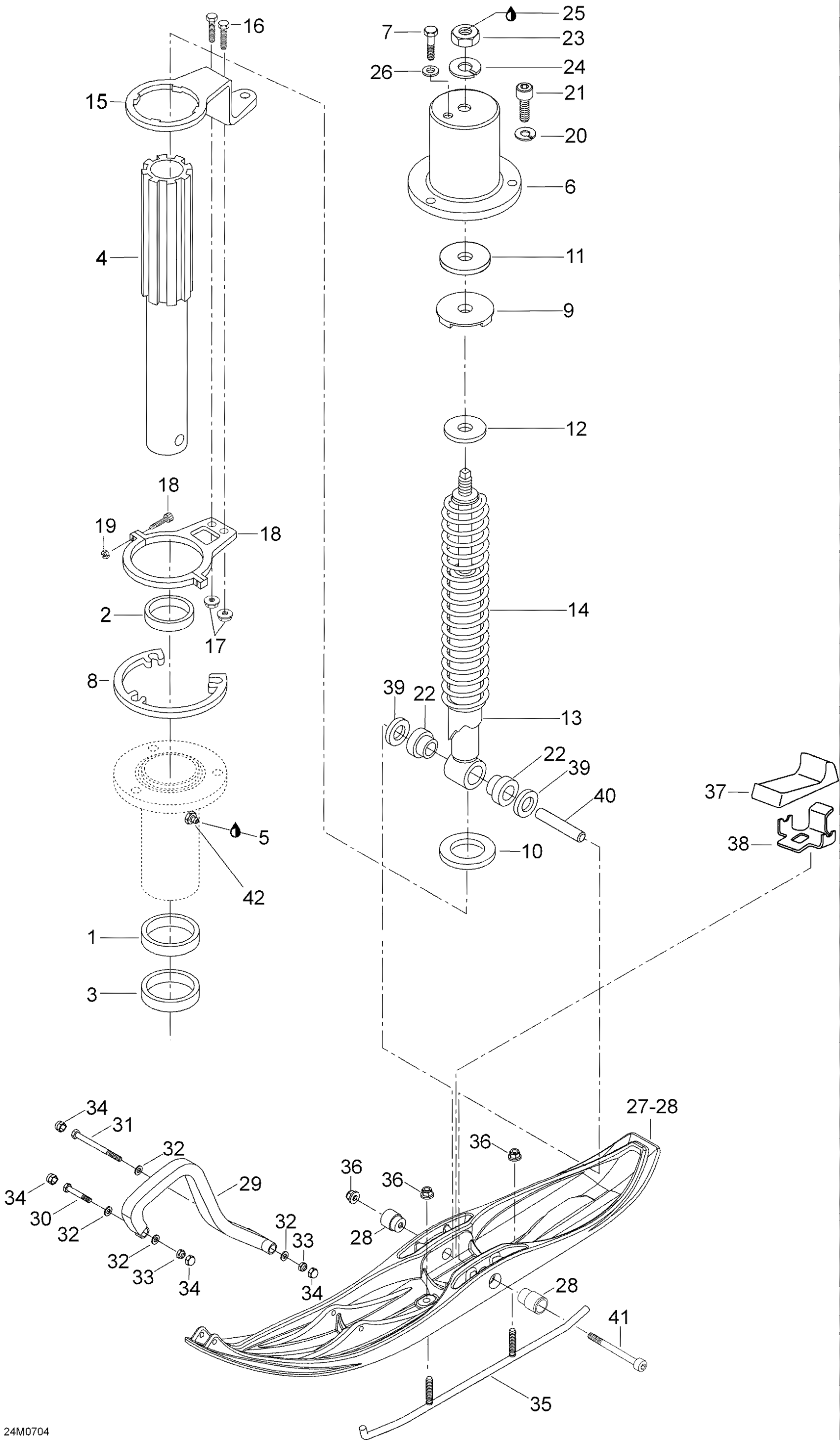

Ski-Doo Skandic LT 440F, 2007 Front Suspension And Ski Diagram

#

Description
Price

1

Lower Cushion

414803200

Unavailable

2

Upper Cushion

414803100

Unavailable

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

4

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

5

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

6

Cover Painted

605252612

Unavailable

7

SCREW-HEX.CAP M6X10 - Call your local BRP dealership

M40401

Unavailable

8

SPACER - Call your local BRP dealership

503145600

$14.28

9

Stopper

570025800

Unavailable

10

Washer This part replaces M549493.

549493

Unavailable

11

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

12

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

13

Shock

M23215

Unavailable

14

BLACK SPRING - Call your local BRP dealership

605250051

Unavailable

15

STEERING ARM - Call your local BRP dealership

M5244182

Unavailable

16

Hex. Screw M6 X 25

207162544

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Support Ass'Y This part replaces M5344180.

619380015

Unavailable

18

Screw

M40146

Unavailable

19

Elastic Stop Nut M4

232541414

$0.48

20

Lock Washer 8 mm

234181401

Unavailable

21

Socket Head Screw M8 X 20

205082044

$1.09

22

Cushion

572034500

Unavailable

23

Elastic Flange Nut M10

232501416

Unavailable

24

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Flat Washer 6 mm

234061410

Unavailable

27

Ski | Europe models

505073034

Unavailable

28

Bushing | Europe models

605348392

Unavailable

29

Black, Handle

505070963

Unavailable

30

Hex. Screw M8 X 50

207085044

Unavailable

31

Hex. Screw M8 X 90

207089044

$2.82

32

Flat Washer 8 mm

234081410

Unavailable

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

34

Cover | Model-T3

28056

$5.52

35

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

Unavailable

36

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

37

Rubber Stopper

605348439

Unavailable

38

PLATE SUPPORT - Call your local BRP dealership

605348437

Unavailable

39

Bushing

605448594

Unavailable

40

Ski Axle

505073209

Unavailable

41

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

42

Grease Fitting

M34019

Unavailable
