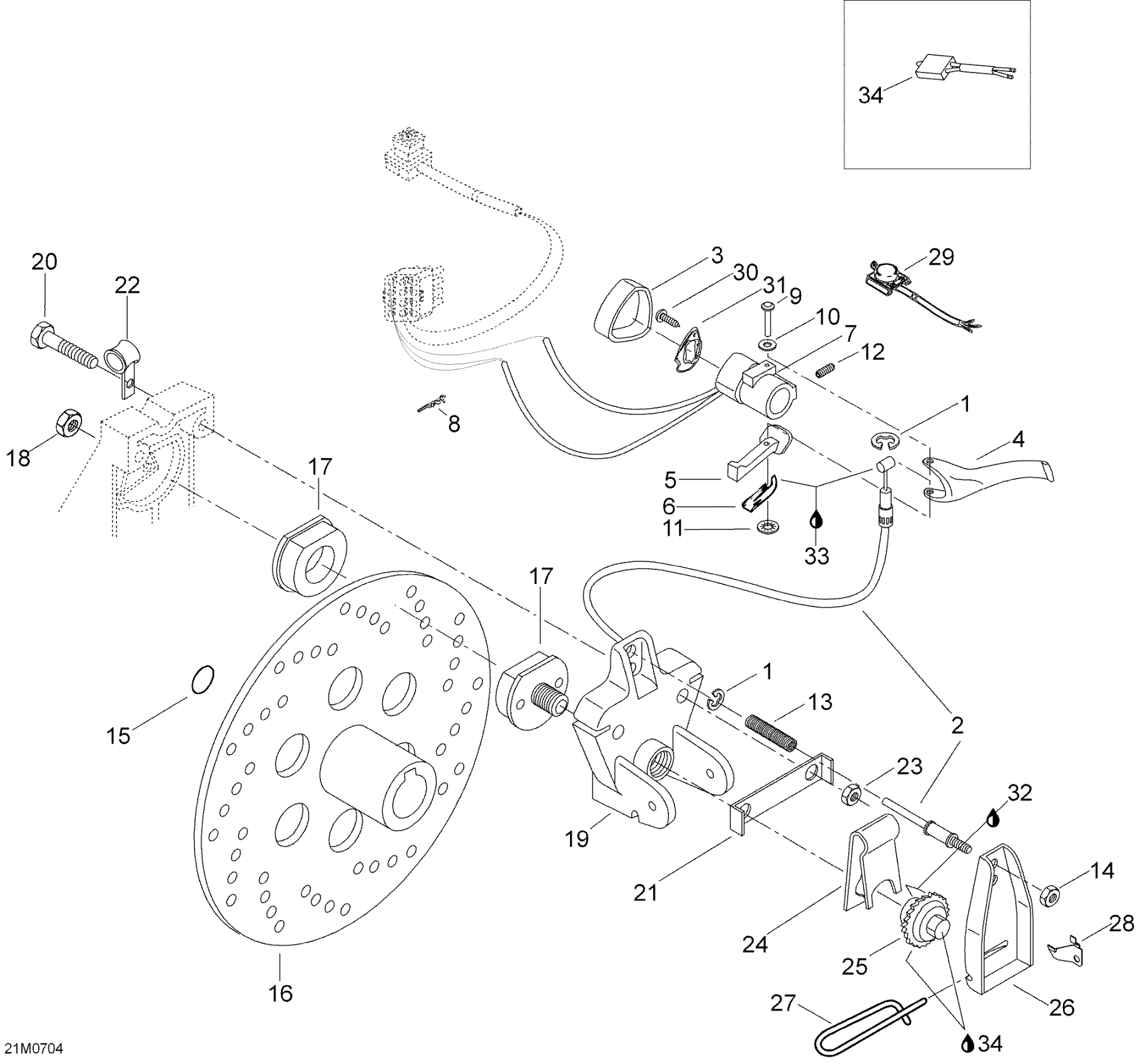

Ski-Doo Skandic LT 440F, 2007 Brakes Diagram
#
Description
Price
1
Circlip
M31038
Unavailable
3
COVER-BRAKE - Call your local BRP dealership
507032311
Unavailable
4
BRAKE HANDLE - Call your local BRP dealership
572025700
Unavailable
5
Brake Lever
572025200
Unavailable
6
SPRING - Call your local BRP dealership
507032317
Unavailable
7
BRAKE HOUSING ASS'Y - Call your local BRP dealership
507032313
Unavailable
8
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
9
PIN - Call your local BRP dealership
517229400
Unavailable
14
Elastic Stop Nut M6
232561414
Unavailable
16
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
17
Pad_Brake Kit - Call your local BRP dealership
860700700
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Machined Caliper
507027600
Unavailable
20
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085596
Unavailable
21
LOCK-TAB - Call your local BRP dealership
507020400
Unavailable
22
Rope Guide
M5446616
Unavailable
23
Hex. Elastic Stop Nut M8
232581414
Unavailable
24
RELEASE SPRING - Call your local BRP dealership
507020200
Unavailable
25
WELDED RATCHET WHEEL - Call your local BRP dealership
507032310
Unavailable
26
LEVER - Call your local BRP dealership
507021500
Unavailable
27
HAIR PIN - Call your local BRP dealership
507032306
Unavailable
28
RATCHET SPRING - Call your local BRP dealership
507009400
Unavailable
29
Dimmer Switch
415085800
Unavailable
30
Screw
211000098
Unavailable
31
Plate
507032328
Unavailable
32
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
33
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
34
Brake Switch
415085700
Unavailable
