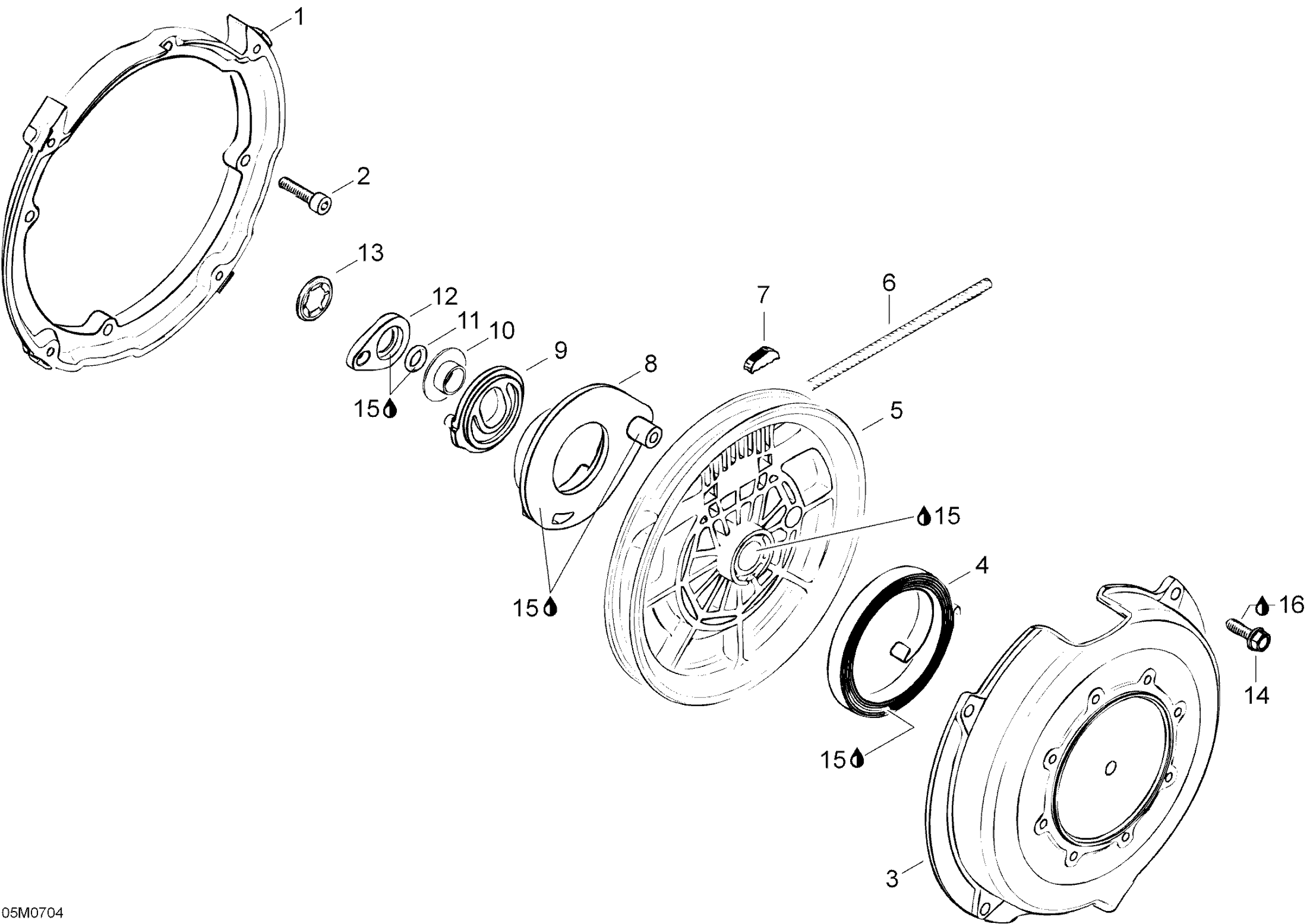

Ski-Doo Skandic LT 440F, 2007 Rewind Starter Diagram
#
Description
Price
1
Flange Connector
420810955
Unavailable
2
Allen Screw M6 x 22 This part replaces 420840401.
420840403
Unavailable
—
Rewind Starter Ass'y | Includes 3 to 13
420888219
Unavailable
3
Rewind Starter Ass'y | Includes 3 to 13
420888219
Unavailable
5
Rope Sheave
420852480
Unavailable
6
Was 412500100 Rope-Starter
219704403
Unavailable
7
Key Clamp
420852070
Unavailable
8
Pawl
420852296
Unavailable
9
PAWL LOCK - Call your local BRP dealership
420852305
Unavailable
10
Stage Sleeve
420847926
Unavailable
11
O-Ring
420250400
Unavailable
12
Lock Ring
420852520
Unavailable
13
Locking Element
420845560
Unavailable
14
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
