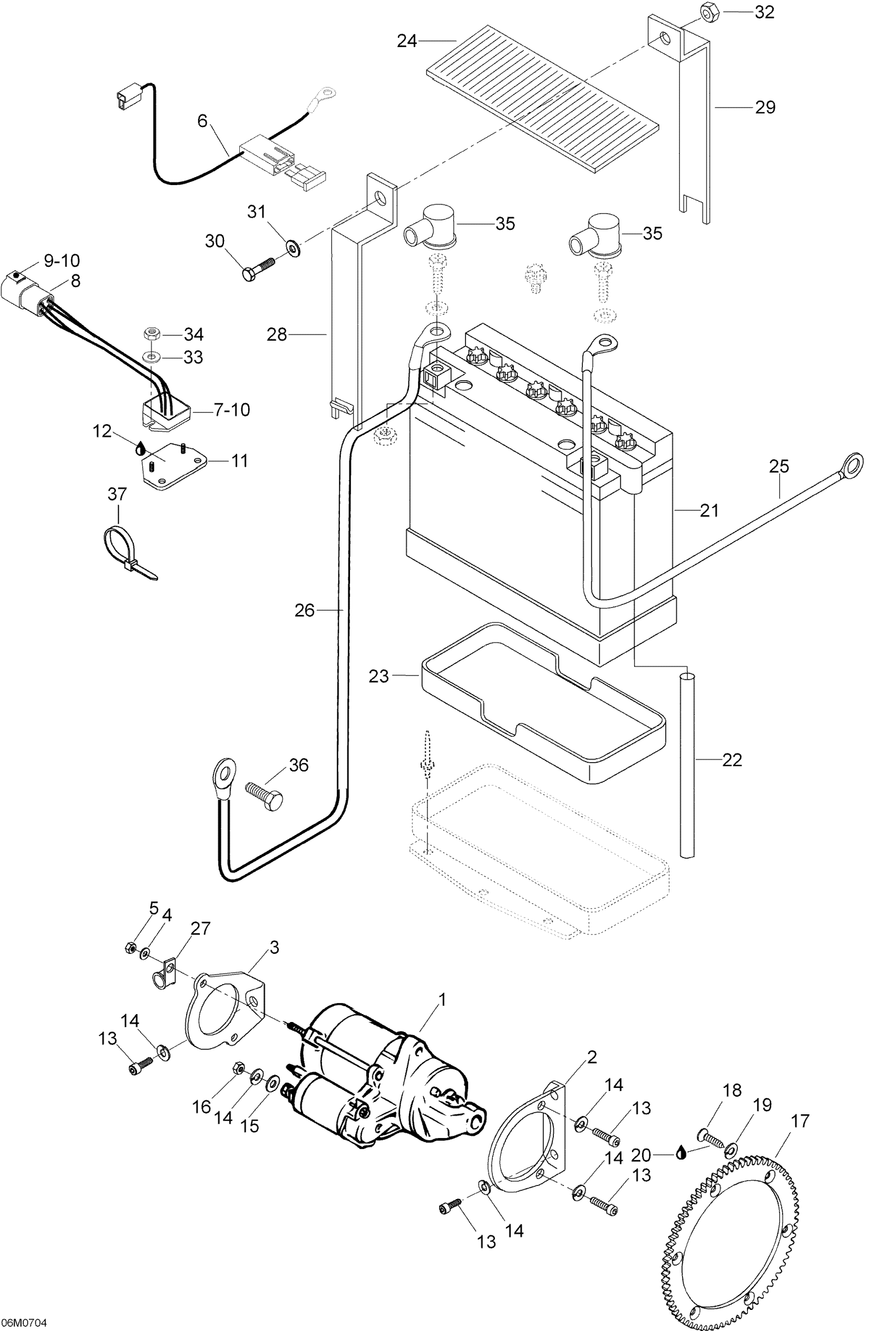

Ski-Doo Skandic LT 440F, 2007 Electric Starter Diagram
#
Description
Price
1
ELECTRIC STARTER ASSY - Call your local BRP dealership
410212400
Unavailable
2
Starter Bracket
M5346654
Unavailable
3
Mag Starter Bracket
M5346655
Unavailable
4
Washer 5,3 mm
20008
Unavailable
5
Elastic Stop Nut M5
232551414
Unavailable
6
Fuse Holder
M5346695
Unavailable
7
Voltage Regulator Ass'y
515175939
Unavailable
8
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
10
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
11
REGULATOR BRACKET - Call your local BRP dealership
605351360
Unavailable
12
Grease Tube Lmz, 400 G
413707500
Unavailable
14
Lock Washer 8 mm
234181401
Unavailable
15
Flat Washer 8 mm
234081410
Unavailable
16
NUT - Call your local BRP dealership
M33003
Unavailable
17
Ring Gear 86Th
417009400
Unavailable
18
Hex. Screw M8 X 16
236281684
Unavailable
19
WASHER - Call your local BRP dealership
M20078
Unavailable
20
Sealant Loctite 648
219703000
Unavailable
21
BATTERY 14AMP - Call your local BRP dealership This part replaces M42215.
42215
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Battery Seat
M5346659
Unavailable
24
Battery Carpet
M5446666
Unavailable
25
BATTERY WIRE - Call your local BRP dealership
605349434
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
CLIP - Call your local BRP dealership
M27092
Unavailable
28
Steel Strip
M5446682
Unavailable
29
Steel Strip
M5446694
Unavailable
30
Hex. Screw M6 X 30
207063044
Unavailable
31
Flat Washer 6 mm
234061410
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Elastic Stop Nut M6
232561414
Unavailable
36
SCREW-M6X12 - Call your local BRP dealership
M40327
Unavailable
