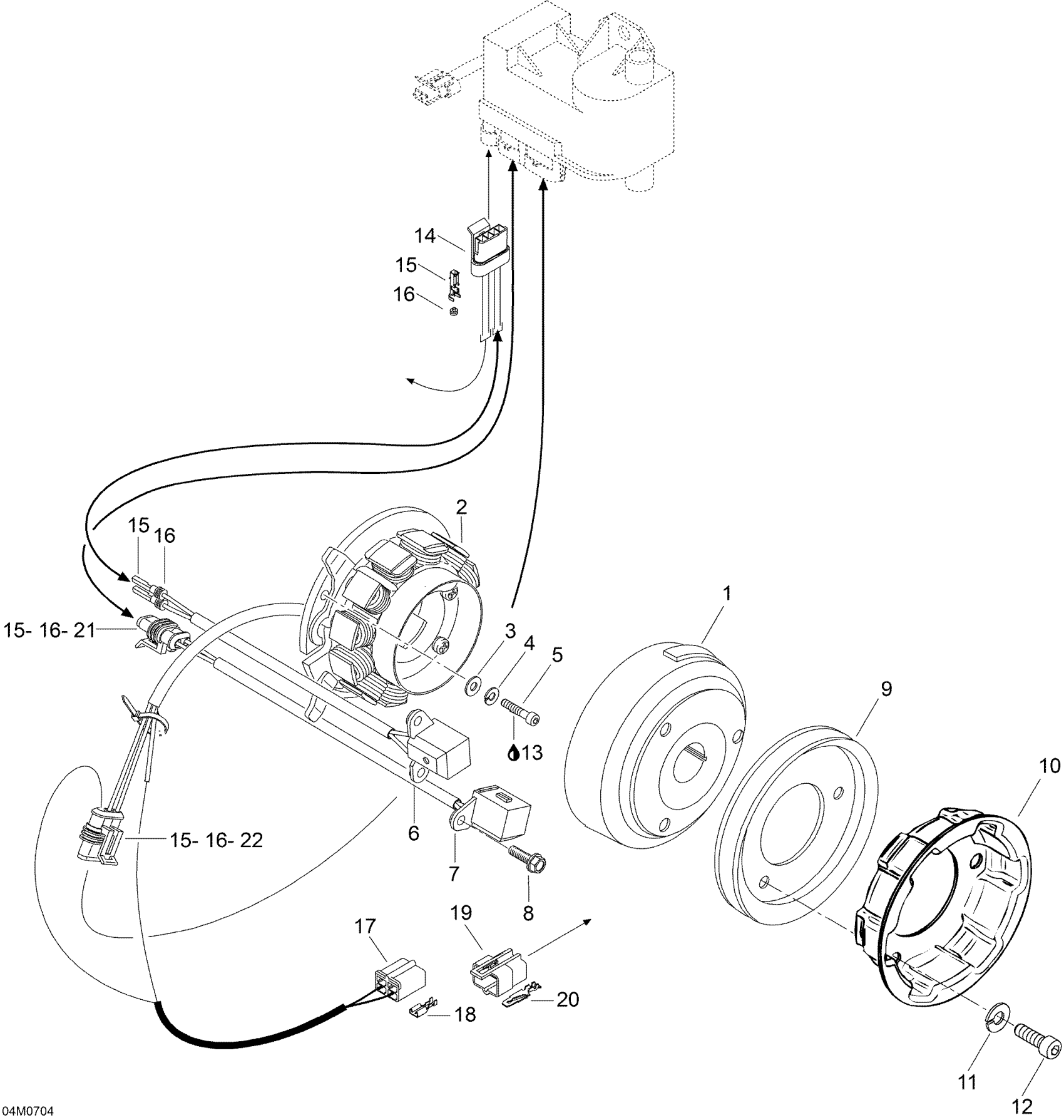

Ski-Doo Skandic LT 440F, 2007 Magneto Diagram
#
Description
Price
1
FLYWHEEL - Call your local BRP dealership
420996823
Unavailable
2
STATOR PLATE A - Call your local BRP dealership
420886603
Unavailable
3
Washer 5.3
420927574
Unavailable
4
Lock Washer
M20013
Unavailable
5
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
6
Pick-Up
420665163
Unavailable
7
PICK-UP - Call your local BRP dealership
420665160
Unavailable
8
Taptite Screw M5 X 16
420941928
Unavailable
9
V-Belt Pulley
420980486
Unavailable
10
Rope Sheave
420852414
Unavailable
11
Lock Washer
420845311
Unavailable
12
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership
420841522
Unavailable
14
Female Housing, 4 Circuits
409209700
Unavailable
15
Female Terminal
278001014
Unavailable
16
Wire Seal
278001013
Unavailable
17
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
18
FEMALE TERMINAL - Call your local BRP dealership
515175253
Unavailable
19
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
20
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
22
Female Housing, 3 Circuits
409209600
Unavailable
