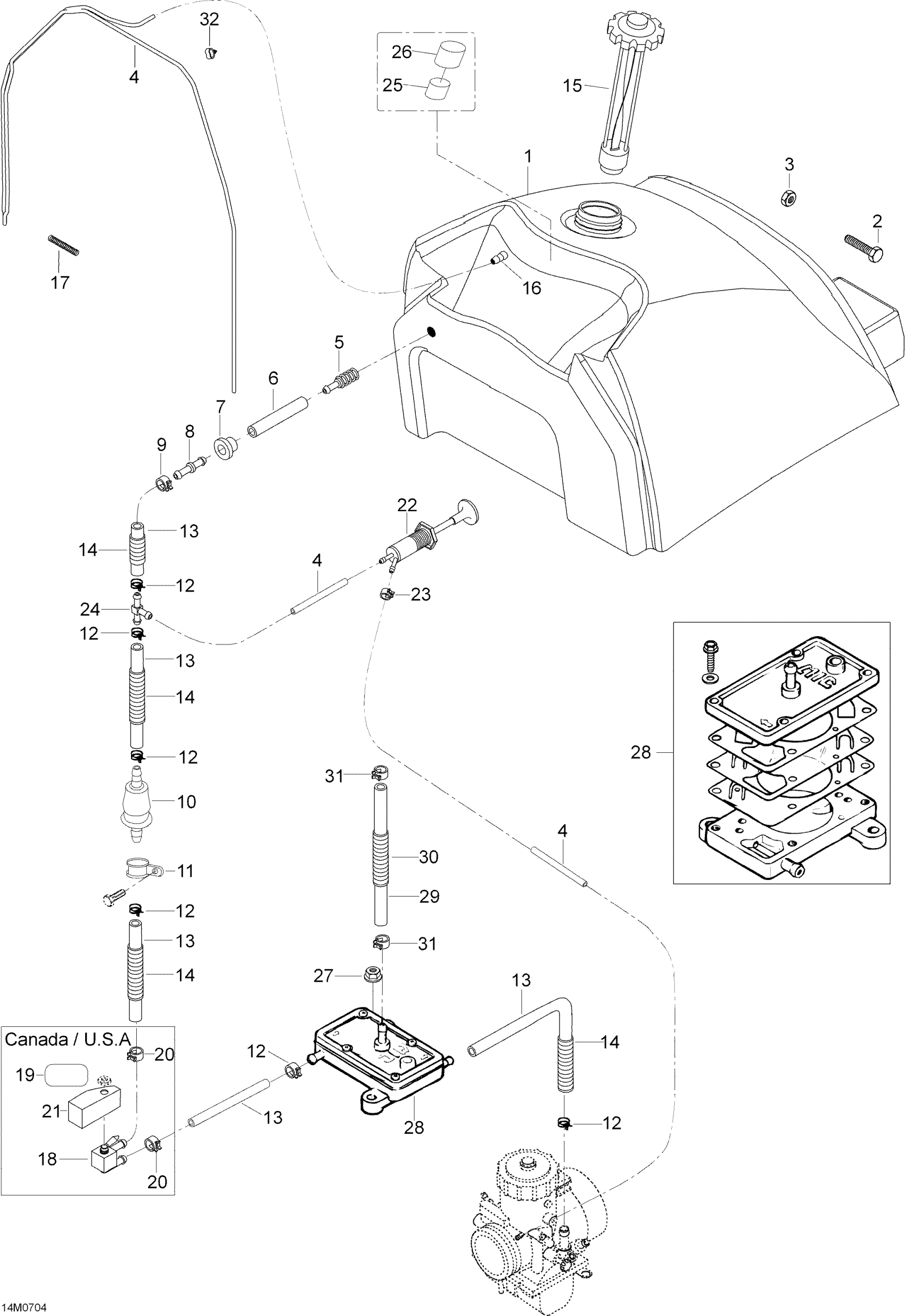

Ski-Doo Skandic LT 440F, 2007 Fuel System Diagram
#
Description
Price
1
Fuel Tank
M5145048
Unavailable
2
Hex. Screw
M40826
Unavailable
3
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
4
HOSE - Call your local BRP dealership
M39035
Unavailable
6
Hose
M39030
Unavailable
7
Grommet
570045500
Unavailable
10
Fuel Filter This part replaces 414363600.
605352516
Unavailable
11
CLAMP - Call your local BRP dealership
M27039
Unavailable
12
Spring Clamp
M27086
Unavailable
13
Hose 5/8 1000MM LONG - Call your local BRP dealership
219704397
Unavailable
14
HOUSING - Call your local BRP dealership
M28012
Unavailable
15
Cap Fuel Tank
605349994
Unavailable
16
NIPPLE - Call your local BRP dealership
404127600
Unavailable
17
SPRING - Call your local BRP dealership
M25006
Unavailable
18
SHUT OFF VALVE - Call your local BRP dealership
414935900
Unavailable
19
Instruction Decal
605452092
Unavailable
21
FASTENING BRACKET - Call your local BRP dealership
605453987
Unavailable
22
Primer
415060500
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
T Fitting
M21067
Unavailable
25
HOLDER - Call your local BRP dealership
M5446811
Unavailable
26
Plug Hose
605450311
Unavailable
27
Elastic Stop Nut M6
232561414
Unavailable
28
FUEL PUMP DF44-226A - Call your local BRP dealership
403800800
Unavailable
29
Polyurethane Hose 10000Mm Long
219704410
Unavailable
30
HOUSING - Call your local BRP dealership
M28015
Unavailable
31
Spring Clamp
414420700
Unavailable
32
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
