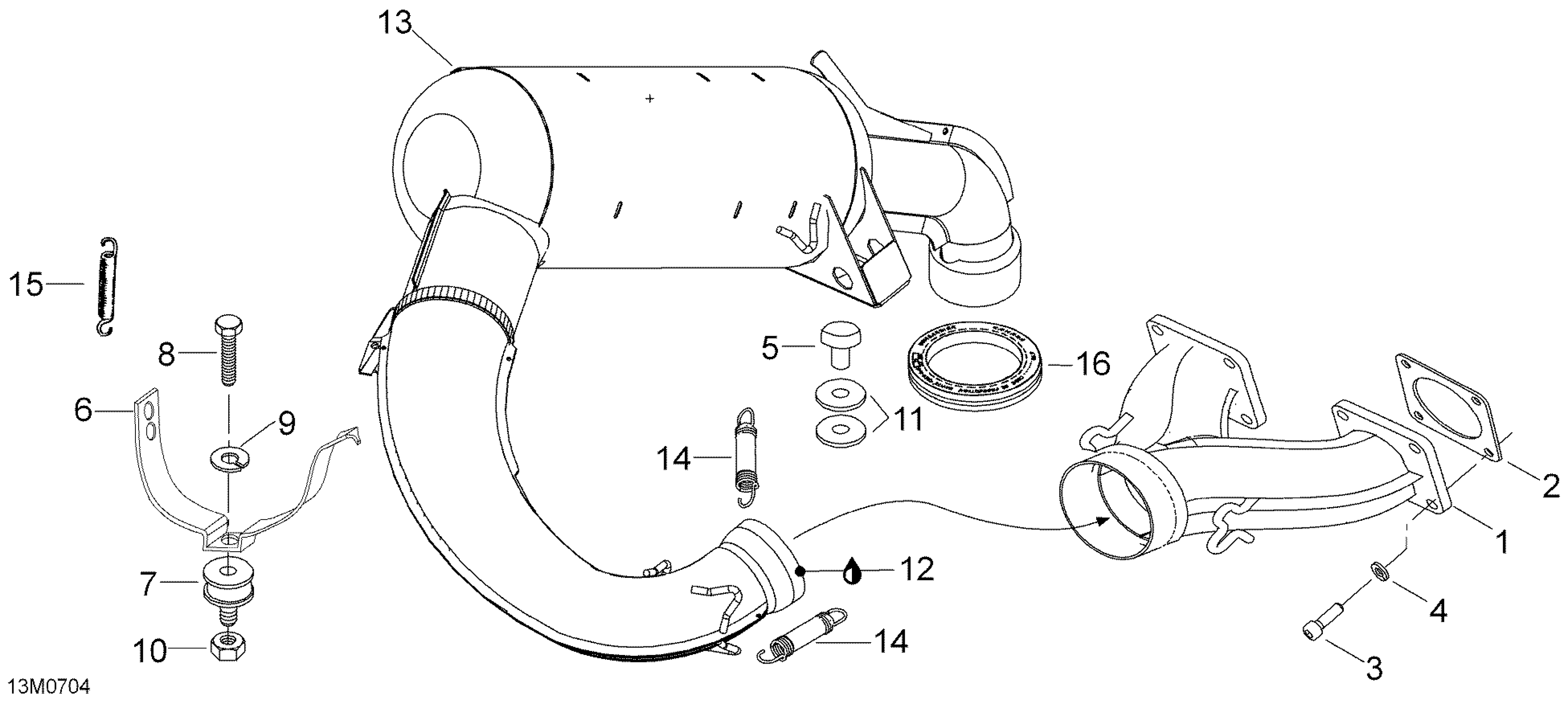

Ski-Doo Skandic LT 440F, 2007 Exhaust System Diagram
#
Description
Price
1
Exhaust Manifold
420879459
Unavailable
2
GASKET - Call your local BRP dealership
420850114
Unavailable
3
Socket Head Screw M8 X 30
M40135
Unavailable
4
Lock Washer 8 mm
234181401
Unavailable
6
Support
M535108
Unavailable
7
Rubber Bumper
M28245
Unavailable
8
Screw
M40034
Unavailable
9
Lock Washer 8 mm
234181401
Unavailable
10
Hex. Elastic Stop Nut M8
232581414
Unavailable
11
M8 Washer This part replaces M20077.
20077
Unavailable
12
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
13
Muffler_Exhaust - Call your local BRP dealership
420979823
Unavailable
14
Spring This part replaces 420938795.
420938796
Unavailable
15
Spring
M543225
Unavailable
16
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
