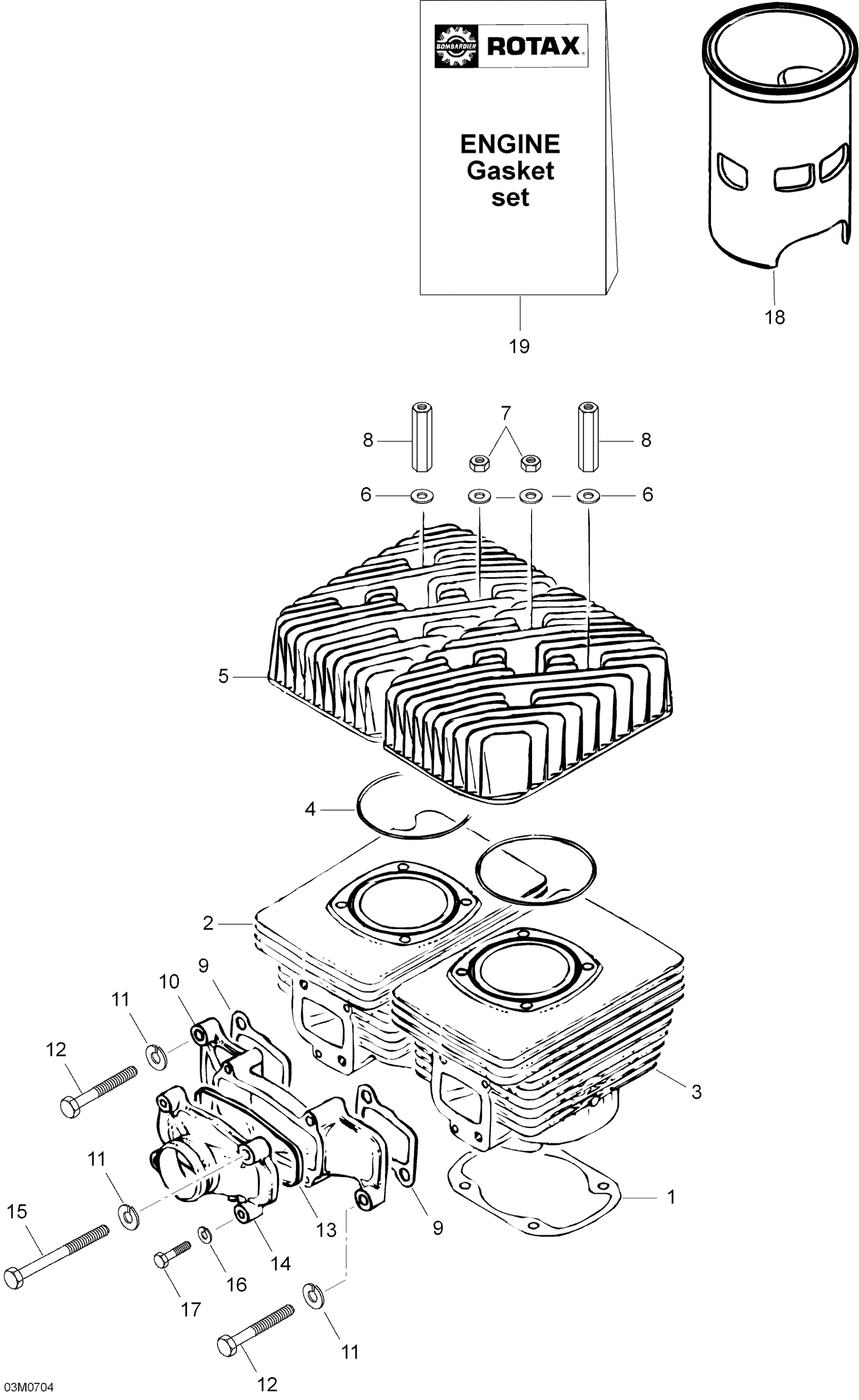

Ski-Doo Skandic LT 440F, 2007 Cylinder and Cylinder Head Diagram
#
Description
Price
1
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
2
CYLINDER WITH SLEEVE PTO SIDE - Call your local BRP dealership
420923791
Unavailable
3
Cylinder Whit Sleeve Mag Side
420923796
Unavailable
4
O-Ring
420931380
Unavailable
5
CYLINDER HEAD - Call your local BRP dealership
420923377
Unavailable
6
Flat Washer 8 mm
234081410
Unavailable
7
Hex. Nut M8
232081414
Unavailable
8
DISTANCE NUT M8 X 51 - Call your local BRP dealership
420842208
Unavailable
9
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Lock Washer 8 mm
234181401
Unavailable
12
Hex. Screw M8 X 35
207083544
Unavailable
13
RUBBER RING - Call your local BRP dealership
420850190
Unavailable
14
Intake Cover-Intake
420867442
Unavailable
15
Hex. Screw M8 X 70
420841201
Unavailable
16
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
17
Hex. Screw M6 X 25
207162544
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
GASKET SET, ENGINE - Call your local BRP dealership
420994232
Unavailable
