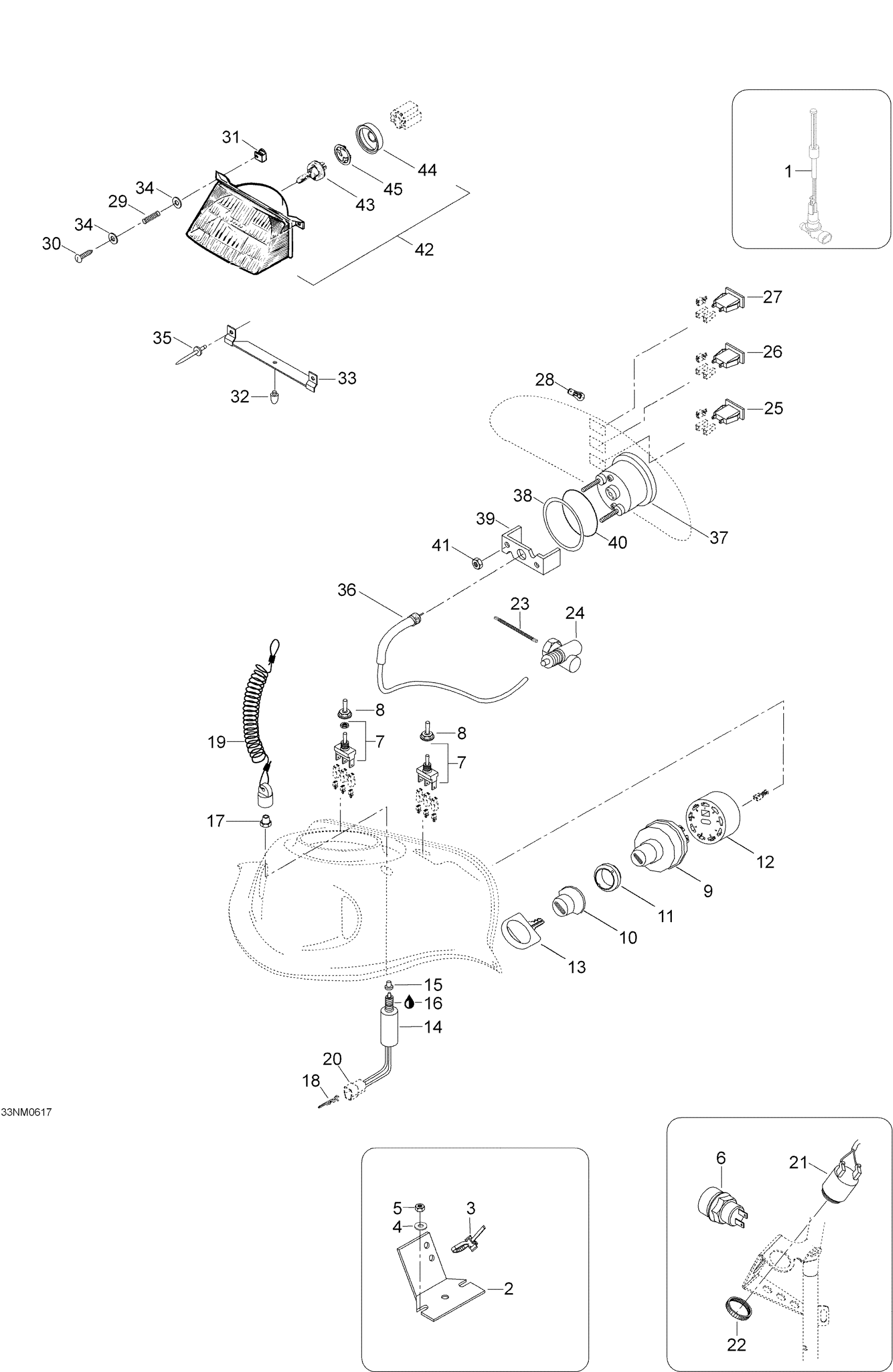

Ski-Doo Skandic LT 440F, 2006 Electrical System Diagram

#

Description
Price

1

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

2

Cooling Plate

605350731

Unavailable

3

Tie-Rap 180 mm

414115200

$0.09

4

Flat Washer 6 mm

234062410

$0.64

5

Elastic Stop Nut M6

232561414

$1.55

6

Push Button

415130372

$124.99

7

Switch (Heating Grip) | FREERIDE

410107300

$34.58

8

Switch Cover

515175281

$15.03

9

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

10

Switch Boot

570013700

$10.82

11

FACE NUT - Call your local BRP dealership

410112100

$14.29

12

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

$8.77

13

Blank Key

415129350

Unavailable

14

Brake Switch

515175653

$15.57

15

Plunger Cap

570151100

$10.14

16

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

17

Switch Nut

515145900

$10.83

18

CONNECTOR - Call your local BRP dealership

605642628

$6.89

19

Cap Ass'y

515178283

$37.66

20

Male Housing

M42268

Unavailable

21

HORN - Call your local BRP dealership

515176035

$83.05

22

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

23

Square Pin Nska L=75Mm This part replaces M45075.

45075

$18.43

24

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$129.20

25

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

26

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

$11.97

27

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

$12.43

28

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

29

Spring

517168600

$6.91

30

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

$1.20

31

Projector Nut

572078600

Unavailable

32

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

33

HOLDER - Call your local BRP dealership

M539864

$18.98

34

Flat Washer M5

234051410

$0.44

35

Rivet

M36489

Unavailable

36

Speedometer Cable

M45006

Unavailable

37

Speedometer Kmh/mph

605152889

Unavailable

38

Washer

517258500

Unavailable

39

Case Holder

414806500

Unavailable

40

O-Ring

414807100

Unavailable

41

NUT M5 - Call your local BRP dealership

M33062

$1.35

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

44

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

45

BULB HOLDER - Call your local BRP dealership

410608300

$9.97
