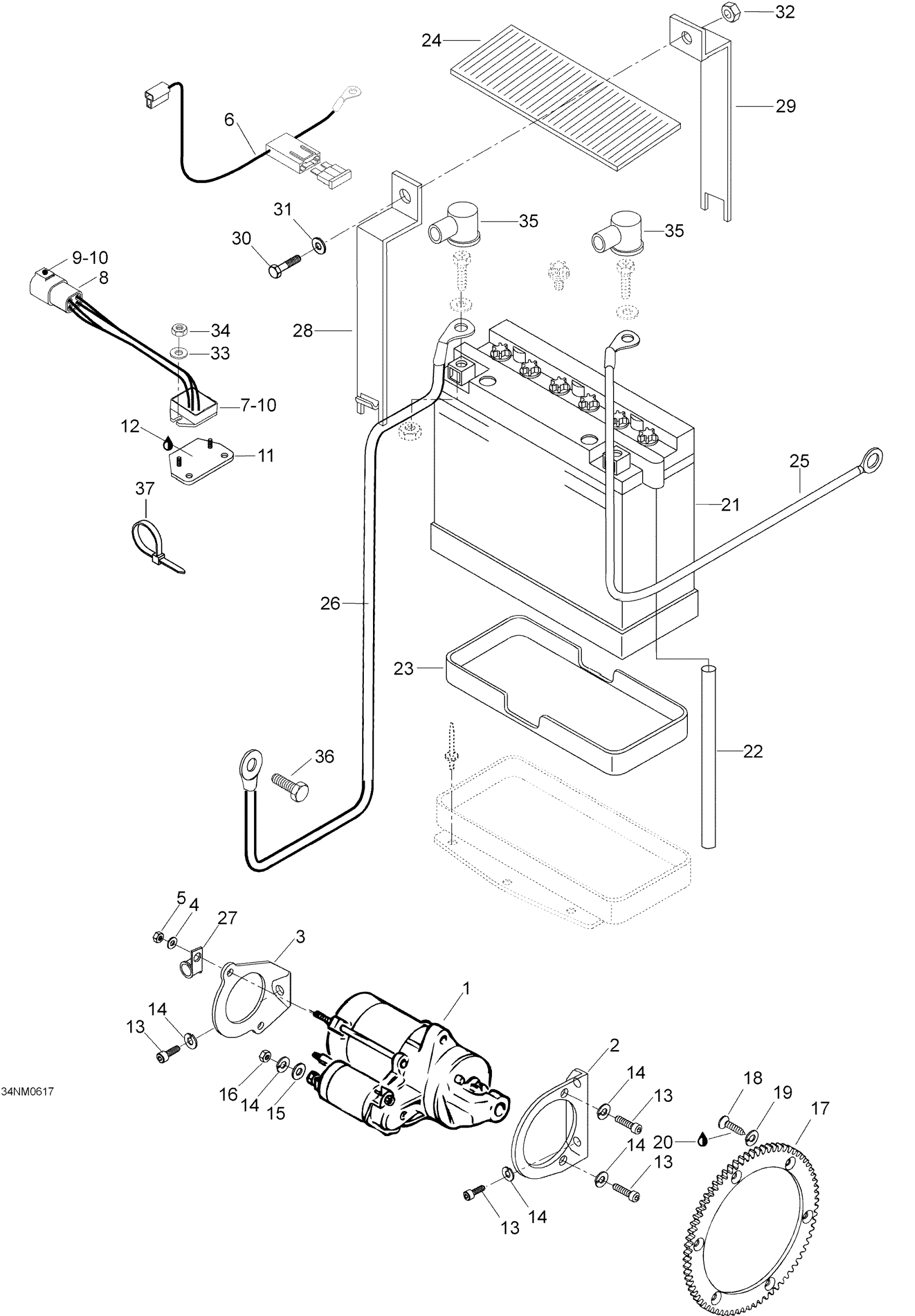

Ski-Doo Skandic LT 440F, 2006 Battery And Starter Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

Unavailable

2

Starter Bracket

M5346654

Unavailable

3

Mag Starter Bracket

M5346655

Unavailable

4

Washer 5,3 mm

20008

$0.70

5

Elastic Stop Nut M5

232551414

$0.82

6

Fuse Holder

M5346695

Unavailable

7

Voltage Regulator Ass'y

515175939

$188.78

8

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

9

Male Terminal

515175568

$7.25

10

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

11

REGULATOR BRACKET - Call your local BRP dealership

605351360

Unavailable

12

Grease Tube Lmz, 400 G

413707500

Unavailable

13

Socket Head Screw M8 X 20

205082044

$1.06

14

Lock Washer 8 mm

234181401

$0.87

15

Flat Washer 8 mm

234081410

$0.79

16

NUT - Call your local BRP dealership

M33003

Unavailable

17

Ring Gear 86Th

417009400

Unavailable

17

RING GEAR (86 TOOTH) - Call your local BRP dealership | Europe

417222860

Unavailable

18

Hex. Screw M8 X 16

236281684

$3.88

19

WASHER - Call your local BRP dealership

M20078

Unavailable

20

Instant Gasket

219701421

$51.99

21

BATTERY 14AMP - Call your local BRP dealership This part replaces M42215.

42215

Unavailable

22

Tube

M39055

Unavailable

23

Battery Seat

M5346659

Unavailable

24

Battery Carpet

M5446666

Unavailable

25

BATTERY WIRE - Call your local BRP dealership

605349434

Unavailable

26

Ground Wire

M549887

Unavailable

27

CLIP - Call your local BRP dealership

M27092

Unavailable

28

Steel Strip

M5446682

Unavailable

29

Steel Strip

M5446694

Unavailable

30

Hex. Screw M6 X 30

207063044

$1.12

31

Flat Washer 6 mm

234061410

$1.19

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

Flat Washer 6 mm

234062410

$0.73

34

Elastic Stop Nut M6

232561414

$1.78

35

Protection Cap

570151000

$17.88

36

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

37

Tie-Rap 180 mm

414115200

$0.10
