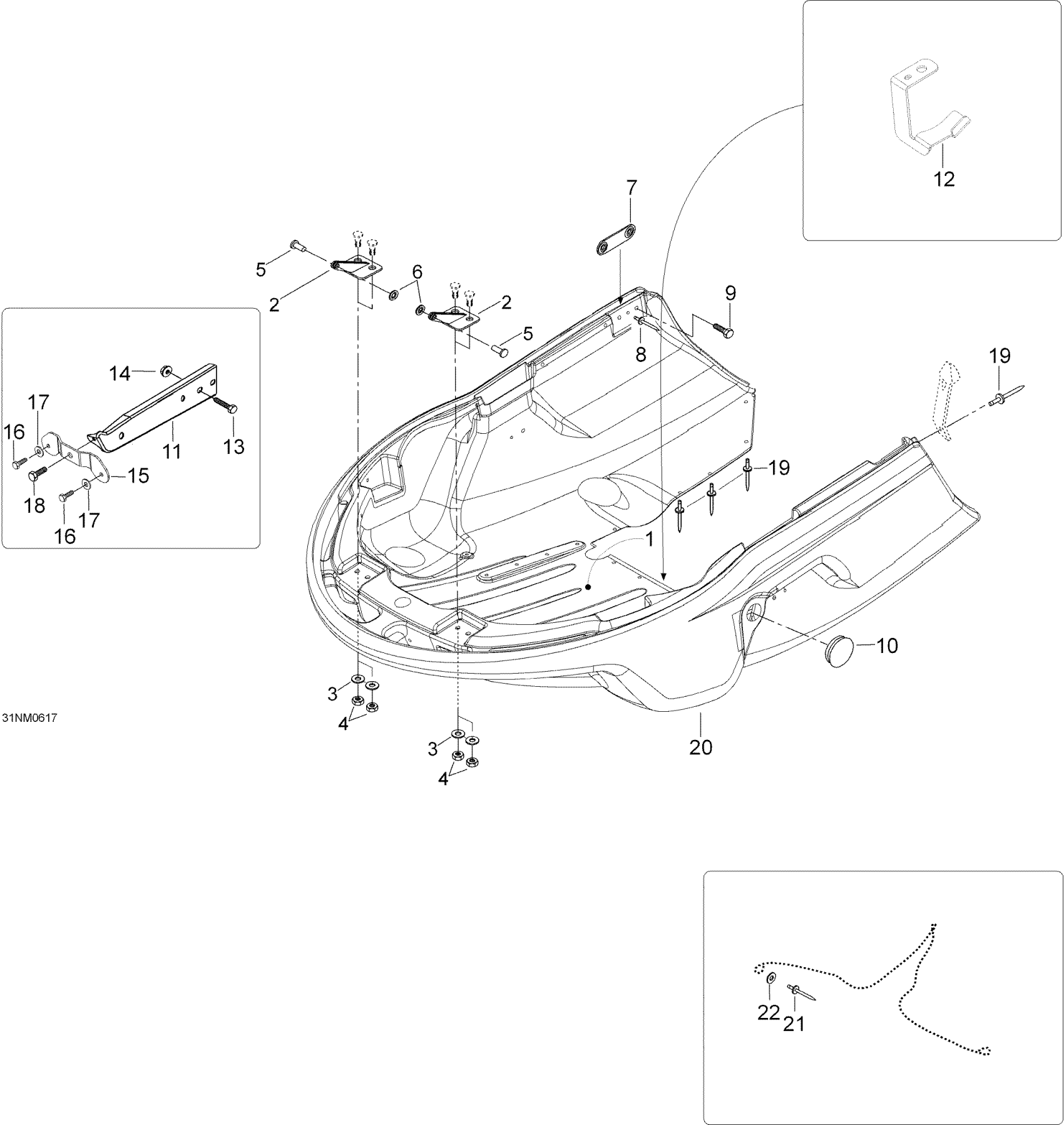

Ski-Doo Skandic LT 440F, 2006 Bottom Pan Diagram

#

Description
Price

1

Sheet-reflector

M5444437

Unavailable

2

Welded Lower Hinge

517289900

Unavailable

3

Flat Washer 6 mm

234062410

$0.64

4

Elastic Stop Nut M6

232561414

Unavailable

5

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

6

Push Nut

389804300

$0.43

7

Side Bracket

M5446213

Unavailable

8

Rivet This part replaces M36009.

36009

Unavailable

9

Screw

M40377

Unavailable

10

Bottom Pan Cap

570277300

Unavailable

11

Front Support

M5246183

Unavailable

12

LH BRACKET - Call your local BRP dealership

605351521

Unavailable

12

RH BRACKET - Call your local BRP dealership

605351520

Unavailable

13

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

Unavailable

15

BOTTOM PAN FRONT - Call your local BRP dealership

605352393

Unavailable

16

Forming Screw M5 x 16

250000676

$0.83

17

Washer

20117

$5.22

18

Screw

M40377

Unavailable

19

Black, Rivet

M36036

Unavailable

20

Bottom Pan

605153168

Unavailable

21

Rivet This part replaces M36009.

36009

Unavailable

22

Washer 5,3 mm

20008

Unavailable
