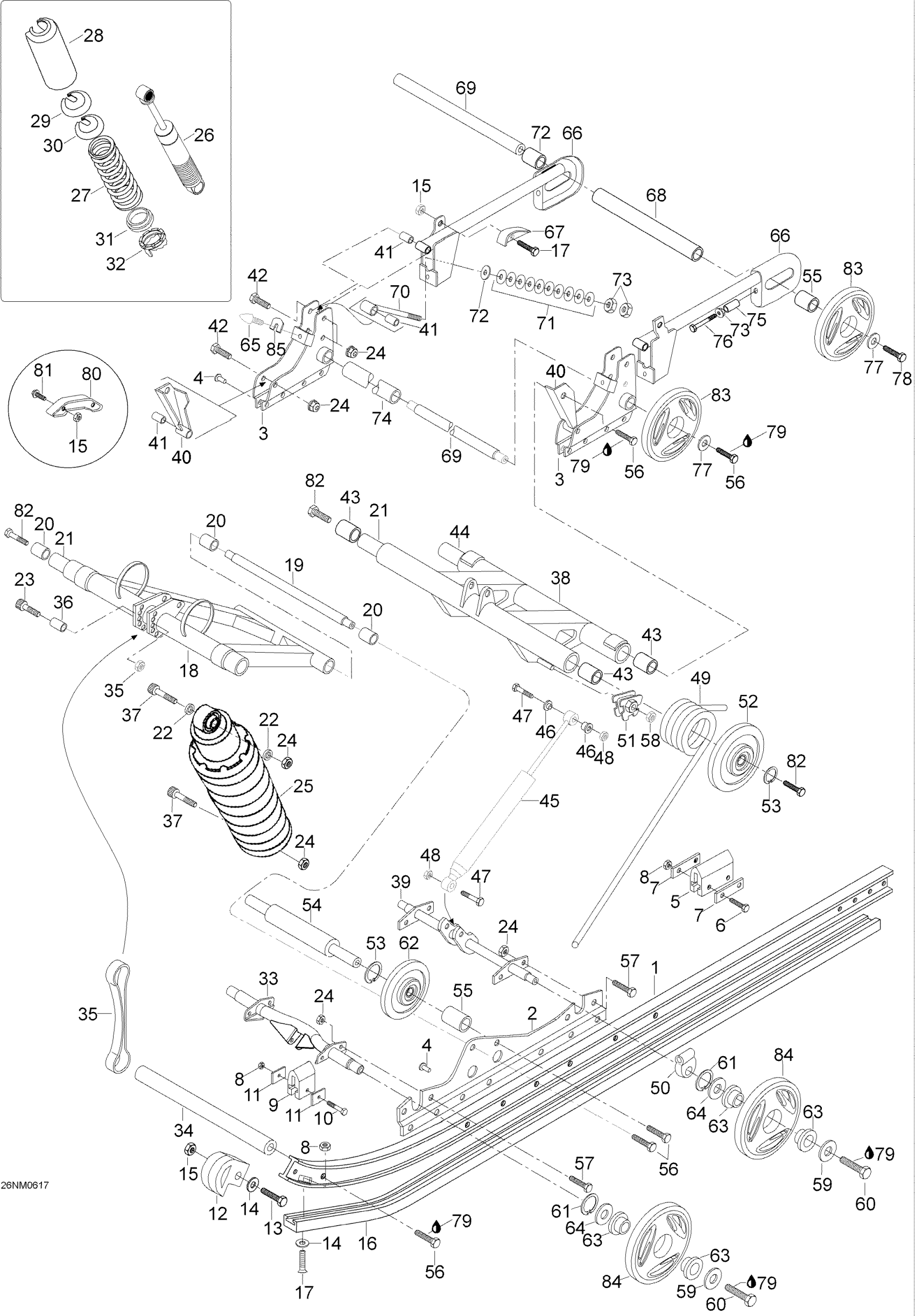

Ski-Doo Skandic LT 440F, 2006 Rear Suspension Diagram

#

Description
Price

-

Not Available As Spare Part - Friction Washer

Unavailable

-

Not Available As Spare Part - Friction Washer

Unavailable

1

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

$222.28

2

PLATE RH - Call your local BRP dealership

605350393

Unavailable

2

PLATE LH - Call your local BRP dealership

605350392

Unavailable

3

Support For Rearaxle Rh This part replaces M539673.

539673

$83.82

3

Support For Rearaxle Lh This part replaces M539672.

539672

$83.82

4

RIVET - Call your local BRP dealership

M544212

Unavailable

5

RUBBER STOPPER - Call your local BRP dealership

570023100

$15.35

6

Hex. Screw M6 X 40

207064044

$1.48

7

Washer

M548387

Unavailable

8

Elastic Stop Nut M6

232561414

$1.55

9

STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.

5442328

$6.75

10

Hex. Screw M6 X 30

207063044

$0.98

11

Plate

M548470

Unavailable

12

Runner Protector

605348954

$17.66

13

Hex. Screw M6 X 25

207162544

$1.05

14

Flat Washer 6 mm

234061410

$1.04

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Runner Shoe

M549582

$33.05

17

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

18

FRONT ARM WELDING - Call your local BRP dealership

605350283

Unavailable

19

AXLE - Call your local BRP dealership

M548944

Unavailable

20

Bearing This part replaces M31023.

31023

$12.28

21

Arm Shaft This part replaces M538945.

538945

$72.28

22

BUSHING - Call your local BRP dealership

605450783

Unavailable

23

Allen Screw M8 X 45

M40828

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Shock Central

M23218

Unavailable

27

Black Spring

M25068

Unavailable

28

Protector

503193663

$35.35

29

Spring Stopper

706200881

$10.30

30

Cap

706200785

$4.42

31

SPRING GUIDE - Call your local BRP dealership

M23177001

Unavailable

32

CAM - Call your local BRP dealership

M23176001

Unavailable

33

Front Idler Axe

605352269

Unavailable

34

Cross Shaft

M546599

Unavailable

35

STOPPER STRAP - Call your local BRP dealership

M5445988

Unavailable

36

Sleeve

M546065

Unavailable

37

Hex. Screw M8 X 45

207084544

$1.25

38

REAR ARM WELDING - Call your local BRP dealership

605350729

Unavailable

39

REAR IDLER AXEL - Call your local BRP dealership

605352278

Unavailable

40

Crank Arm Lh This part replaces M5440349.

5440349

$72.28

40

Crank Arm R.H. This part replaces M5440350.

5440350

$83.82

41

Spacer This part replaces M545758.

545758

$26.12

42

Hex. Screw M8 X 45

207084544

$1.25

43

Bearing This part replaces M31023.

31023

$12.28

44

Swing Shaft This part replaces M548946.

548946

$61.51

45

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

46

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

47

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

48

Elastic Locking Nut M10 X 1.5

233601416

$1.68

49

Spring L.H. This part replaces M538805.

538805

Unavailable

49

Spring R.H. This part replaces M538806.

538806

Unavailable

50

Spring Support

M548804

Unavailable

51

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

51

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

52

Thin Wheel 165

503189478

$49.97

53

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.29

54

Support Shaft

M5445985

Unavailable

55

Sleeve L=29

M5444098

Unavailable

56

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

57

Hex. Screw M8 x 16

207181644

$0.87

58

Hex. Flange Elastic Nut M8

233281414

$1.14

59

Washer

503183100

$3.08

60

Hex. Screw

M40337

Unavailable

61

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.28

62

Wheel 135

503191029

$32.28

63

Cushion

503189534

$4.55

64

SHIM - Call your local BRP dealership

M31091

Unavailable

65

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

66

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

66

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

67

Protector

M548262

Unavailable

68

SLEEVE - Call your local BRP dealership

M5346739

Unavailable

69

Shaft

M5445986

Unavailable

70

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

71

Cup Spring This part replaces M25004.

25004

$3.43

72

Flat Washer 10 mm This part replaces M20011.

234002410

$1.25

73

Hex. Nut M10 X 1.5

232006414

$1.11

74

SLEEVE L=176 - Call your local BRP dealership

M542105

Unavailable

75

Spacer

605633002

$1.48

76

SCREW - Call your local BRP dealership

M40239

Unavailable

77

Washer

503183300

$5.68

78

Hex. Screw With Nylon Patch

M40050

Unavailable

79

Loctite 243, 10 ml

293800060

$20.77

80

Sliding Pad

503192731

Unavailable

81

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

82

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

Unavailable

83

Wheel 135, Yellow

503190785

$32.28

84

Wheel 165 mm Yellow

503190817

$49.97

85

Adjustment Plate This part replaces M5440645.

5440645

$13.95
