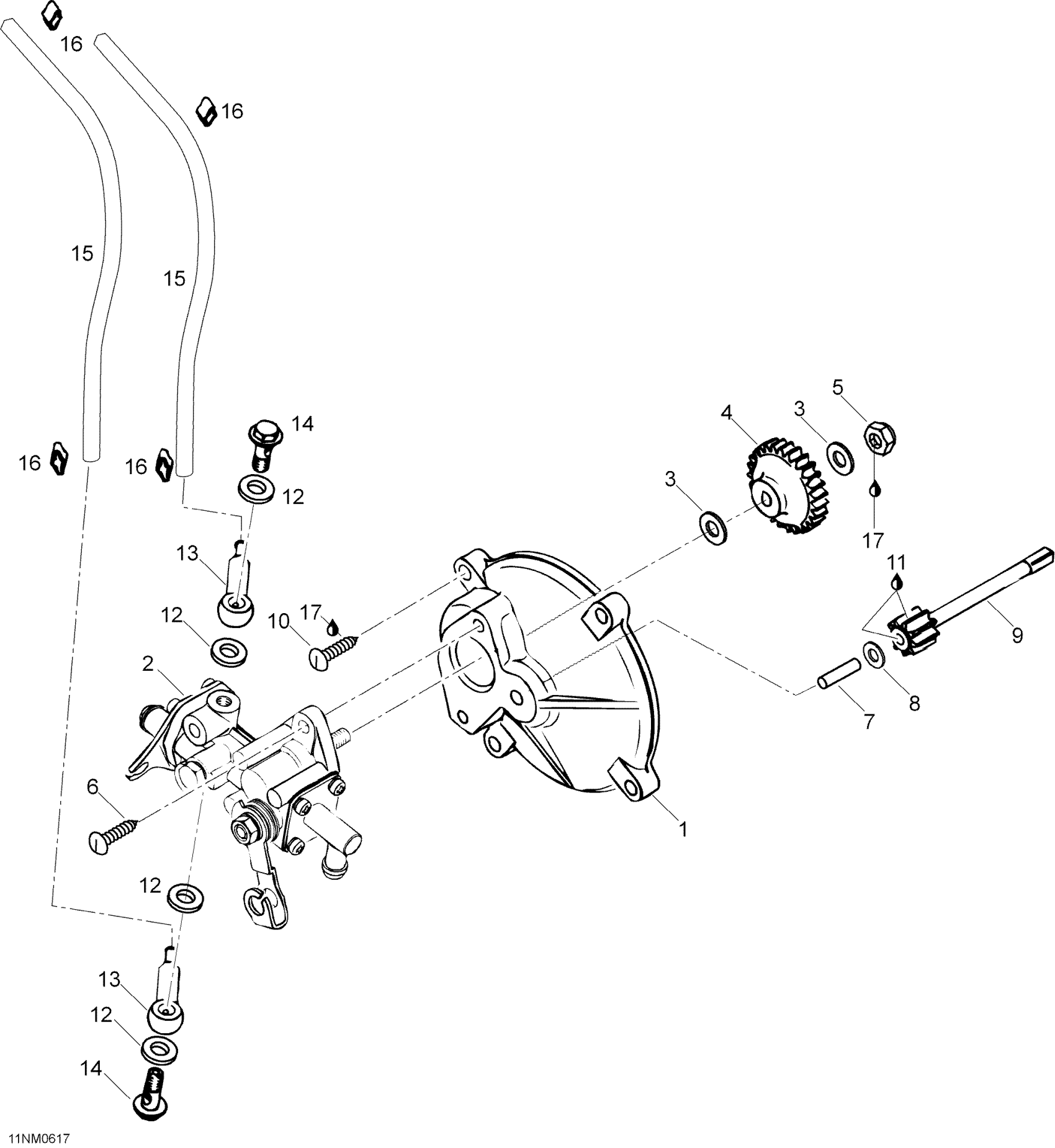

Ski-Doo Skandic LT 440F, 2006 Oil Pump Diagram
#
Description
Price
1
PUMP MOUNTING FLANGE - Call your local BRP dealership
420910160
Unavailable
2
OIL PUMP ASS?Y - Call your local BRP dealership
420887996
Unavailable
3
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
4
Oil Pump Gear, 27 Teeth
420935930
Unavailable
5
Elastic Stop Nut M6
232561414
Unavailable
6
Screw
420841971
Unavailable
7
NEEDLE PIN - Call your local BRP dealership
420832260
Unavailable
8
Flat Washer 4
420244072
Unavailable
9
Gear, 9 Teeth
420935970
Unavailable
10
SCREW - Call your local BRP dealership
420841976
Unavailable
12
Sealing Washer
404146600
Unavailable
13
Valve Ass’Y
420956010
Unavailable
14
Banjo Bolt M6 X 16
404146800
Unavailable
15
Oil Hose 1500Mm Long
219704404
Unavailable
16
Clamp
420853840
Unavailable
