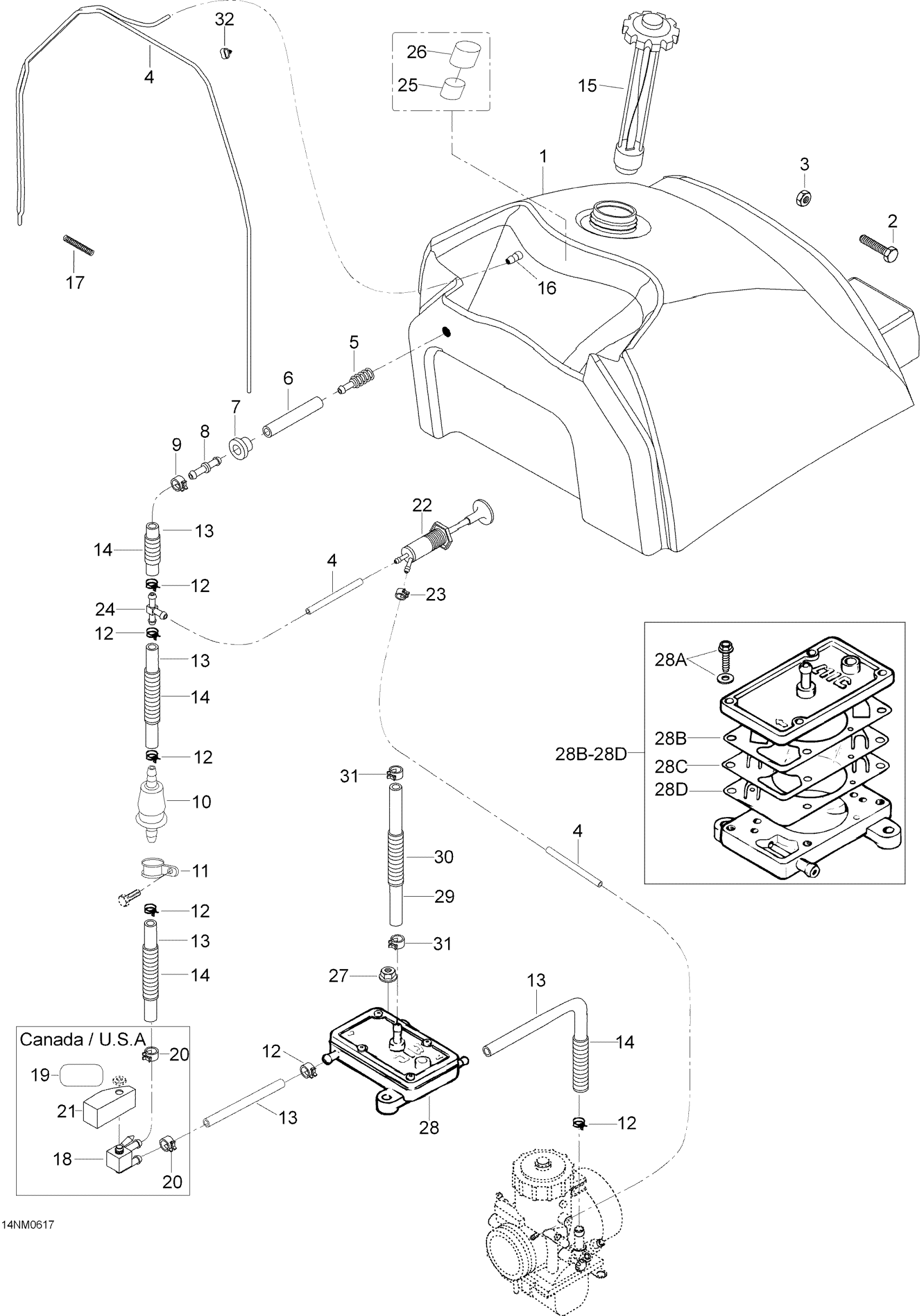

Ski-Doo Skandic LT 440F, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M5145048

Unavailable

2

Hex. Screw

M40826

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

Fuel Filter

414865700

$9.63

6

Hose

M39030

Unavailable

7

Grommet

570045500

$6.13

8

Male Connector

414518500

$4.01

9

Spring Clamp

414554800

$0.81

10

Fuel Filter This part replaces 414363600.

605352516

$17.13

11

CLAMP - Call your local BRP dealership

M27039

Unavailable

12

Spring Clamp

M27086

Unavailable

13

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

14

HOUSING - Call your local BRP dealership

M28012

Unavailable

15

Cap Fuel Tank

605349994

$60.42

16

NIPPLE - Call your local BRP dealership

404127600

Unavailable

17

SPRING - Call your local BRP dealership

M25006

Unavailable

18

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

19

Instruction Decal

605452092

Unavailable

20

Spring Clamp

414554800

$0.81

21

Fastening Bracket | Canada / U.S.A

605451399

Unavailable

22

Primer

415060500

$32.06

23

Clamp-spring

M543230

Unavailable

24

T Fitting

M21067

Unavailable

25

HOLDER - Call your local BRP dealership

M5446811

Unavailable

26

Plug Hose

605450311

Unavailable

27

Elastic Stop Nut M6

232561414

$1.78

28

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

Unavailable

28A

Screw

404118500

Unavailable

-

Not Available As Spare Part - Friction Washer

Unavailable

28B

Gasket

420831935

Unavailable

28C

Pump-diaphragm

420861137

Unavailable

28D

Pump Case Gasket

420861135

Unavailable

29

Polyurethane Hose 10000Mm Long

219704410

$52.96

30

HOUSING - Call your local BRP dealership

M28015

Unavailable

31

Spring Clamp

414420700

$0.66

32

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable
