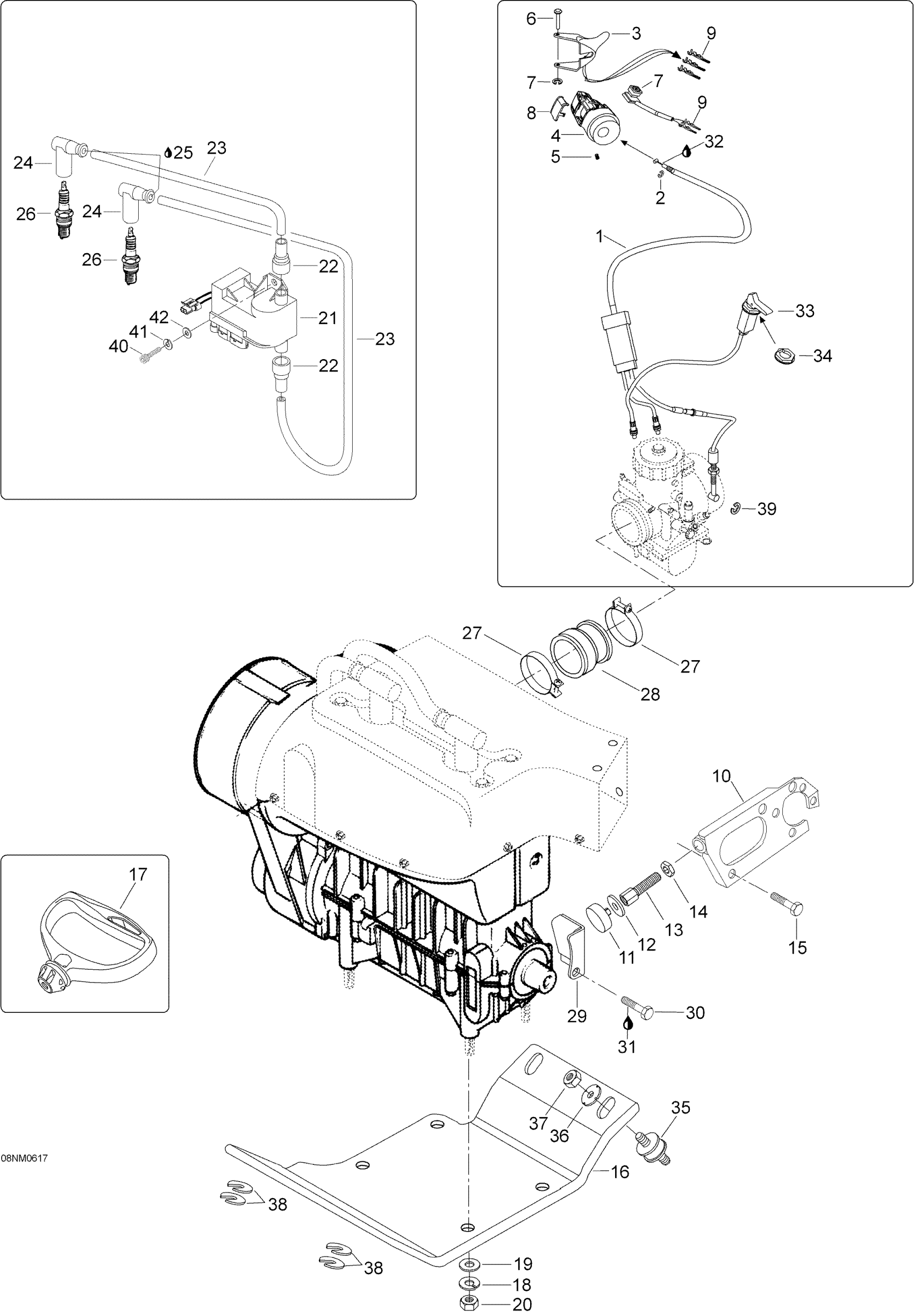

Ski-Doo Skandic LT 440F, 2006 Engine And Engine Support Diagram

#

Description
Price

1

Throttle Cable This part replaces M5145673.

5145673

Unavailable

2

Circlip

M31038

Unavailable

3

Handle Ass'y

512060214

Unavailable

4

Throttle Handle Housing

572100900

Unavailable

5

Lever Pin

414438700

$11.14

6

Circlip | Model-RS

414439000

Unavailable

7

Kill Switch

515175410

Unavailable

8

Switch Cover

572100901

Unavailable

9

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

10

PLATE SUPPORT - Call your local BRP dealership

605350127

Unavailable

11

STOPPER - Call your local BRP dealership

512059710

Unavailable

12

Washer

M20028

Unavailable

13

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

14

Hex. Jam Nut

M33218

Unavailable

15

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

16

SUPPORT-ENGINE - Call your local BRP dealership

M5246291

Unavailable

17

Starter Grip

572084400

Unavailable

18

Lock Washer

M20047

Unavailable

19

WASHER M10 - Call your local BRP dealership

20005

Unavailable

20

Hex. Nut M10 X 1.5

232006414

$1.11

21

Electronic Box | Includes 21 to 25 This part replaces M42507.

42507

$489.99

22

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

23

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

24

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

26

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

27

GEMI CLAMP - Call your local BRP dealership

512059005

Unavailable

28

Flange

420867481

Unavailable

29

Welded Stopper Plate

M5344446

Unavailable

30

Hex. Screw M8 x 16

207181644

$0.87

31

Loctite 243, 10 ml

293800060

$20.77

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

CABLE-CHOKE - Call your local BRP dealership | Includes 33 to 34

M524046

Unavailable

34

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

35

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

36

Lock Washer

512056700

Unavailable

37

Elastic Locking Nut M10 X 1.5

233601416

$1.68

38

Washer

M546221

Unavailable

39

Circlip

414753500

$0.59

40

SCREW - Call your local BRP dealership

M40332

Unavailable

41

Lock Washer M6, Black

234161471

$0.52

42

Flat Washer 6 mm

234061410

Unavailable
