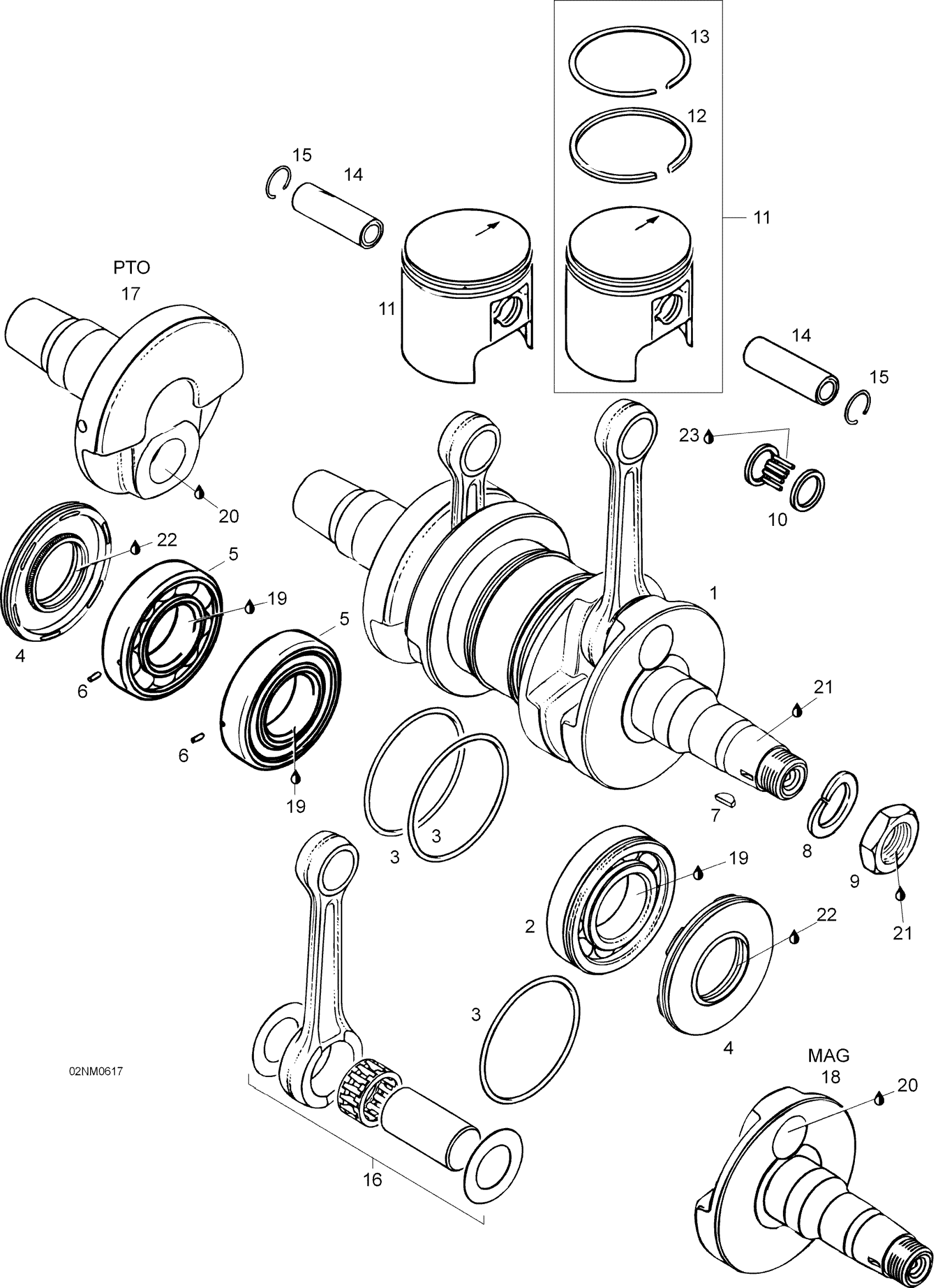

Ski-Doo Skandic LT 440F, 2006 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft | Includes 1 to 7

420889630

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$33.77

3

O-Ring, 64 mm X 2 mm

293300022

$10.58

4

Oil Seal This part replaces 290831952.

420831952

$14.27

5

BALL BEARING - Call your local BRP dealership

420832574

$32.47

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$1.99

8

Lock Washer, 22 mm

420945759

$1.55

9

Hex. Nut, M22 X 1.5

420842239

$14.27

10

NEEDLE BEARING - Call your local BRP dealership

420832325

$26.89

11

PISTON - Call your local BRP dealership | Includes 11 to 13

420887485

Unavailable

11

PISTON - Call your local BRP dealership | Includes 11 to 13

420887486

Unavailable

11

PISTON - Call your local BRP dealership | Includes 11 to 13

420887487

Unavailable

12

RING R 67.5 - Call your local BRP dealership

420915960

$16.12

12

RING R 67.75 - Call your local BRP dealership

420915961

$33.05

12

RING R 68 - Call your local BRP dealership

420915962

$33.05

13

RING L 67.5 - Call your local BRP dealership

420915845

Unavailable

13

RING L 67.75 - Call your local BRP dealership

420915846

$43.82

13

RING L 68.0 - Call your local BRP dealership

420915847

$43.82

14

PISTON PIN - Call your local BRP dealership

420916136

$21.49

15

Piston Circlip

420945735

$3.93

16

Rod Repair Kit

420889634

$181.51

17

PTO Side Crankshaft

420818204

Unavailable

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

20

Sealant Loctite 648

219703000

$35.72

21

Loctite 243, 10 ml

293800060

$20.77

22

Dow Corning 111, 150 g

413707000

$57.82

23

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74
