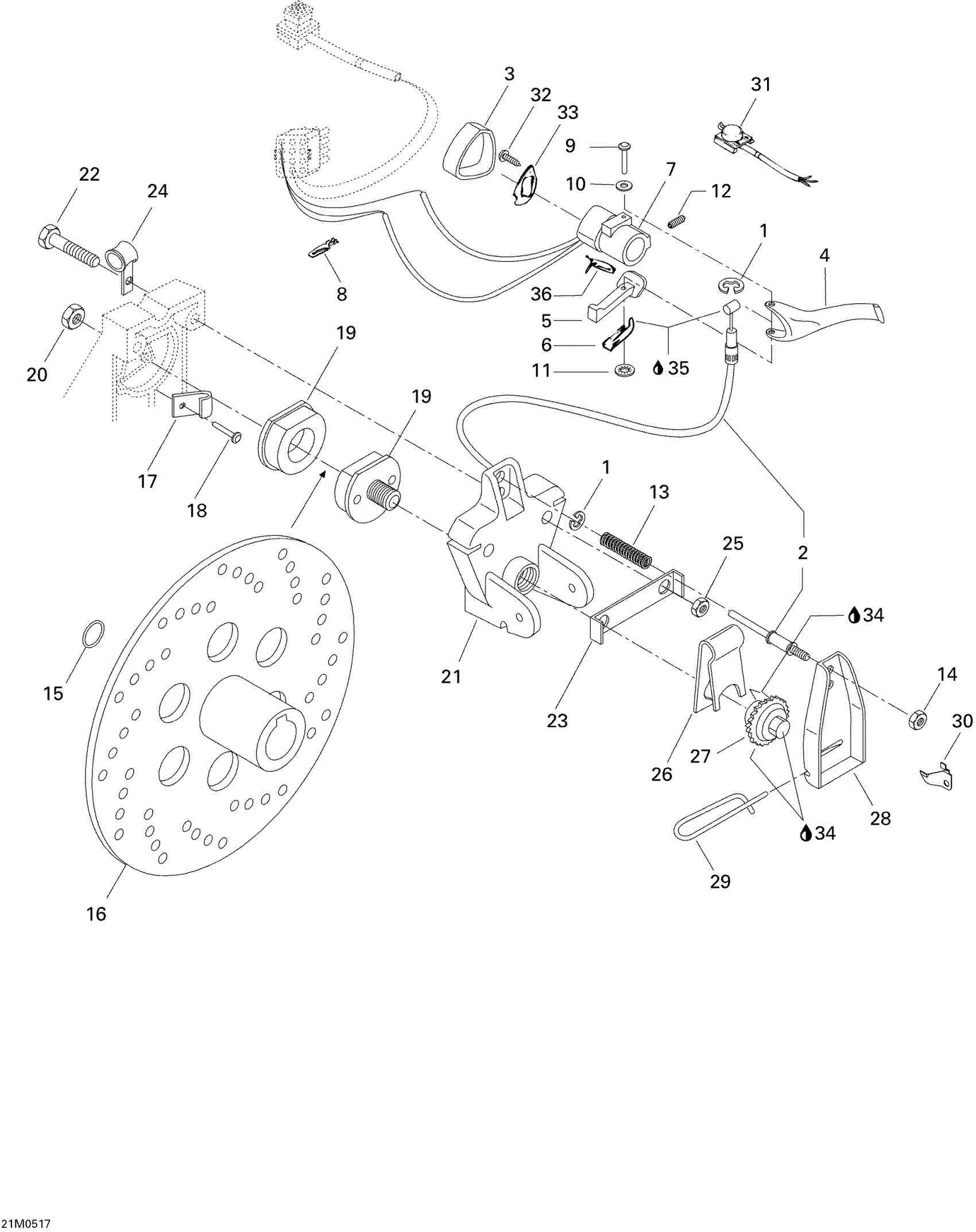

Ski-Doo Skandic LT 440F, 2005 Brake Diagram
#
Description
Price
1
Circlip
M31038
Unavailable
3
BRAKE COVER - Call your local BRP dealership
572073800
Unavailable
4
BRAKE HANDLE - Call your local BRP dealership
572025700
Unavailable
5
Brake Lever
572025200
Unavailable
6
SPRING - Call your local BRP dealership
507032317
Unavailable
7
BRAKE HOUSING ASS'Y - Call your local BRP dealership
507032313
Unavailable
8
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
9
PIN - Call your local BRP dealership
517229400
Unavailable
14
Elastic Stop Nut M6
232561414
Unavailable
16
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
17
WEAR INDICATOR - Call your local BRP dealership
507022600
Unavailable
18
Rivet
M36489
Unavailable
19
Pad_Brake Kit - Call your local BRP dealership
860700700
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Machined Caliper
507027600
Unavailable
22
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085596
Unavailable
23
LOCK-TAB - Call your local BRP dealership
507020400
Unavailable
24
Rope Guide
M5446616
Unavailable
25
Hex. Elastic Stop Nut M8
232581414
Unavailable
26
RELEASE SPRING - Call your local BRP dealership
507020200
Unavailable
27
WELDED RATCHET WHEEL - Call your local BRP dealership
507032310
Unavailable
28
LEVER - Call your local BRP dealership
507021500
Unavailable
29
HAIR PIN - Call your local BRP dealership
507032306
Unavailable
30
RATCHET SPRING - Call your local BRP dealership
507009400
Unavailable
31
Dimmer Switch
415085800
Unavailable
32
Screw
211000098
Unavailable
33
LH Plate
572086600
Unavailable
34
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
35
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
36
Brake Switch
415085700
Unavailable
