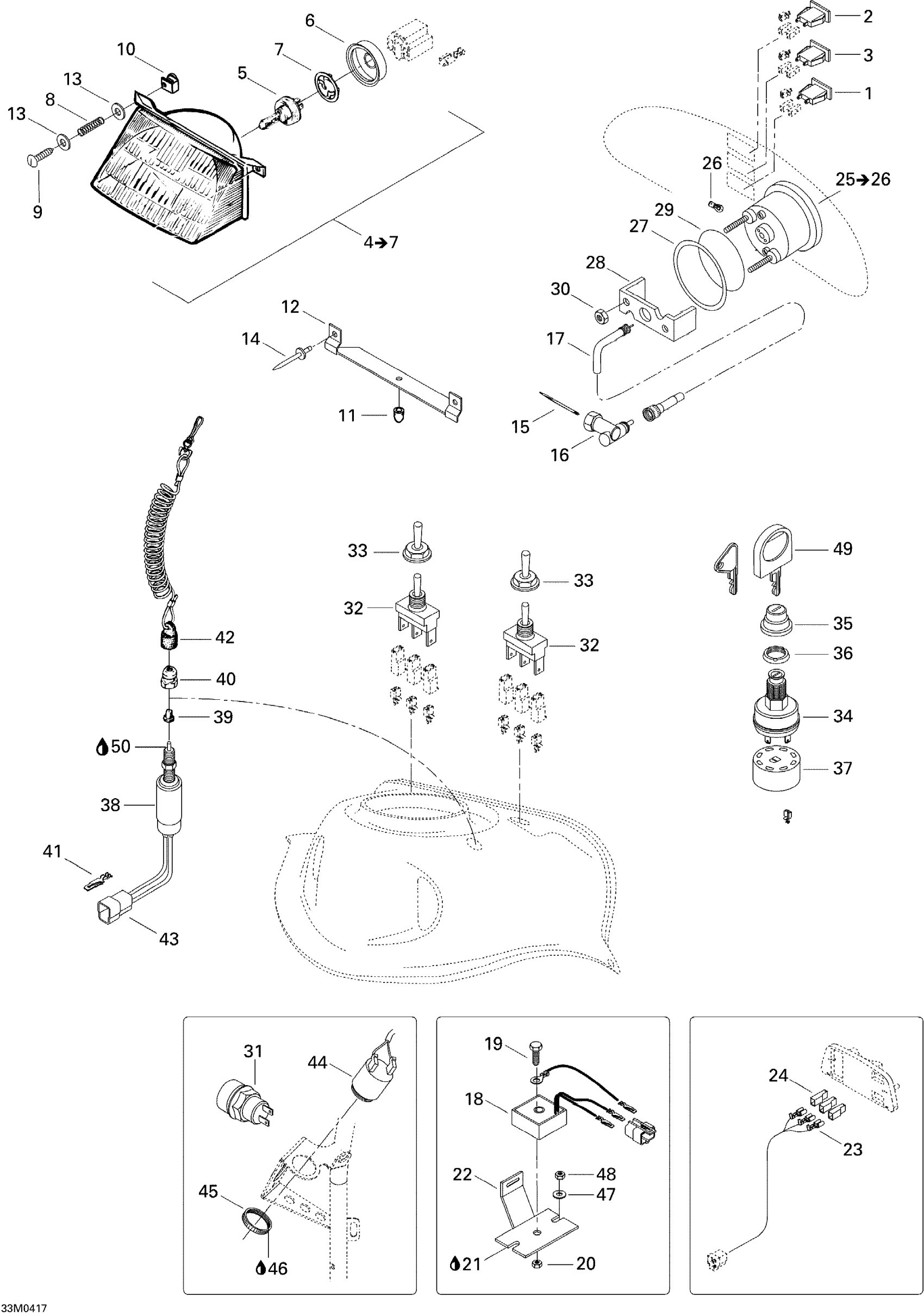

Ski-Doo Skandic LT 440F, 2004 Electrical System Diagram
#
2
PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America
515175726
Unavailable
3
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership
515175728
Unavailable
4
Headlamp | Includes 53 to 56
410609300
Unavailable
5
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
6
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
8
Spring
517168600
Unavailable
9
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership
243244040
Unavailable
10
Projector Nut
572078600
Unavailable
12
HOLDER - Call your local BRP dealership
M539864
Unavailable
13
Flat Washer M5
234051410
Unavailable
14
Rivet
M36489
Unavailable
16
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.
35021
Unavailable
17
Speedometer Cable
M45006
Unavailable
18
Volt Regulator Ass'y
M5446342
Unavailable
19
Hex. Screw
M40003
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
Grease Tube Lmz, 400 G
413707500
Unavailable
22
Cooling Plate
M5346798
Unavailable
25
Speedometer, Mph
515175336
Unavailable
25
Speedometer, Kmh
515175335
Unavailable
26
Bulb 12V-1.7W
515175929
Unavailable
27
Washer
517258500
Unavailable
28
Case Holder
414806500
Unavailable
29
O-Ring
414807100
Unavailable
30
NUT M5 - Call your local BRP dealership
M33062
Unavailable
31
Push Button
415130372
Unavailable
34
IGNITION SWITCH - Call your local BRP dealership
515176548
Unavailable
35
Switch Boot
570013700
Unavailable
37
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
41
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
43
Male Housing
M42268
Unavailable
44
HORN - Call your local BRP dealership
515176035
Unavailable
46
Silicone Sealant 51388, 300 ml
296000309
Unavailable
48
Elastic Stop Nut M6
232561414
Unavailable
49
Blank Key
415129350
Unavailable
50
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
