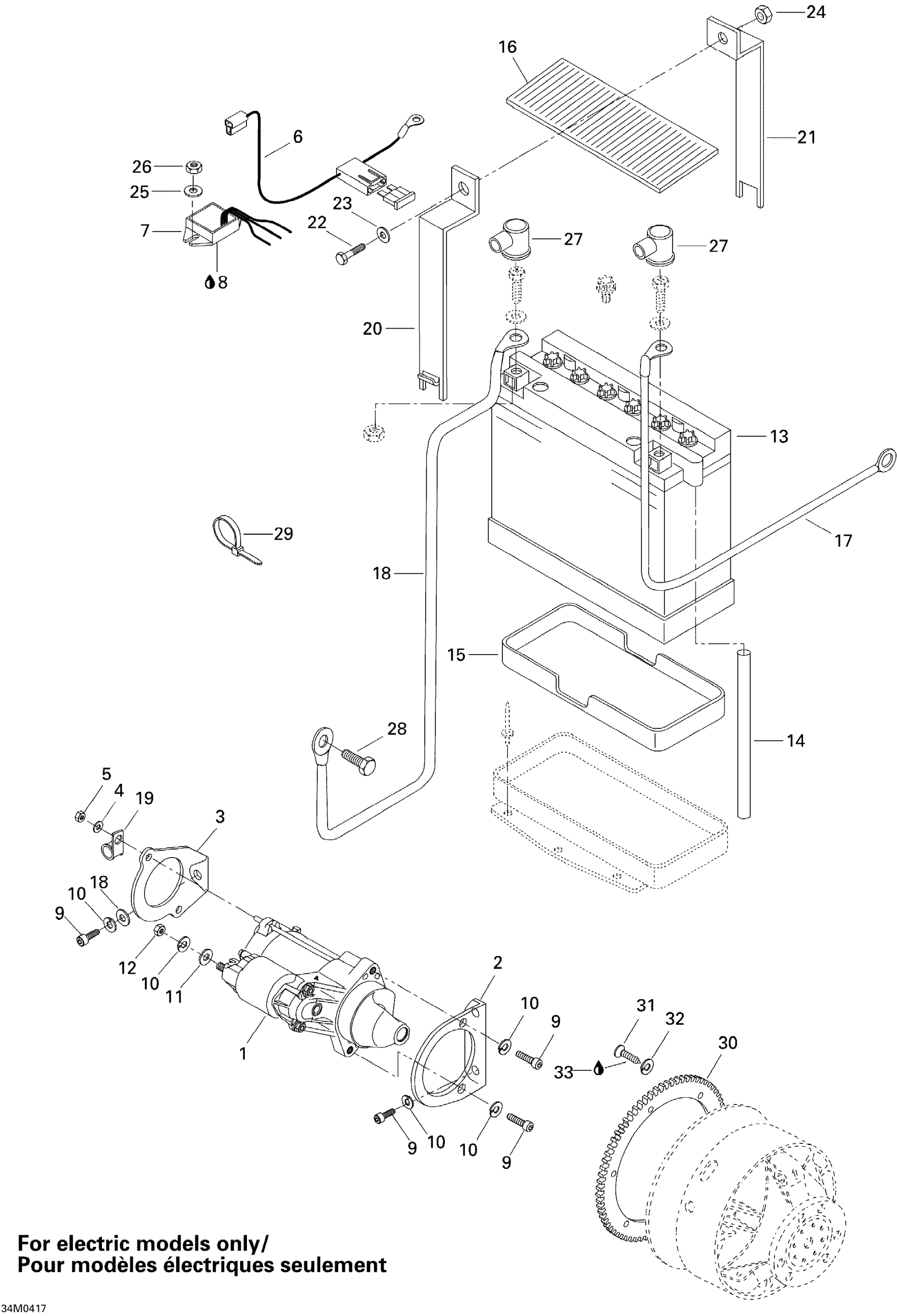

Ski-Doo Skandic LT 440F, 2004 Battery And Accessories Diagram
#
Description
Price
1
ELECTRIC STARTER ASSY - Call your local BRP dealership
410212400
Unavailable
2
Starter Bracket
M5346654
Unavailable
3
Mag Starter Bracket
M5346655
Unavailable
4
Washer 5,3 mm
20008
Unavailable
5
Elastic Stop Nut M5
232551414
Unavailable
6
Fuse Holder
M5346695
Unavailable
7
Voltage Regulator
M5446629
Unavailable
8
Grease Tube Lmz, 400 G
413707500
Unavailable
10
Lock Washer 8 mm
234181401
Unavailable
11
Flat Washer 8 mm
234081410
Unavailable
12
NUT - Call your local BRP dealership
M33003
Unavailable
13
BATTERY 14AMP - Call your local BRP dealership This part replaces M42215.
42215
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Battery Seat
M5346659
Unavailable
16
Battery Carpet
M5446666
Unavailable
17
BATTERY WIRE - Call your local BRP dealership
605349434
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
CLIP - Call your local BRP dealership
M27092
Unavailable
20
Steel Strip
M5446682
Unavailable
21
Steel Strip
M5446694
Unavailable
22
Hex. Screw M6 X 30
207063044
Unavailable
23
Flat Washer 6 mm
234061410
Unavailable
24
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
26
Elastic Stop Nut M6
232561414
Unavailable
28
SCREW-M6X12 - Call your local BRP dealership
M40327
Unavailable
30
Ring Gear 86Th
417009400
Unavailable
31
Hex. Screw M8 X 16
236281684
Unavailable
32
WASHER - Call your local BRP dealership
M20078
Unavailable
33
Loctite 271, 10 ml
293800005
Unavailable
