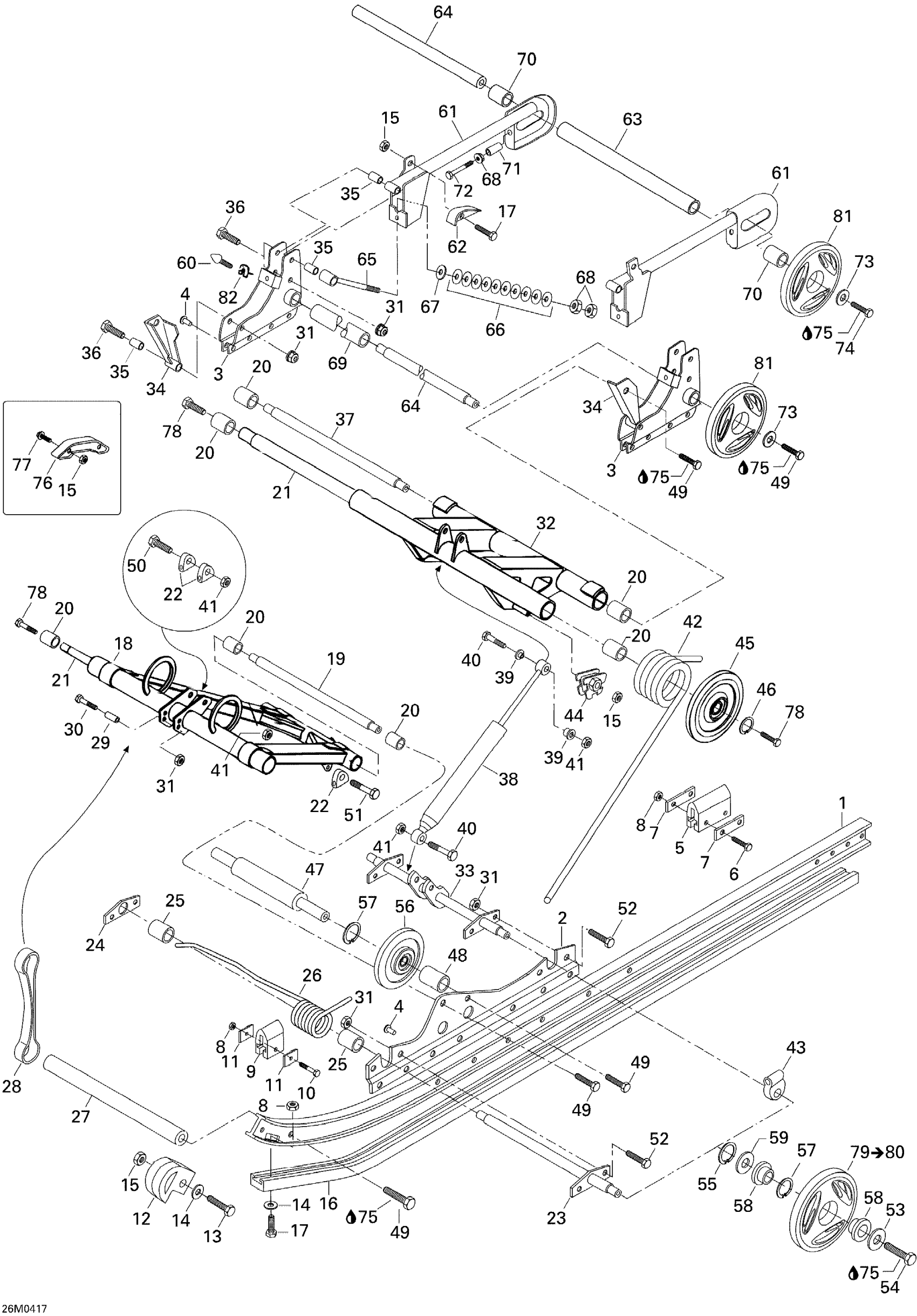

Ski-Doo Skandic LT 440F, 2004 Rear Suspension Diagram

#

Description
Price

1

RH Runner Ass’Y | Includes 1 to 5

M5142866

Unavailable

1

LH RUNNER ASS?Y - Call your local BRP dealership | Includes 1 to 5

M5142865

Unavailable

1

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

Unavailable

2

Support Plate Rh This part replaces M5344811.

5344811

Unavailable

2

Support Plate Lh This part replaces M5344810.

5344810

Unavailable

3

Support For Rearaxle Rh This part replaces M539673.

539673

Unavailable

3

Support For Rearaxle Lh This part replaces M539672.

539672

Unavailable

4

RIVET - Call your local BRP dealership

M544212

Unavailable

5

RUBBER STOPPER - Call your local BRP dealership

570023100

Unavailable

6

Hex. Screw M6 X 40

207064044

$1.48

7

Washer

M548387

Unavailable

8

Elastic Stop Nut M6

232561414

Unavailable

9

STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.

5442328

Unavailable

10

Hex. Screw M6 X 30

207063044

Unavailable

11

Plate

M548470

Unavailable

12

Runner Protector

605348954

Unavailable

13

Hex. Screw M6 X 25

207162544

Unavailable

14

Flat Washer 6 mm

234061410

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Runner Shoe

M549582

Unavailable

17

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

18

Welded Front Arm

M538796

Unavailable

19

AXLE - Call your local BRP dealership

M548944

Unavailable

20

Bearing This part replaces M31023.

31023

Unavailable

21

Arm Shaft This part replaces M538945.

538945

Unavailable

22

Spring Roller This part replaces M548799.

548799

Unavailable

23

Axle

M538802

Unavailable

24

Plate Support

M548469

Unavailable

25

Sleeve

M548841

Unavailable

26

Spring R.H. This part replaces M5241178.

5241178

Unavailable

26

Spring L.H. This part replaces M5241177.

5241177

Unavailable

27

Cross Shaft

M546599

Unavailable

28

STOPPER STRAP - Call your local BRP dealership

M5445988

Unavailable

29

Sleeve

M546065

Unavailable

30

Hex. Screw

M40122

Unavailable

31

Hex. Elastic Stop Nut M8

232581414

Unavailable

32

Welded Rear Arm

M538801

Unavailable

33

Shaft

M538803

Unavailable

34

Crank Arm R.H. This part replaces M5440350.

5440350

Unavailable

34

Crank Arm Lh This part replaces M5440349.

5440349

Unavailable

35

Spacer This part replaces M545758.

545758

Unavailable

36

Hex. Screw M8 X 45

207084544

Unavailable

37

Swing Shaft This part replaces M548946.

548946

Unavailable

38

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

39

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

40

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

41

Elastic Locking Nut M10 X 1.5

233601416

$1.68

42

Spring R.H. This part replaces M538806.

538806

Unavailable

42

Spring L.H. This part replaces M538805.

538805

Unavailable

43

Spring Support

M548804

Unavailable

44

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

44

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

45

Wheel 165" | Includes 670 to 670b

503194127

$49.97

46

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

Unavailable

47

Support Shaft

M5445985

Unavailable

48

Sleeve L=29

M5444098

Unavailable

49

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

50

Hex. Screw M10 X 55

207005544

$1.85

51

Hex. Screw M10 X 35

207103544

Unavailable

52

Hex. Screw M8 x 16

207181644

$0.87

53

Washer

503183100

$3.08

54

Hex. Screw

M40337

Unavailable

55

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

Unavailable

56

Wheel 135

503191029

Unavailable

57

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

58

Cushion

503189534

Unavailable

59

SHIM - Call your local BRP dealership

M31091

Unavailable

60

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

61

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

61

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

62

Protector

M548262

Unavailable

63

SLEEVE - Call your local BRP dealership

M5346739

Unavailable

64

Shaft

M5445986

Unavailable

65

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

66

Cup Spring This part replaces M25004.

25004

Unavailable

67

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

68

Hex. Nut M10 X 1.5

232006414

$1.11

69

SLEEVE L=176 - Call your local BRP dealership

M542105

Unavailable

70

Not Available As Spare Part - Friction Washer

Unavailable

71

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

72

SCREW - Call your local BRP dealership

M40239

Unavailable

73

Washer

503183300

$5.68

74

Hex. Screw With Nylon Patch

M40050

Unavailable

75

Loctite 243, 10 ml

293800060

$20.77

76

Sliding Pad

503192731

Unavailable

77

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

78

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

$2.94

79

Wheel 135, Yellow

503190785

Unavailable

80

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

81

Wheel 165 mm Yellow

503190817

Unavailable

82

Adjustment Plate This part replaces M5440645.

5440645

Unavailable
