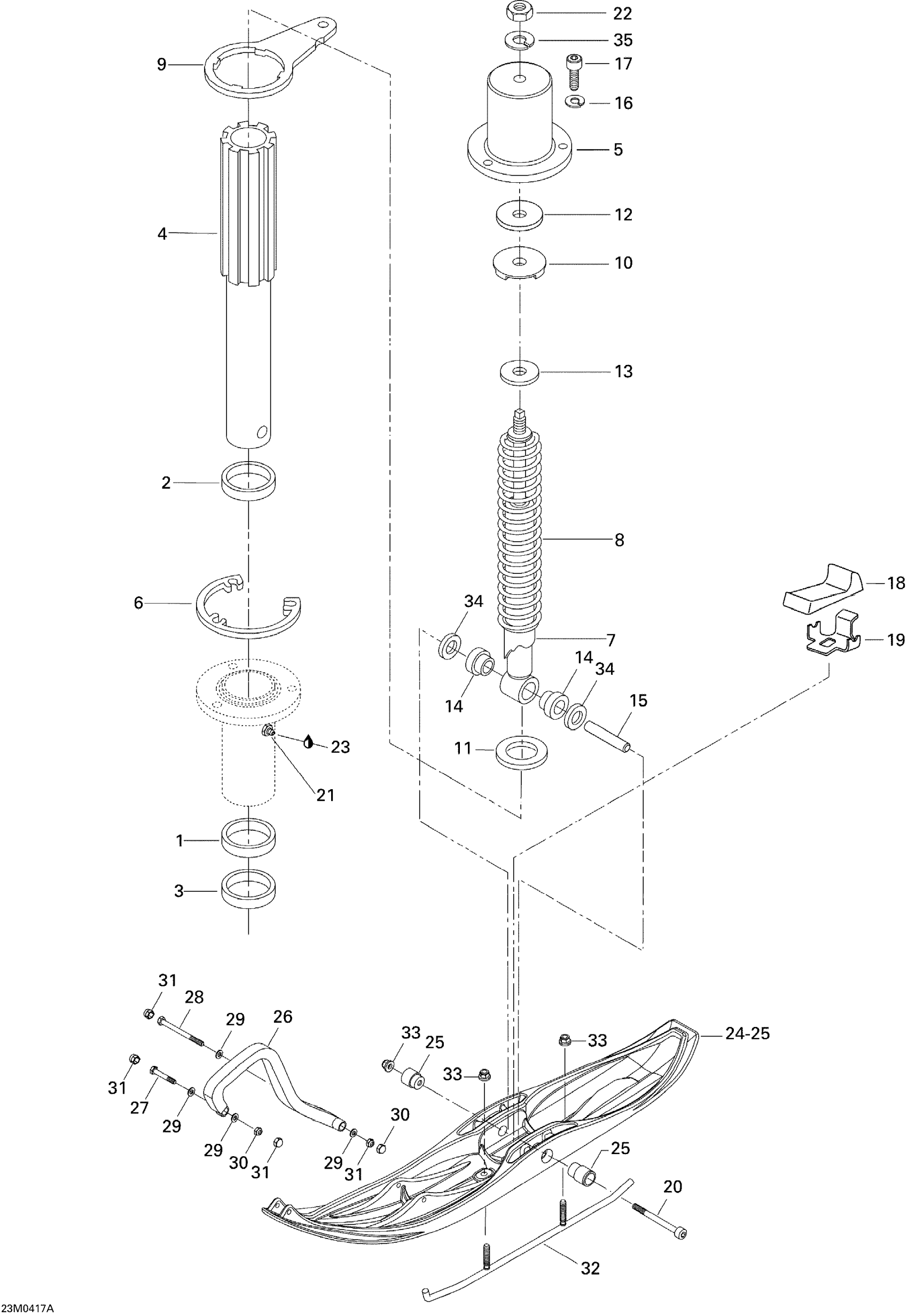

Ski-Doo Skandic LT 440F, 2004 Front Suspension Diagram

#

Description
Price

1

Lower Cushion

414803200

$11.71

2

Upper Cushion

414803100

$8.42

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

4

Ski Leg

M5243952

Unavailable

5

Welded Cover

605249285

Unavailable

6

SPACER - Call your local BRP dealership

503145600

Unavailable

7

Shock

414803600a

Unavailable

8

Spring

M5240897

Unavailable

9

Steering Arm 8Te This part replaces M5340383.

5340383

$78.43

10

Stopper

570025800

$12.65

11

Washer This part replaces M549493.

549493

$13.58

12

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

13

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

14

Cushion

572034500

$9.98

15

Ski Axle

505073209

$12.69

16

Lock Washer 8 mm

234181401

$0.89

17

Socket Head Screw M8 X 20

205082044

$1.09

18

Rubber Stopper

605348439

Unavailable

19

PLATE SUPPORT - Call your local BRP dealership

605348437

Unavailable

20

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

21

Grease Fitting

M34019

Unavailable

22

Elastic Locking Nut M10 X 1.5

233601416

$1.68

23

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

24

Ski | Europe models

505073034

$233.05

25

Bushing | Europe models

605348392

$52.99

26

Black, Handle

505070963

$35.35

27

Hex. Screw M8 X 50

207085044

$1.25

28

Hex. Screw M8 X 90

207089044

$2.82

29

Flat Washer 8 mm

234081410

$0.69

30

Hex. Elastic Stop Nut M8

232581414

$0.47

31

Cover | Model-T3

28056

$5.52

32

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

Unavailable

33

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

34

Bushing

605448594

$10.00

35

Flat Washer 10 mm

234001410

$0.98
