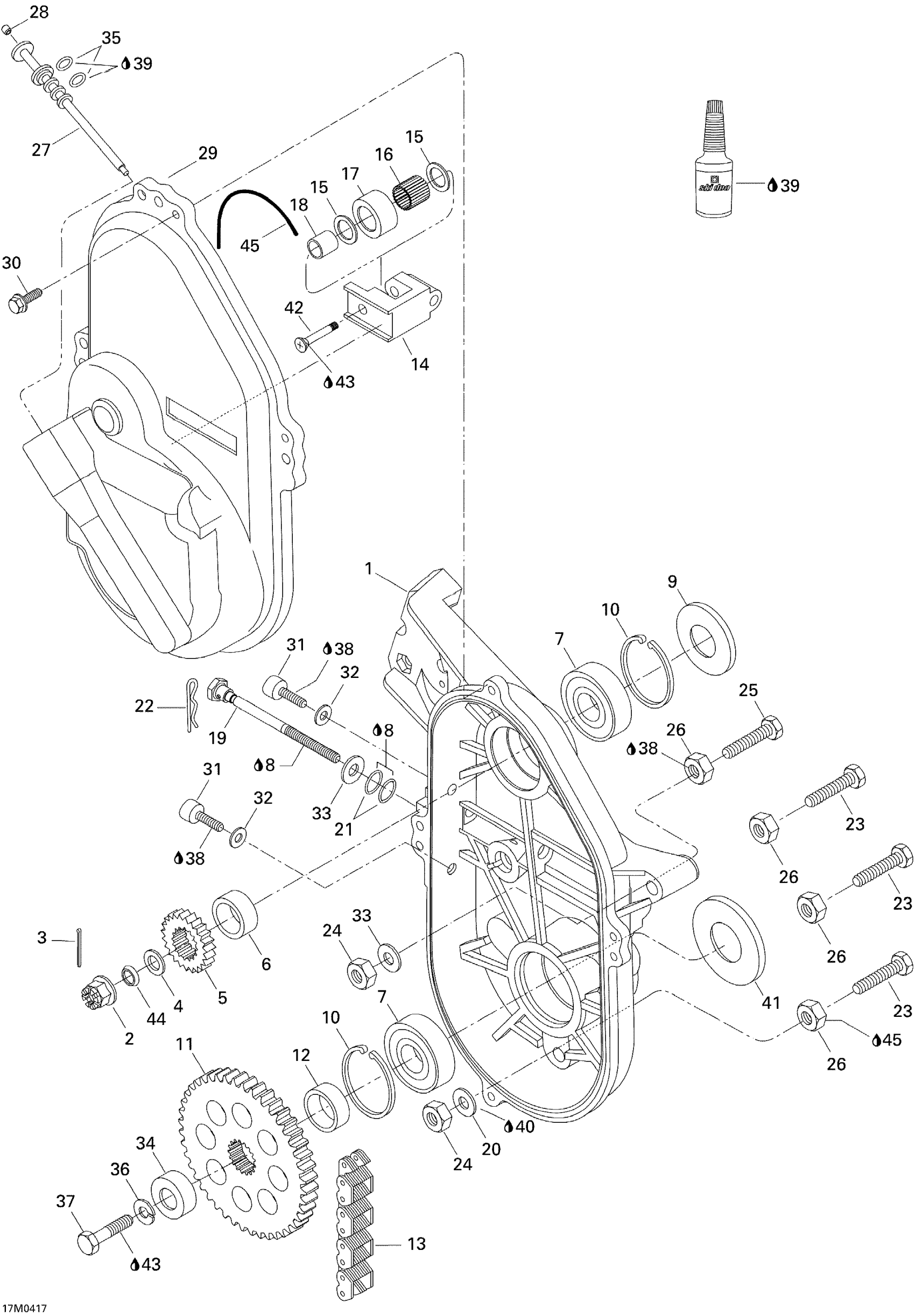

Ski-Doo Skandic LT 440F, 2004 Chaincase Diagram

#

Description
Price

1

Machined Chaincase

504144600

Unavailable

2

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

3

Cotter Pin

371801300

Unavailable

4

SPACER - Call your local BRP dealership

504152049

Unavailable

5

Sprocket 17 Th

504071800

Unavailable

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

Unavailable

8

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

9

OIL SEAL - Call your local BRP dealership

414882800

$17.66

10

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

11

Sprocket 44Th

504070900

Unavailable

12

Spacer

504146400

Unavailable

13

DRIVING CHAIN 70 M - Call your local BRP dealership

504151882

Unavailable

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

Needle Bearing

M31050

Unavailable

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

20

WASHER-FLAT - Call your local BRP dealership

M20073

Unavailable

21

O-Ring

414484400

$7.31

22

Hair Pin

414575600

Unavailable

23

Screw

M40201

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.68

25

Screw

M40043

Unavailable

26

Spacer

504083800

Unavailable

27

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

28

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

29

CASTING COVER - Call your local BRP dealership

080037100

Unavailable

30

Hex. Forming Screw

M40340

Unavailable

31

Socket Head Screw

M40859

Unavailable

32

Washer

M20022

Unavailable

33

Flat Washer 10 mm

234001410

Unavailable

34

CAP - Call your local BRP dealership

501026200

$8.43

35

O RING - Call your local BRP dealership

M28402

Unavailable

36

Lock Washer D10

20068

Unavailable

37

Hex. Screw M10 X 25

207102544

Unavailable

38

Loctite 243, 10 ml

293800060

$20.77

39

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

40

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

41

Seal Oil Ass'y

504152076

Unavailable

42

SCREW - Call your local BRP dealership

732601144

Unavailable

43

Loctite 271, 10 ml

293800005

Unavailable

44

Spring Washer

417000900

Unavailable

45

O-Ring

414362300

Unavailable
