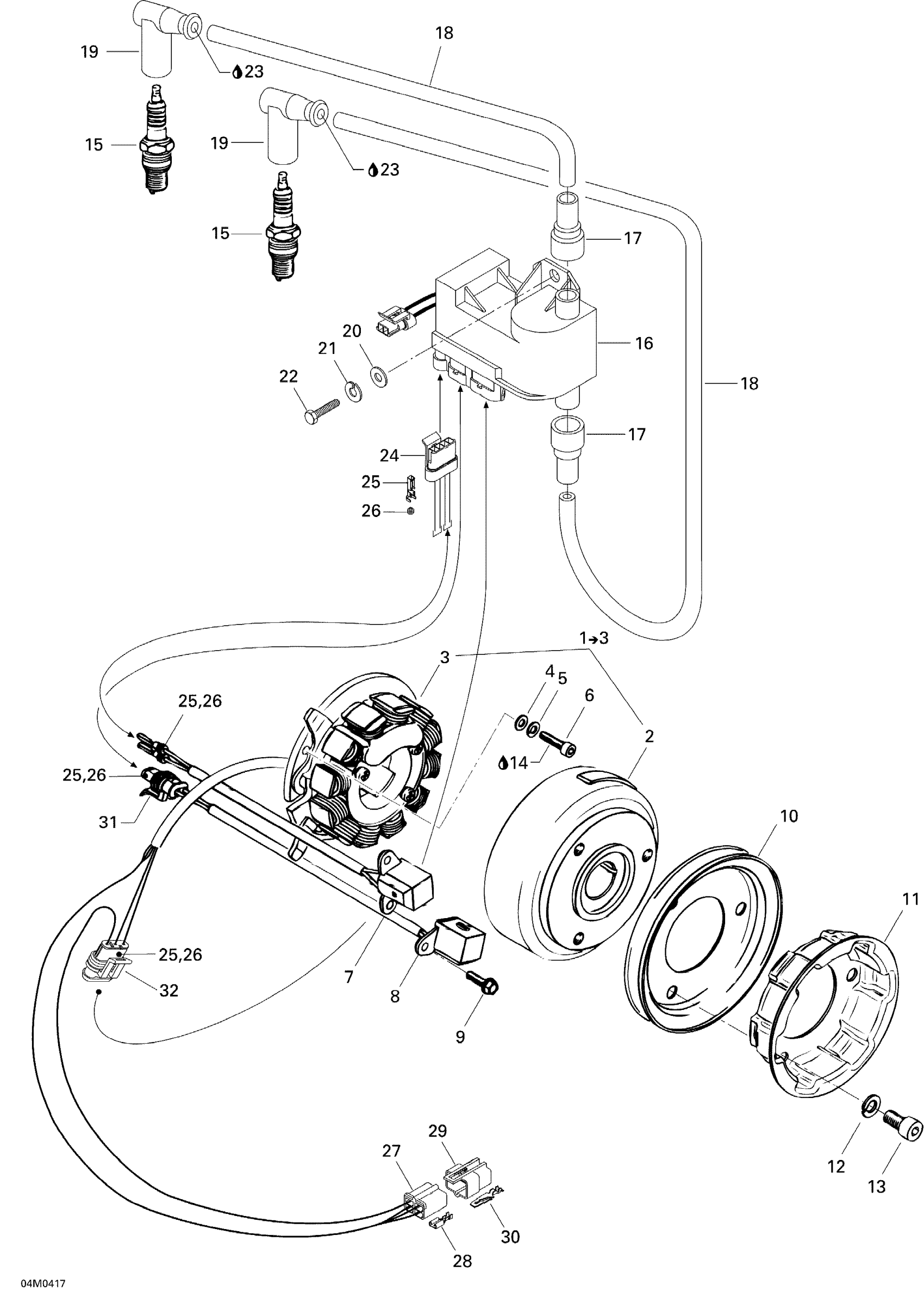

Ski-Doo Skandic LT 440F, 2004 Magneto Diagram
#
Description
Price
1
Ducati Magneto | Includes 1 to 2
420887654
Unavailable
3
STATOR PLATE A - Call your local BRP dealership
420886603
Unavailable
4
Washer 5.3
420927574
Unavailable
5
Lock Washer
M20013
Unavailable
6
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
7
Pick-Up
420665163
Unavailable
8
PICK-UP - Call your local BRP dealership
420665160
Unavailable
9
Taptite Screw M5 X 16
420941928
Unavailable
10
V-Belt Pulley
420980486
Unavailable
11
Rope Sheave
420852414
Unavailable
12
Lock Washer
420845311
Unavailable
13
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership
420841522
Unavailable
15
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
17
PROTECTION CAP - Call your local BRP dealership
515174900
Unavailable
18
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
19
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
20
Flat Washer 6 mm
234061410
Unavailable
22
SCREW - Call your local BRP dealership
M40332
Unavailable
23
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
24
Female Housing, 4 Circuits
409209700
Unavailable
25
Female Terminal
278001014
Unavailable
26
Wire Seal
278001013
Unavailable
27
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
28
FEMALE TERMINAL - Call your local BRP dealership
515175253
Unavailable
29
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
30
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
32
Female Housing, 3 Circuits
409209600
Unavailable
