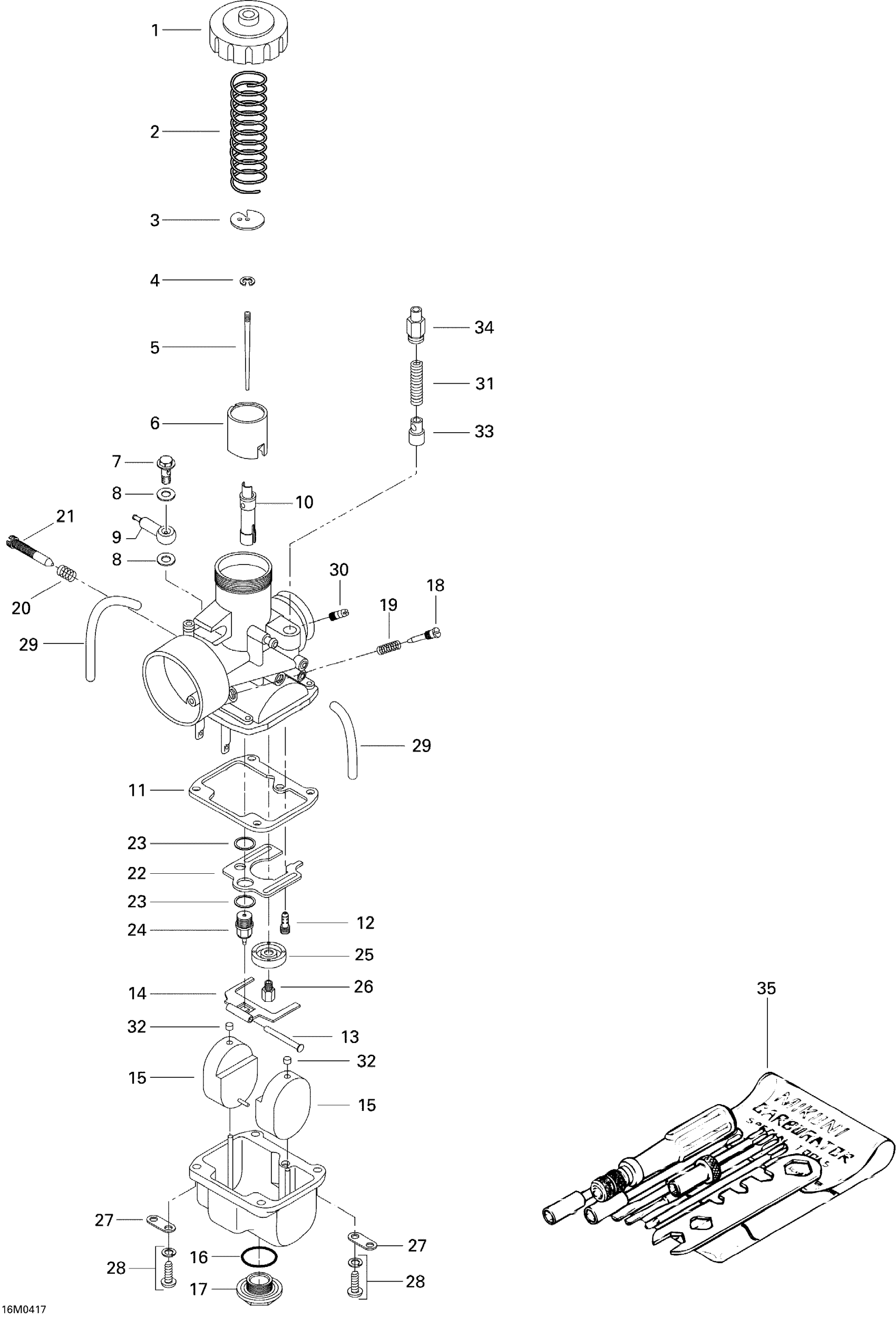

Ski-Doo Skandic LT 440F, 2004 Carburetor Diagram

#

Description
Price

1

Carburetor Ass'y | Includes 1 to 34

M19121

Unavailable

1

Cover

404103700

$32.99

2

Spring

404154800

$24.99

3

PLATE - Call your local BRP dealership

404103800

$8.43

4

E-Ring

404152400

$6.55

5

NEEDLE - Call your local BRP dealership

404161978

Unavailable

6

Valve Piston 3.0

404158400

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Washer

270500025

Unavailable

9

BANJO FITTING - Call your local BRP dealership

404130000

$12.28

10

Needle Jet

404130200

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

PILOT JET 50 - Call your local BRP dealership

404109500

$4.55

13

Lever Pin

404103300

$6.39

14

Float Lever

404107600

$23.99

15

FLOAT - Call your local BRP dealership

404107100

$25.35

16

O-Ring

404107300

$8.14

17

Drain Plug Screw

404107400

$23.99

18

AIR SCREW - Call your local BRP dealership

404149000

$25.35

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.29

21

THROTTLE SCREW - Call your local BRP dealership

404125200

$11.98

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.31

24

Needle Valve 1.5

404103200

$32.99

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet 180

404112200

$5.29

27

PLATE - Call your local BRP dealership

404103000

$8.51

28

Screw With Lock Washer

404102000

$3.29

29

HOSE - Call your local BRP dealership

404161880

Unavailable

30

Nipple

404153400

$11.51

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

Cap

404105800

$6.49

33

PLUNGER ASS'Y - Call your local BRP dealership

404161000

$19.97

34

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
