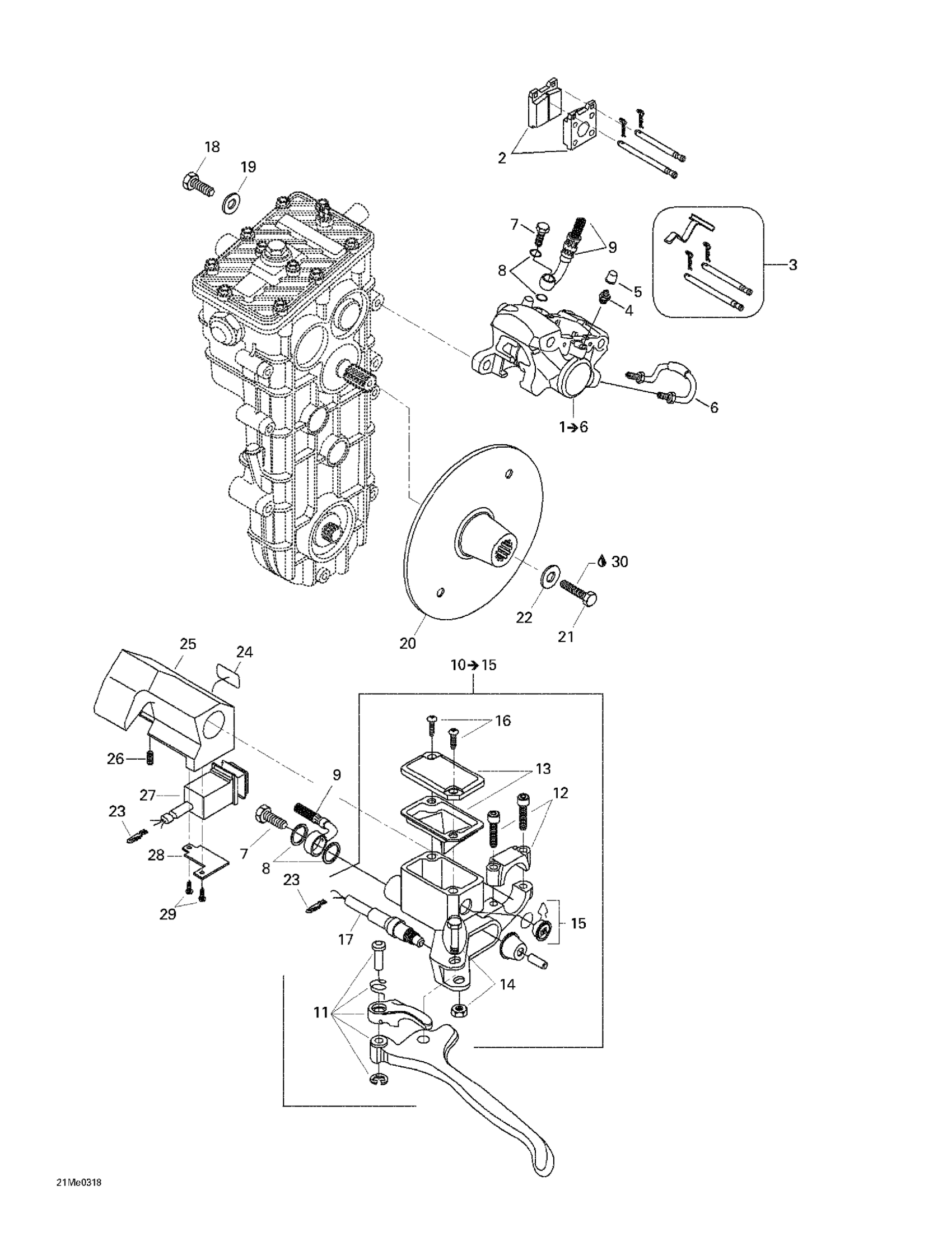

Ski-Doo Skandic 600, 2003 Brake Diagram

#

Description
Price

1

Caliper | Includes Items 1 to 6

507032321

Unavailable

2

Brake Pad Kit

415084600

Unavailable

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Banjo Bolt

414920500

$8.49

8

Washer

414920600

Unavailable

9

HOSE - Call your local BRP dealership

507032219

Unavailable

10

Master Cylinder | Includes 1 to 8

507032293

Unavailable

11

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

12

Clamp And Screw Kit

507032477

$23.05

13

Cap

415029900

Unavailable

14

Pin Ass'y

415030000

Unavailable

15

WINDOW - Call your local BRP dealership

414990600

Unavailable

16

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

17

Microswitch

507032366

Unavailable

18

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

Unavailable

19

Lock Washer D10

20068

Unavailable

20

Brake Disc

605353250

Unavailable

21

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

22

Washer

M546336

Unavailable

23

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

24

Switch Decal

415025500

Unavailable

25

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

26

Socket Set Screw M8 X 10

414440800

$4.00

27

Dimmer Switch

515175371

Unavailable

28

Plate | SWT 550

517283800

Unavailable

29

Screw

414473200

$3.69

30

Loctite 243, 10 ml

293800060

$20.77
