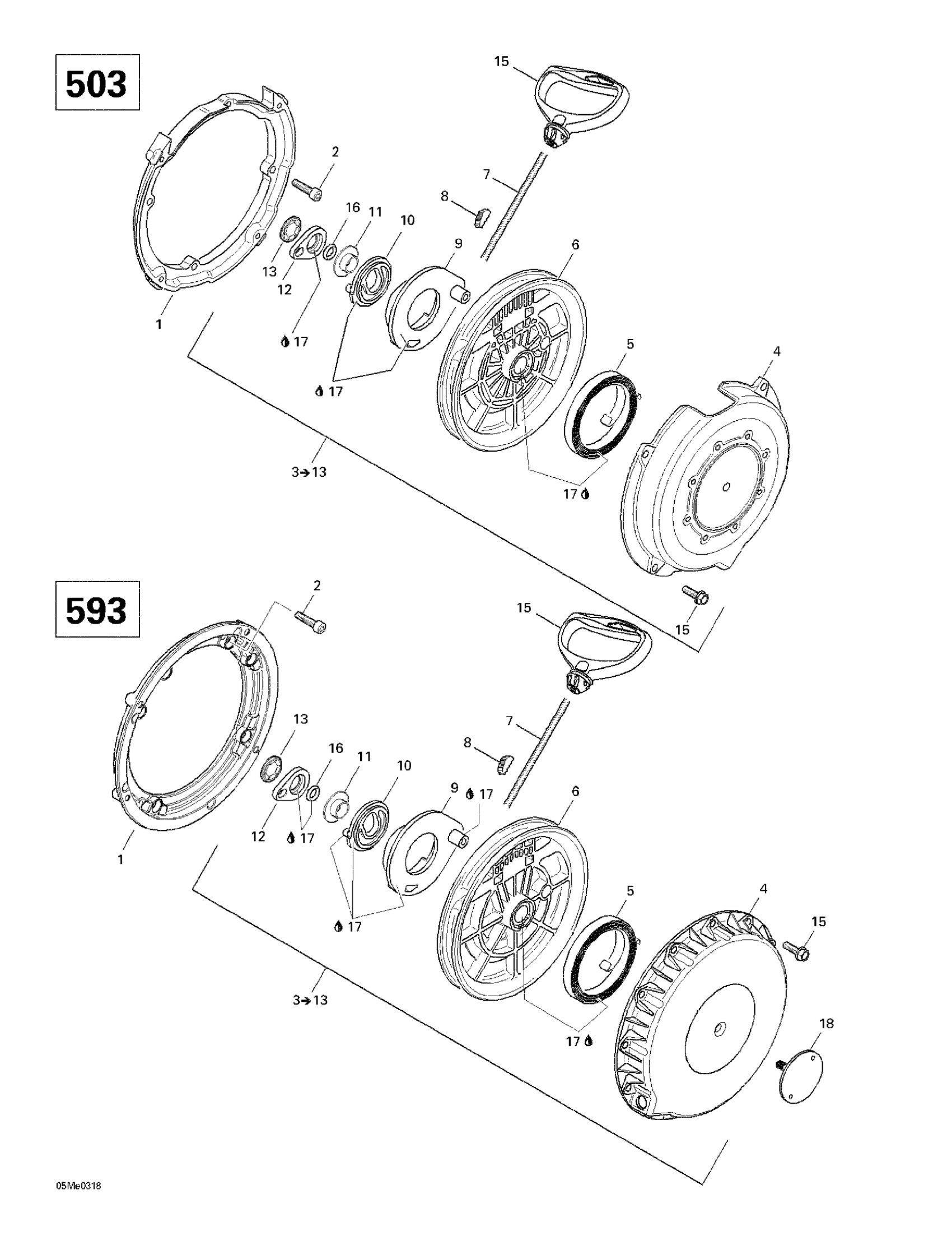

Ski-Doo Skandic 600, 2003 Rewind Starter Diagram
#
Description
Price
1
Flange Connector
420810955
Unavailable
2
Allen Screw M6 x 22 This part replaces 420840401.
420840403
Unavailable
Socket Head Screw M6 x 16
420241237
Unavailable
3
Rewind Starter Ass'y | Includes 3 to 13
420888219
Unavailable
4
Starter Housing | Skandic 500F. Skandic 500F (SWT).
420811345
Unavailable
6
Rope Sheave
420852480
Unavailable
ROPE SHEAVE - Call your local BRP dealership | SUV 600
420852286
Unavailable
7
Was 412500100 Rope-Starter
219704403
Unavailable
Was 412500100 Rope-Starter
219704403
Unavailable
8
Key Clamp
420852070
Unavailable
9
Pawl
420852296
Unavailable
10
PAWL LOCK - Call your local BRP dealership
420852305
Unavailable
PAWL LOCK - Call your local BRP dealership
420852305
Unavailable
11
Stage Sleeve
420847926
Unavailable
12
Lock Ring
420852520
Unavailable
13
Locking Element
420845560
Unavailable
14
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
Torx Flange Screw M6 X 20
420441386
Unavailable
15
Starter Grip
572084400
Unavailable
16
O-Ring
420250400
Unavailable
17
Molykote PG 54, 10 g
420899763
Unavailable
18
Positionning Pin | Skandic 600.
420929190
Unavailable
