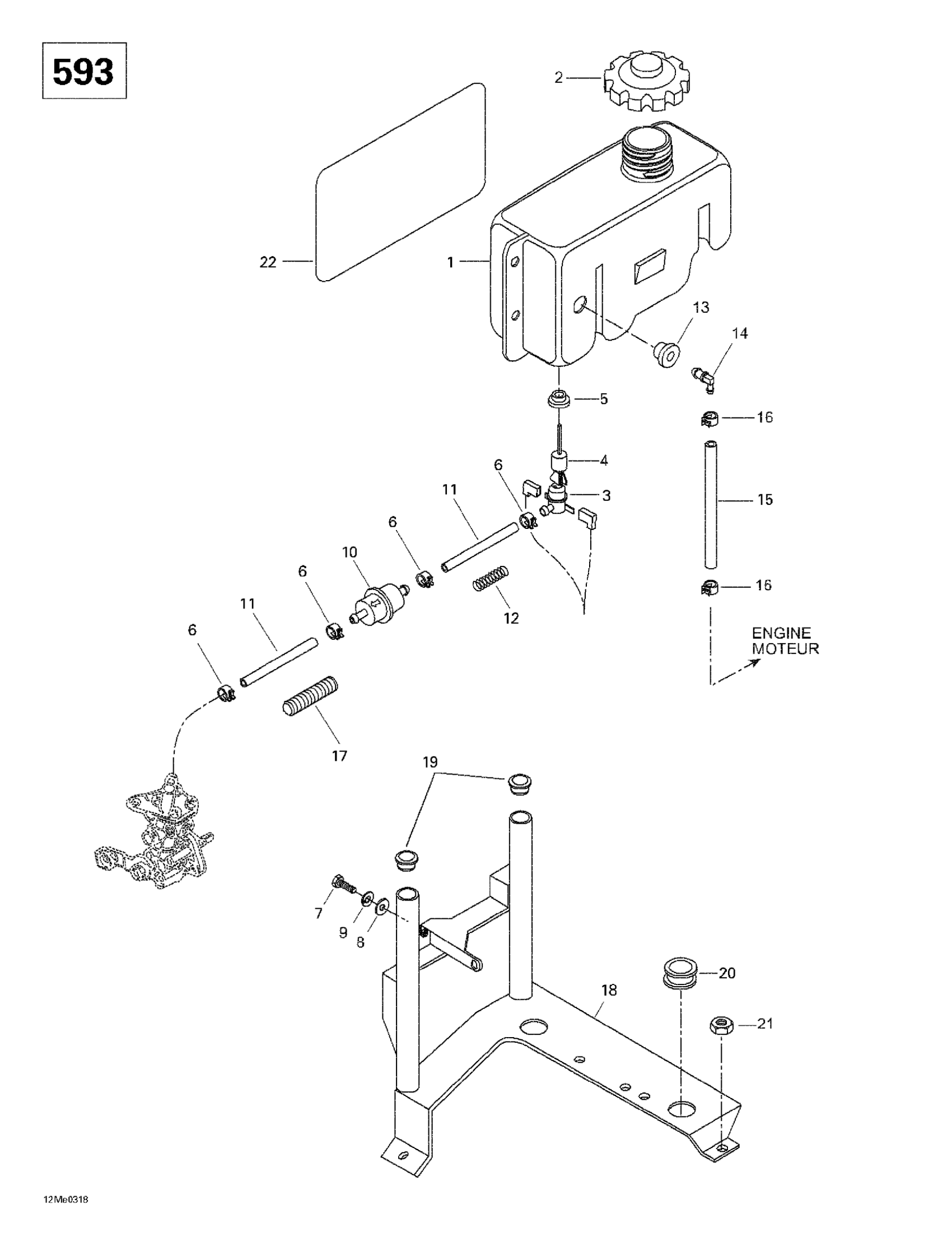

Ski-Doo Skandic 600, 2003 Oil Tank And Support (593) Diagram
#
Description
Price
1
Oil Tank | SUV 600
M5146370
Unavailable
2
CAP - Call your local BRP dealership
519000044
Unavailable
3
LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A
414681800
Unavailable
4
Float
414681900
Unavailable
5
Insulating Ring
570023000
Unavailable
6
Spring Clamp
414420700
Unavailable
7
Screw
M40322
Unavailable
12
Spring
M250001
Unavailable
14
Male Connector
414580700
Unavailable
15
Hose 5/8 1000MM LONG - Call your local BRP dealership
219704397
Unavailable
17
HOUSING - Call your local BRP dealership
M28015
Unavailable
18
Oil Tank Support | SUV 600
M5246593
Unavailable
19
PLUG - Call your local BRP dealership
M28136
Unavailable
20
Passe-Fils *Grommet
M5446766
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Reflecting Sheet
M5443578
Unavailable
