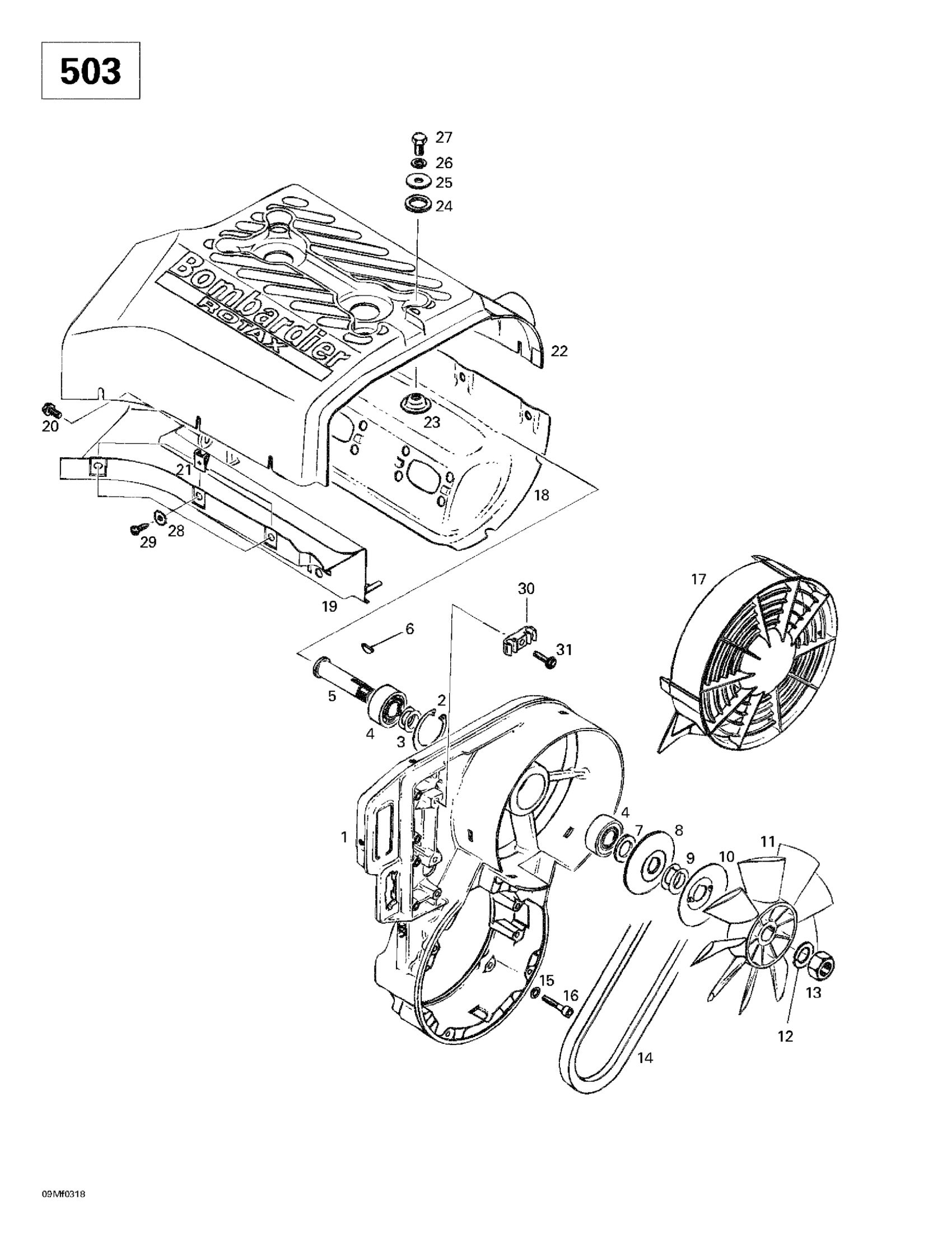

Ski-Doo Skandic 600, 2003 Cooling System Fan (503) Diagram
#
Description
Price
1
Fan Housing | Formula SL.
420912204
Unavailable
2
Lock Ring
420945880
Unavailable
3
Shim
420244585
Unavailable
4
Ball Bearing
420832161
Unavailable
5
Fan Axle This part replaces 420937940.
420937941
Unavailable
6
Woodruff Key
420246015
Unavailable
7
Spacer Bushing
420827650
Unavailable
8
Flange
420980496
Unavailable
9
Shim 0.5 mm
420827080
Unavailable
Shim 0.2 mm
420827082
Unavailable
10
Protection Washer
420980523
Unavailable
11
FAN - Call your local BRP dealership
420866292
Unavailable
12
Lock Washer
420945756
Unavailable
13
Nut M16 This part replaces 420942285.
420942289
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
16
Socket Head Screw M6 X 30
205063044
Unavailable
18
Cylinder Cowl, Exhaust Side | Formula Deluxe 500.
420810543
Unavailable
19
Cylinder Cowl, Carburetor Side | Skandic 500F. Skandic 500F (SWT).
420810546
Unavailable
20
TAPTITE SCREW M6 X 12 - Call your local BRP dealership
420240385
Unavailable
21
SPRING NUT U #10-24 - Call your local BRP dealership
417300005
Unavailable
22
CYLINDER COWL - Call your local BRP dealership
420811295
Unavailable
23
Cup Washer
420827817
Unavailable
24
Rubber Washer
420960865
Unavailable
25
Washer This part replaces 420227935.
420227936
Unavailable
26
Washer-Lock Din.128
420945832
Unavailable
28
FLAT WASHER - Call your local BRP dealership
420926180
Unavailable
29
Tapping Screw M4.8 X 16
417300006
Unavailable
30
CLAMP - Call your local BRP dealership
420860940
Unavailable
31
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
