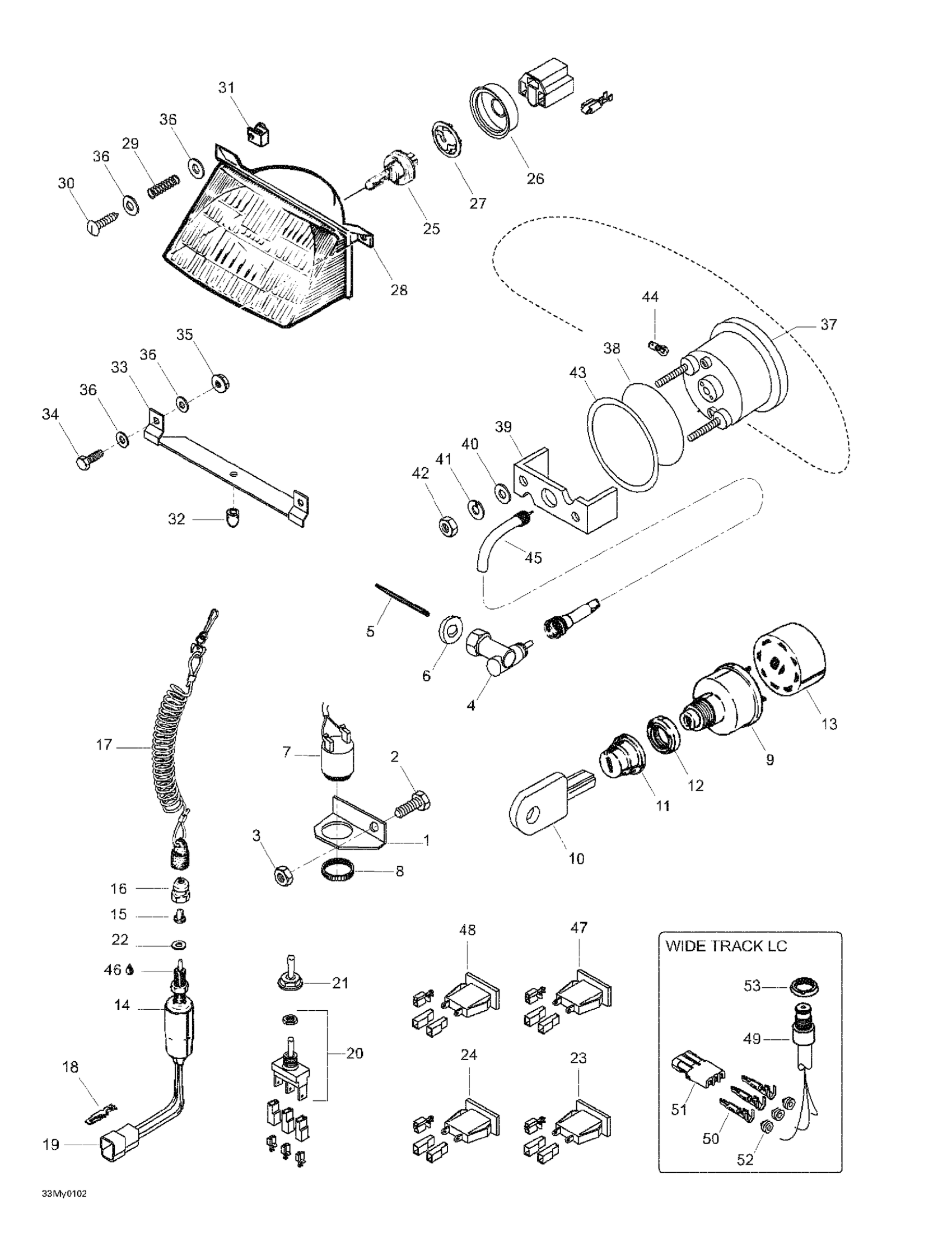

Ski-Doo Skandic 500F/600, 2001 Electrical System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Hex. Screw M6 X 16

207161644

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

4

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

Unavailable

5

Square Pin Nska L=75Mm This part replaces M45075.

45075

$18.43

6

Washer

M5444186

Unavailable

7

Back-Up Alarm

414792102

$143.05

8

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Blank Key

415129350

Unavailable

11

Switch Boot

570013700

Unavailable

12

FACE NUT - Call your local BRP dealership

410112100

$14.29

13

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

14

Brake Switch

515175653

$15.57

15

Plunger Cap

570151100

$10.14

16

Switch Nut

515145900

$10.83

17

Cap Ass'y

515178283

$37.66

DESS

515178284

Unavailable

18

Male Terminal

M42031

Unavailable

19

Male Housing

M42122

Unavailable

20

Heat Grip Switch

410110700

$31.51

21

Switch Cover

515175281

$15.03

22

Flat Washer 10 mm

234001410

Unavailable

23

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

24

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

25

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

26

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

27

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

28

Headlamp | Includes 53 to 56

410609300

Unavailable

29

Spring

517168600

Unavailable

30

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

31

Projector Nut

572078600

Unavailable

32

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

33

HOLDER - Call your local BRP dealership

M539864

Unavailable

34

Screw M5 X 16

M40247

Unavailable

35

Elastic Stop Nut M5

232551414

Unavailable

36

Flat Washer M5

234051410

Unavailable

37

Speedometer, Mph

515175336

Unavailable

Speedometer, Kmh

515175335

Unavailable

38

O-Ring

414807100

Unavailable

39

Case Holder

414806500

Unavailable

40

Flat Washer

517225900

$0.17

41

Lock Washer

414806700

Unavailable

42

Nut

414806900

Unavailable

43

Washer

517258500

Unavailable

44

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

45

Speedometer Cable This part replaces M5344162.

5344162

Unavailable

46

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

47

Pilot Lamp (Temperature) | Formula Deluxe 500. Formula Deluxe 600.

515175593

Unavailable

48

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

49

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

50

Male Terminal | XT Models

278000222

$2.55

51

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

52

Wire Seal

278000218

Unavailable

53

Safe Nut Switch | Skandic 600.

276000508

Unavailable
