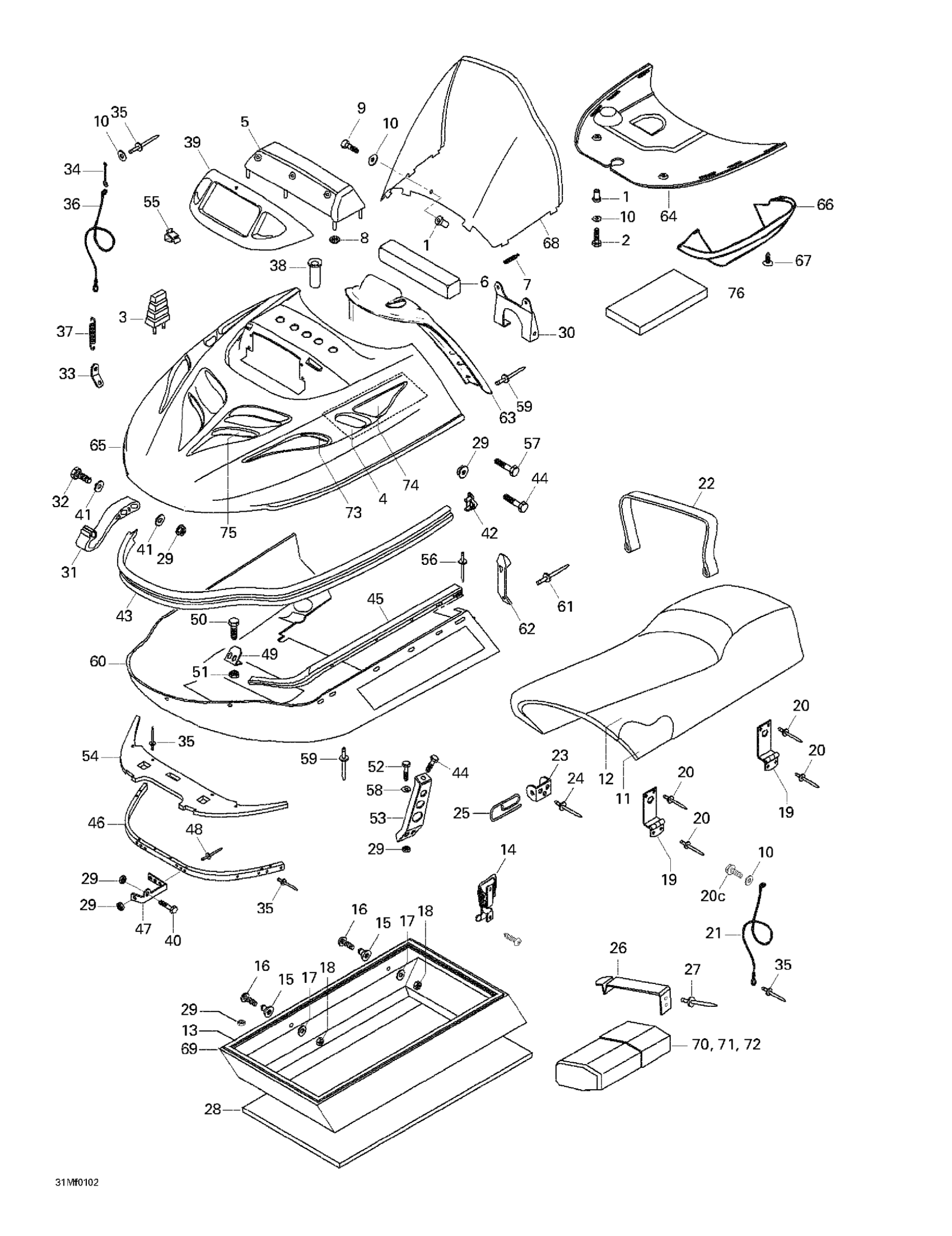

Ski-Doo Skandic 500F/600, 2001 Cab, Console, Seat 2 Diagram
#
1
NUT M5 - Call your local BRP dealership
250100018
Unavailable
2
Screw M5 X 30
M40808
Unavailable
3
Windshield Support
M5443136
Unavailable
4
Reflecting Sheet
M5443578
Unavailable
5
Intake Cover
M5142624
Unavailable
6
Filter
M5343135
Unavailable
7
Windshield Latch
570023800
Unavailable
8
Safety Washer
36084
Unavailable
9
Screw M5 X 30
M40358
Unavailable
10
Washer 5,3 mm
20008
Unavailable
11
Foam Seat
M5245239
Unavailable
12
Seat Cover | Skandic 500F (SWT).
M5245966
Unavailable
13
Gasket Tape | Skandic 500F (SWT).
M39057
Unavailable
14
LATCH - Call your local BRP dealership
M5346383
Unavailable
19
HINGE - Call your local BRP dealership
M5446374
Unavailable
20
Rivet
M36489
Unavailable
20C
Screw | Skandic 500F (SWT).
M40191
Unavailable
22
Seat Belt
M538856
Unavailable
23
Seat Belt Latch
M548824
Unavailable
25
Spring This part replaces M548834.
548834
Unavailable
26
Spring
M539455
Unavailable
27
Rivet
36005
Unavailable
28
Foam
M5346331
Unavailable
29
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
Support | Skandic 500F. Skandic 600.
M5343120
Unavailable
31
Hinge This part replaces M5343075.
5343075
Unavailable
32
SCREW - Call your local BRP dealership
M40193
Unavailable
33
SPRING PLATE - Call your local BRP dealership
M5443123
Unavailable
34
Cable Keeper
M5442870
Unavailable
35
Rivet
36005
Unavailable
36
Retainer Cable | SUV 600
M5342674
Unavailable
37
Spring This part replaces M5442675.
5442675
Unavailable
38
INLET TUBE - Call your local BRP dealership This part replaces M5444445.
5444445
Unavailable
39
Lamp Moulding
572079200
Unavailable
40
SCREW M6 X 45 - Call your local BRP dealership
M40084
Unavailable
42
RH Cap
M549096R
Unavailable
LH Cap
M549096L
Unavailable
43
Front Bumper
M5242798
Unavailable
44
Vis *Screw
M40078
Unavailable
45
LH Hood Guide
M5242803
Unavailable
RH Hood Guide
M5242804
Unavailable
46
SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.
5246120
Unavailable
47
Hinge
M5342234
Unavailable
Hinge
M5342345
Unavailable
48
Rivet
M36489
Unavailable
49
Hood Guide
M5443217
Unavailable
50
Screw M5 X 16
M40247
Unavailable
51
NUT M5 - Call your local BRP dealership
M33062
Unavailable
52
SCREW - Call your local BRP dealership
M40332
Unavailable
53
SUPP.-BUMPER - Call your local BRP dealership
M5342509
Unavailable
54
COVER - Call your local BRP dealership
605252352
Unavailable
56
Rivet
M36003
Unavailable
57
Hex. Screw M6 X 25
207162544
Unavailable
59
Black, Rivet
M36036
Unavailable
60
Bottom Pan | SWT 550
M5146314
Unavailable
62
Hood Latch
570027100
Unavailable
63
Dash | Skandic 500F.
M5341435
Unavailable
64
Air Duct
M5142622
Unavailable
65
Hood | Skandic 500F. Skandic 500F (SWT).
M5146010
Unavailable
66
Air Duct | Skandic 500F. Skandic 500F (SWT).
M5144412
Unavailable
68
Windshield | Skandic 500F (SWT).
M5343754
Unavailable
69
Welded Seat Base Weld
M5246336
Unavailable
70
TOOLS BOX - Call your local BRP dealership
708200043
Unavailable
71
COVER-BOX - Call your local BRP dealership
572036400
Unavailable
72
TOOL KIT - Call your local BRP dealership
529035500
Unavailable
73
RH Lower Grill
M5242672
Unavailable
LH Lower Grill
M5342673
Unavailable
74
RH UPPER GRILL - Call your local BRP dealership
M5242671
Unavailable
LH Upper Grill | SUV 550
M5242670
Unavailable
75
Front Grill
M5142669
Unavailable
76
Acoustic Foam
414631900
Unavailable
