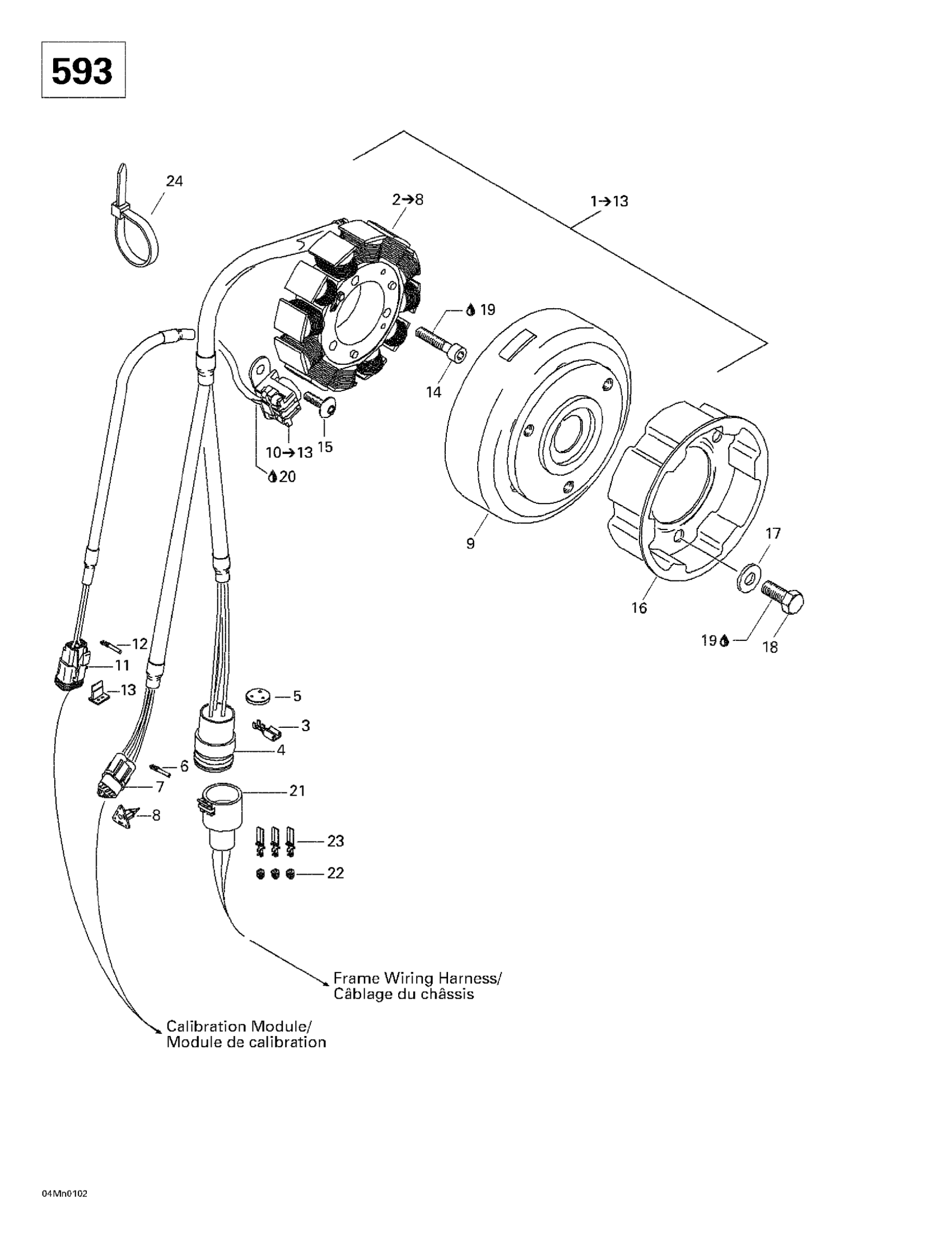

Ski-Doo Skandic 500F/600, 2001 Magneto (12V, 290W) (593) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate Ass'y | Includes 2 - 8.

410922934

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

5

SEAL - Call your local BRP dealership

409208500

Unavailable

6

Female Terminal

278000632

Unavailable

7

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

8

Female Lock

409207200

$3.48

9

Flywheel

410922933

Unavailable

10

Pickup Ass'y

410922925

Unavailable

11

Female Connector, 2 Circuits

409207300

$9.60

12

Female Terminal

278000632

Unavailable

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

Torx Screw M6 X 16

420640324

$2.06

16

Starting Pulley

420852590

$28.43

17

Washer-Lock Din.128

420945832

Unavailable

18

Socket Head Screw M8 X 12

420841520

$1.68

19

Loctite 243, 10 ml

293800060

$20.77

20

Not Available As Spare Part - Friction Washer

Unavailable

21

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

22

SEAL - Call your local BRP dealership

409208500

Unavailable

23

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

24

Tie Wrap 94 mm | 4X4

293750001

$0.83
