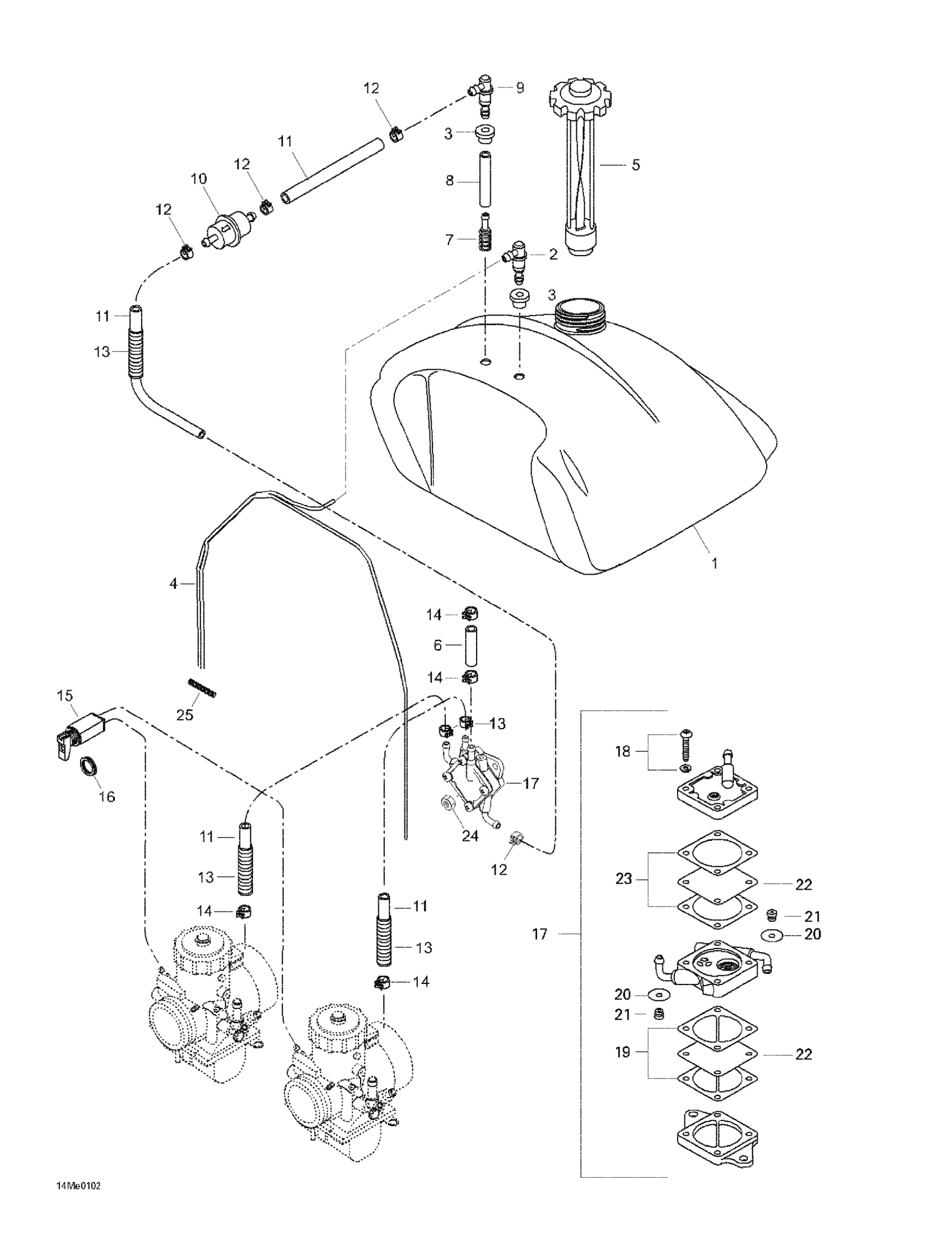

Ski-Doo Skandic 500F/600, 2001 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Male Connector This part replaces M533535.

533535

$17.88

3

Grommet

280000674

$4.28

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

Fuel Tank Cap

572161200

$35.79

6

Polyurethane Hose 10000Mm Long

219704410

$52.96

7

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

8

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

9

CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.

5341709

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

11

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

12

Spring Clamp

M27086

Unavailable

13

HOUSING - Call your local BRP dealership

M28012

Unavailable

14

Spring Clamp

414420700

$0.66

15

Choke This part replaces M535482.

535482

$67.13

16

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

17

Fuel Pump | Includes 17 - 23. Skandic 500F. Skandic 500F (SWT).

M19058

Unavailable

Fuel Pump

M19113

Unavailable

18

Screw | Skandic 500F. Skandic 500F (SWT).

404131600

Unavailable

19

GASKET - Call your local BRP dealership

404902300

Unavailable

20

GROMMET - Call your local BRP dealership

404902100

Unavailable

21

VALVE - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404900300

Unavailable

22

DIAPHRAGM - Call your local BRP dealership

404902200

Unavailable

23

GASKET - Call your local BRP dealership

404902400

Unavailable

24

Elastic Stop Nut M6

232561414

$1.78

25

Spring

M35005

Unavailable
