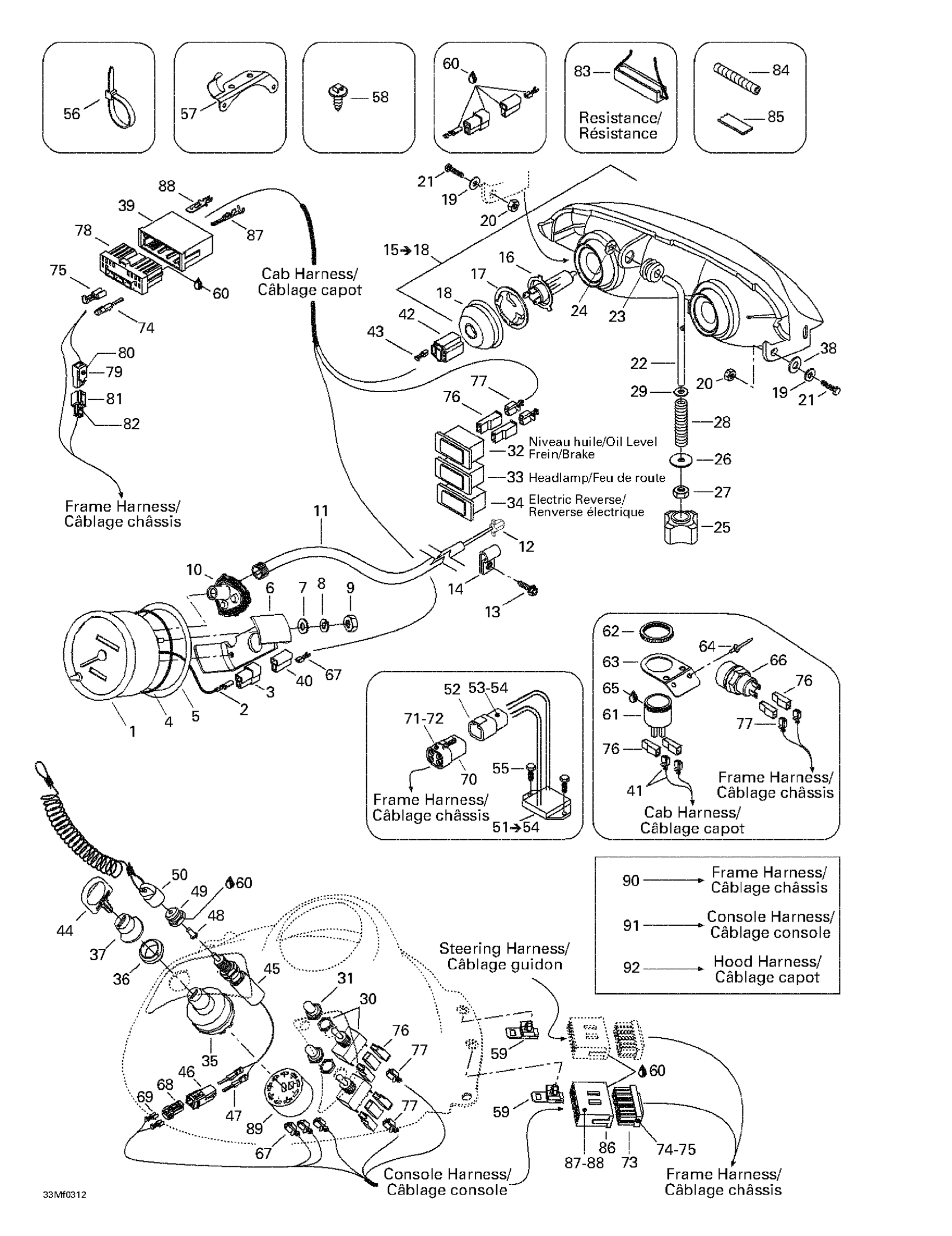

Ski-Doo Skandic 500F, 2003 Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

O-Ring

414807100

Unavailable

5

Washer

517258500

Unavailable

6

Case Holder

414806500

Unavailable

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Lock Washer

414806700

Unavailable

9

Nut

414806900

Unavailable

10

Drive Angle

515175400

Unavailable

11

Speedometer Cable

415101500

Unavailable

12

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Open Clamp

414176000

$1.86

15

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

17

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

18

COVER - Call your local BRP dealership

515175911

Unavailable

19

Flat Washer M5

234051410

Unavailable

20

NUT M5 - Call your local BRP dealership

250100018

Unavailable

21

Hex. Screw M5 X 35

207053544

Unavailable

22

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

23

Grommet - Call your local BRP dealership

415100800

Unavailable

24

Push Nut

732610072

Unavailable

25

Handle - Call your local BRP dealership

515175548

Unavailable

26

Washer

224060251

Unavailable

27

Elastic Stop Nut M6

232561414

Unavailable

28

SPRING - Call your local BRP dealership

415100600

Unavailable

29

Flat Washer 6 mm

234061410

Unavailable

30

Switch (Heating Grip) | FREERIDE

410107300

$34.58

31

Switch Cover

515175281

$15.03

32

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

33

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

34

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

35

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

36

FACE NUT - Call your local BRP dealership

410112100

$14.29

37

Switch Boot

570013700

Unavailable

38

Flat Washer 10 mm

234001410

Unavailable

39

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

40

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

41

FEMALE TERMINAL - Call your local BRP dealership

409010600

$5.35

42

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

43

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

44

Blank Key

415129350

Unavailable

45

Brake Switch

515175653

$15.57

46

Male Terminal Housing, 2 Circuits

515175654

$7.48

47

Male Terminal

515175232

$1.49

48

Plunger Cap

570151100

$10.14

49

Switch Nut

515145900

$10.83

50

Cap Ass'y

515178283

$37.66

51

VOLTAGE REGULATOR - Call your local BRP dealership | Includes 27 to 30

515175655

Unavailable

52

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

53

Male Terminal

515175568

$7.48

54

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

55

Hex. Flange Screw M6 X 16

210261650

$1.22

56

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

57

Cable Support

515175254

Unavailable

58

Mount Dart

293730040

$0.86

59

Housing Support

515175283

$8.43

60

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

61

HORN - Call your local BRP dealership

515176035

Unavailable

62

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

63

PLATE - Call your local BRP dealership

515175688

Unavailable

64

Pop Rivet 3/16"

390402200

$0.26

65

Silicone Sealant 51388, 300 ml

296000309

Unavailable

66

Push Button

415130372

Unavailable

67

Female Terminal

561503100

Unavailable

68

Female Housing, 2 Circuits

515175658

Unavailable

69

Female Terminal

515175231

Unavailable

70

Female Terminal Housing, 4 Circuits

278001473

Unavailable

71

Female Lock, 4 Circuits

278001474

Unavailable

72

Female Terminal

515175567

$6.03

73

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

74

Female Terminal

515175231

Unavailable

75

Female Terminal

515175282

$6.43

76

Female Terminal Housing, 1 Circuit

409010400

$7.48

77

Female Terminal

409010100

$5.46

78

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

79

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

80

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

81

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

82

Female Terminal

515175282

$6.43

83

Resistance

515175241

Unavailable

84

Tubing 6 Mm 3000Mm Long

219704425

$13.14

Tubing 10 MM 1000MM Long

219704407

Unavailable

Was 409901800 Tubing (13 mm)

219704400

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

85

Tape

293740005

Unavailable

86

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

87

Male Terminal

515175232

$1.49

88

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

89

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

90

Frame Harness, Not Shown | Includes 34 - 510.

515175841

Unavailable

91

Console Harness, Not Shown

515175623

Unavailable

92

Hood Harness, Not Shown

515175847

Unavailable
