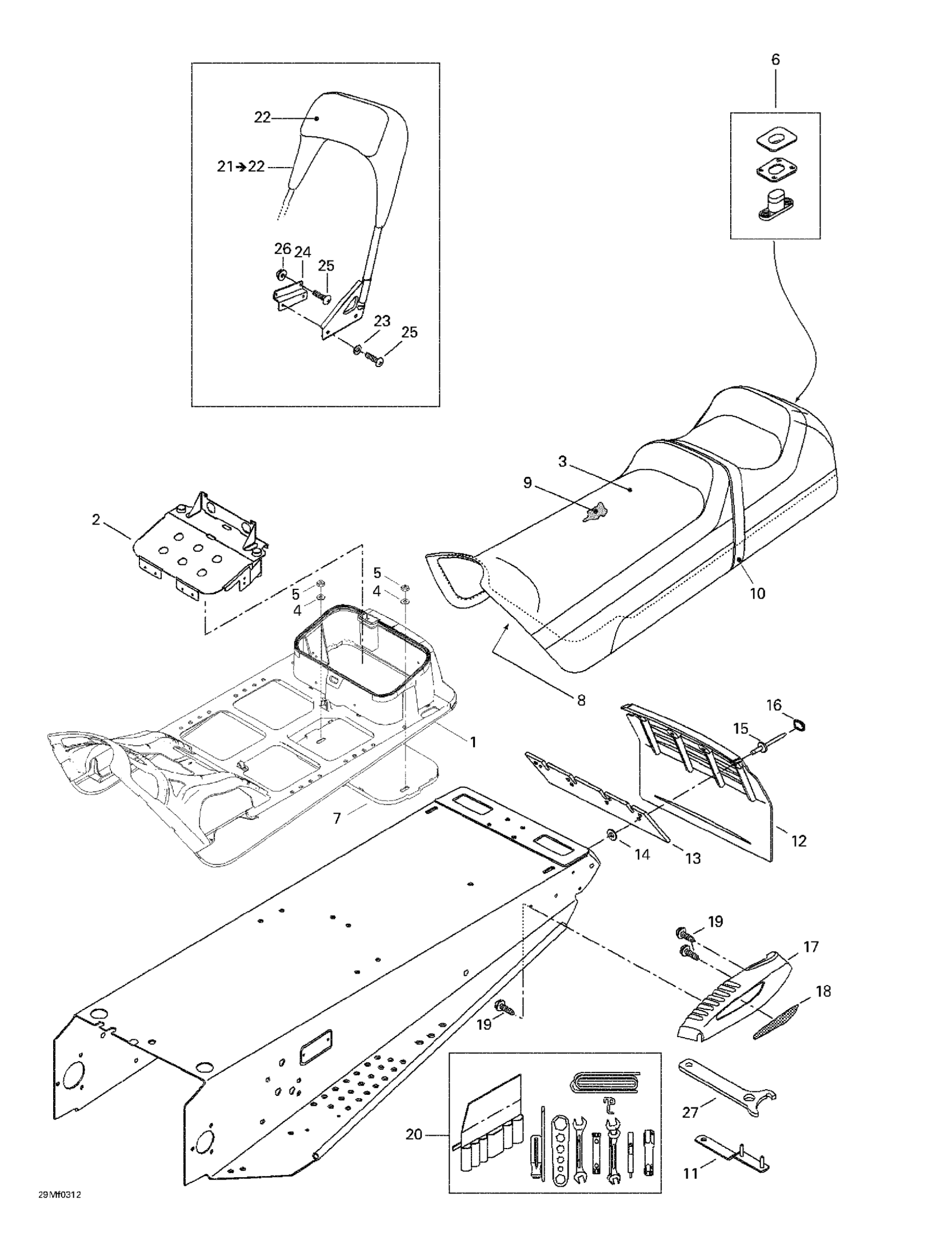

Ski-Doo Skandic 500F, 2003 Seat And Accessories Diagram
#
Description
Price
1
Sub-Seat
510003980
Unavailable
2
Seat Painted Support
510003976
Unavailable
3
SEAT COVER - Call your local BRP dealership
510004105
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
7
UNDER CHEST - Call your local BRP dealership
572107601
Unavailable
8
SEAT FOAM - Call your local BRP dealership
510003944
Unavailable
9
Seat Foam, Top
510003981
Unavailable
10
Seat Belt
510004038
Unavailable
11
Adjustment Wrench | LT
520000126
Unavailable
12
Snow Guard
520000000
Unavailable
13
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
15
Pop Rivet 3/16”
293150087
Unavailable
16
Cap
415073300
Unavailable
17
RH Moulding
861780300
Unavailable
LH Moulding
861780400
Unavailable
18
RH Reflector, Red
516000237
Unavailable
LH Reflector, Red
516000238
Unavailable
19
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
20
Tool Kit | Includes 12 to 13
529035596
Unavailable
21
Seat Backrest Ass’Y | GT 380F, Includes Items 25 to 26
510004068
Unavailable
22
Backrest Cover | GT 380F
510004071
Unavailable
23
Lock Washer 8 mm, Stainless
234181601
Unavailable
24
Z-Plate | GT 380F
510003609
Unavailable
25
Hex. Screw M8 X 20
236282084
Unavailable
26
Hex. Flange Elastic Nut M8
233281414
Unavailable
27
Adjustment Wrench
529000035
Unavailable
