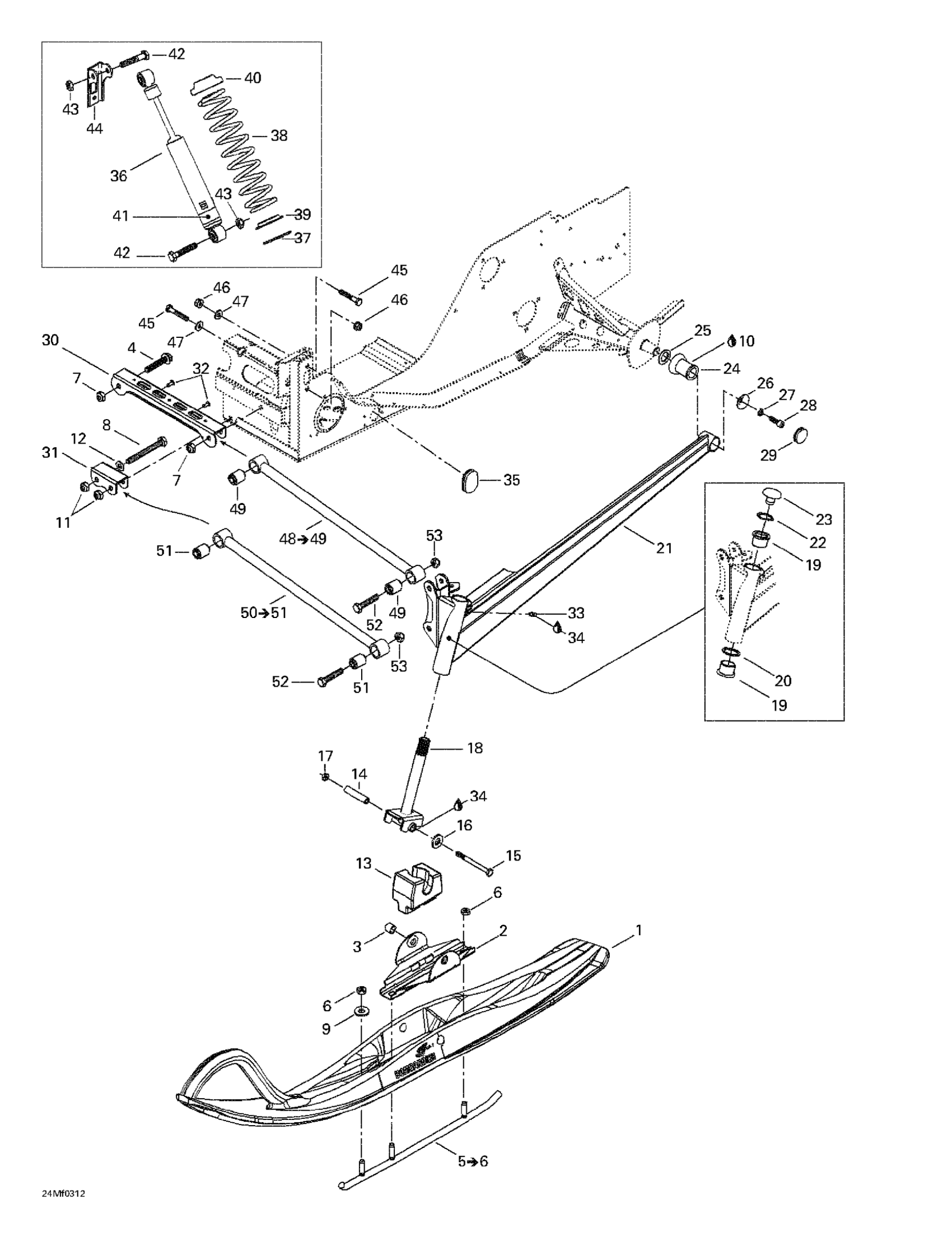

Ski-Doo Skandic 500F, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

Unavailable

2

BRIDGE ASS'Y - Call your local BRP dealership

505070980

Unavailable

3

Bushing

505071033

Unavailable

4

Hex. Flange Screw M10 X 55

207605544

Unavailable

5

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

Unavailable

6

Hex. Flange Elastic Nut M8

233281414

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.68

8

Hex. Screw M10 X 95

207009544

Unavailable

9

Flat Washer 8 mm

234082410

$1.11

10

Grease, Super Lube

293550030

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Flat Washer 10 mm

234001410

Unavailable

13

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

14

Spacer

506133300

Unavailable

15

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

16

Flat Washer 10 mm

234001410

Unavailable

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Ski Leg

506151234

Unavailable

19

Cushion

505070003

Unavailable

20

WASHER - Call your local BRP dealership

505070004

Unavailable

21

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

22

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

23

Cap

572091300

$8.97

24

DAMPER - Call your local BRP dealership

570062200

Unavailable

25

WASHER - Call your local BRP dealership

503146700

$4.42

26

Cup | Package Hunter

705007171

Unavailable

27

Lock Washer 8 mm

234181401

Unavailable

28

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

29

CAP - Call your local BRP dealership

572045900

Unavailable

30

Upper Arm Bracket

505070010

Unavailable

31

Lower Arm Bracket

505070011

Unavailable

32

Pop Rivet 3/16"

390402200

$0.26

33

Grease Fitting

408200700

Unavailable

34

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

35

Black, Nylon Cap

414916600

$4.32

36

Front Shock

505070695

Unavailable

37

WASHER - Call your local BRP dealership

505070401

Unavailable

38

Spring

505070393

Unavailable

39

Spring Guide

503187500

Unavailable

40

Spring Stopper

706200881

$10.30

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Hex. Screw M10 X 55

207005544

$1.85

43

Elastic Locking Nut M10 X 1.5

233601416

$1.68

44

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

45

Hex. Screw M8 X 50

207085044

Unavailable

46

Hex. Flange Elastic Nut M8

233281414

Unavailable

47

Washer

506151245

Unavailable

48

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

49

Bushing

505070025

Unavailable

50

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

51

Bushing

505070025

Unavailable

52

Hex. Screw M10 X 55

207005544

$1.85

53

Elastic Locking Nut M10 X 1.5

233601416

$1.68
