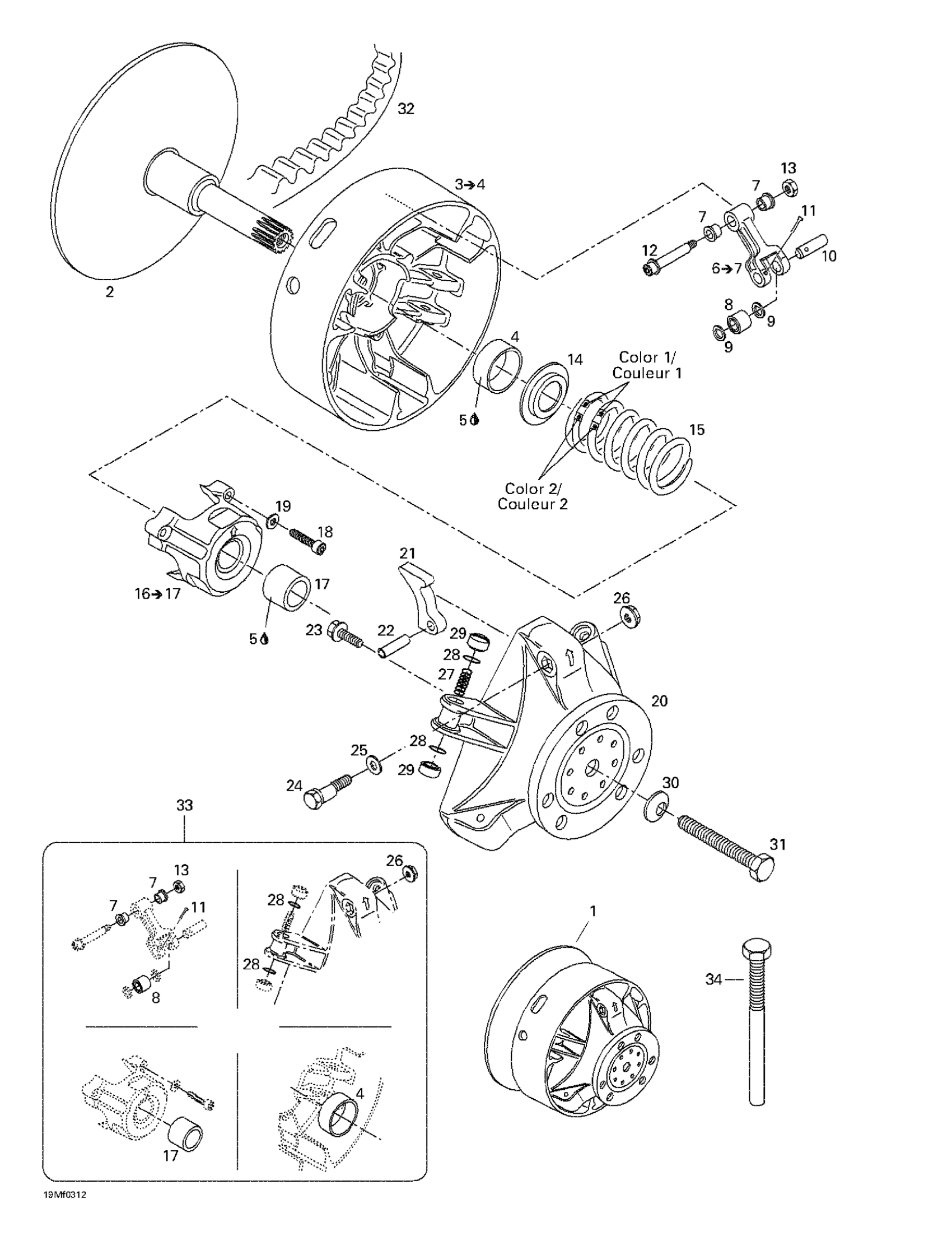

Ski-Doo Skandic 500F, 2003 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE - Call your local BRP dealership

417222412

Unavailable

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

4

Bushing

417004201

Unavailable

5

Loctite 609, 10 ml

413703100

$24.58

6

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

7

Bushing

417004305

Unavailable

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417004309

Unavailable

11

Cotter Pin

250400060

$1.60

12

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

13

Elastic Stop Nut M6

232561414

Unavailable

14

Spring Seat

417222044

Unavailable

15

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

$30.74

16

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

17

Bushing

417004501

Unavailable

18

Socket Head Screw M6 X 40

205000038

Unavailable

19

WASHER - Call your local BRP dealership

420245370

Unavailable

20

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

21

Ramp 296

417005296

Unavailable

22

Pin M8 X 24

732804009

Unavailable

23

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

24

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

25

Washer

417005600

$3.86

26

Hex. Flange Nut M6

233061414

Unavailable

27

Spring

417005700

Unavailable

28

O-Ring

732401030

$0.95

29

Slider Shoe This part replaces 420460045.

417223021

$6.09

30

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

31

BOLT - Call your local BRP dealership

417113800

Unavailable

32

Drive Belt

415060600

Unavailable

33

Clutch Repair Kit

417006100

Unavailable

34

Puller Inner Half

529007900

Unavailable
