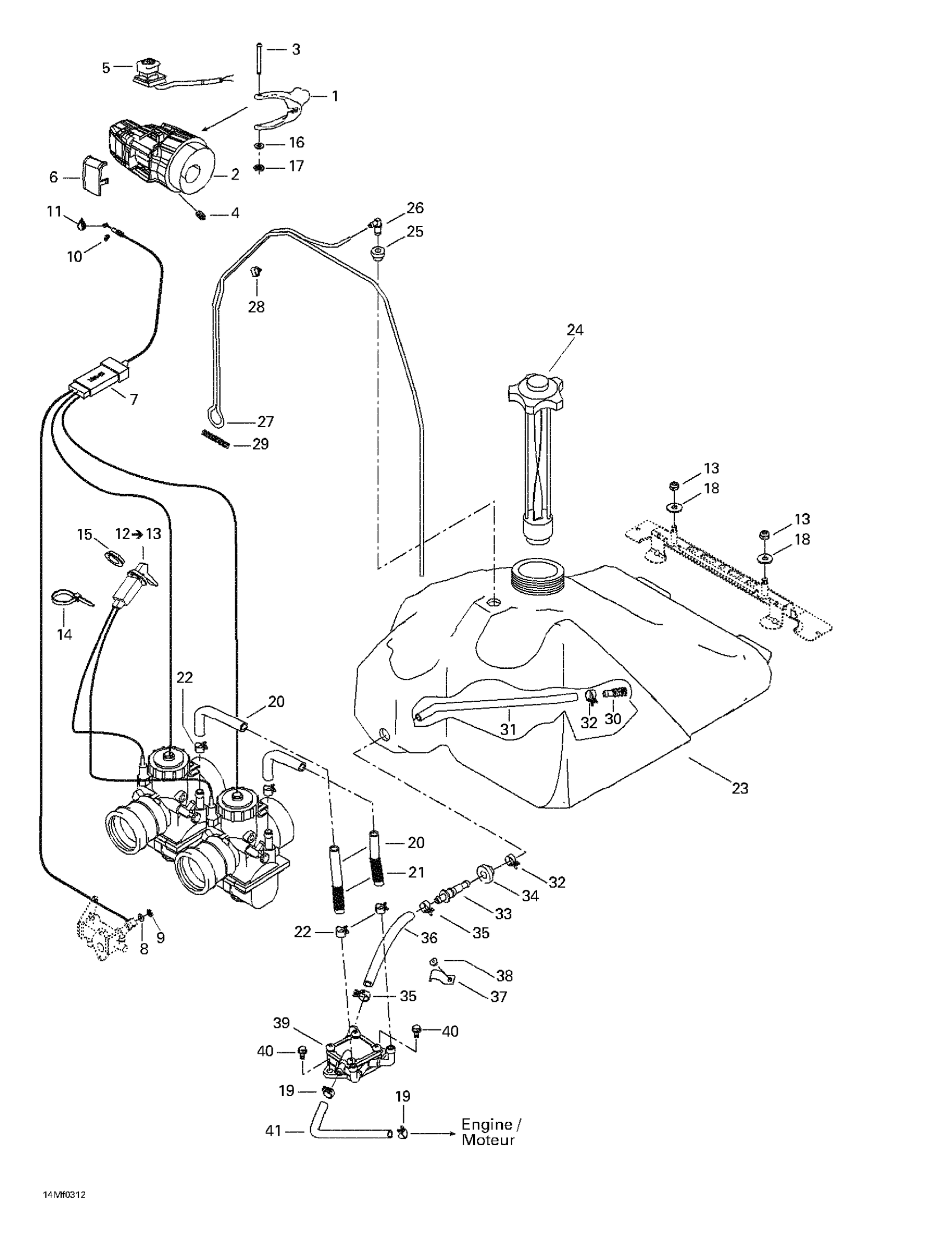

Ski-Doo Skandic 500F, 2003 Fuel System Diagram
#
Description
Price
1
Handle Ass'y
512060214
Unavailable
2
Throttle Handle Housing
572100900
Unavailable
5
Kill Switch
515175410
Unavailable
6
Switch Cover
572100901
Unavailable
7
THROTTLE CABLE - Call your local BRP dealership
512059625
Unavailable
10
Circlip
414274500
Unavailable
11
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
12
CHOKE CABLE - Call your local BRP dealership
512059441
Unavailable
13
Hex. Elastic Stop Nut M8
232581414
Unavailable
14
Tie-Rap 173 mm
293750009
Unavailable
15
PLASTIC NUT - Call your local BRP dealership
512059094
Unavailable
17
Circlip | Model-RS
414439000
Unavailable
20
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership
219704422
Unavailable
21
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
22
Universal Spring Clamp
513033029
Unavailable
23
Fuel Tank
513032987
Unavailable
27
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
28
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
29
SPRING - Call your local BRP dealership
414818200
Unavailable
32
Norma Spring Clamp
513033010
Unavailable
33
Male Connector
414872700
Unavailable
34
Grommet | Europe
707800347
Unavailable
35
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
38
Pop Rivet 3/16"
293150103
Unavailable
39
Fuel Pump
403901813
Unavailable
41
Hose
219704549
Unavailable
