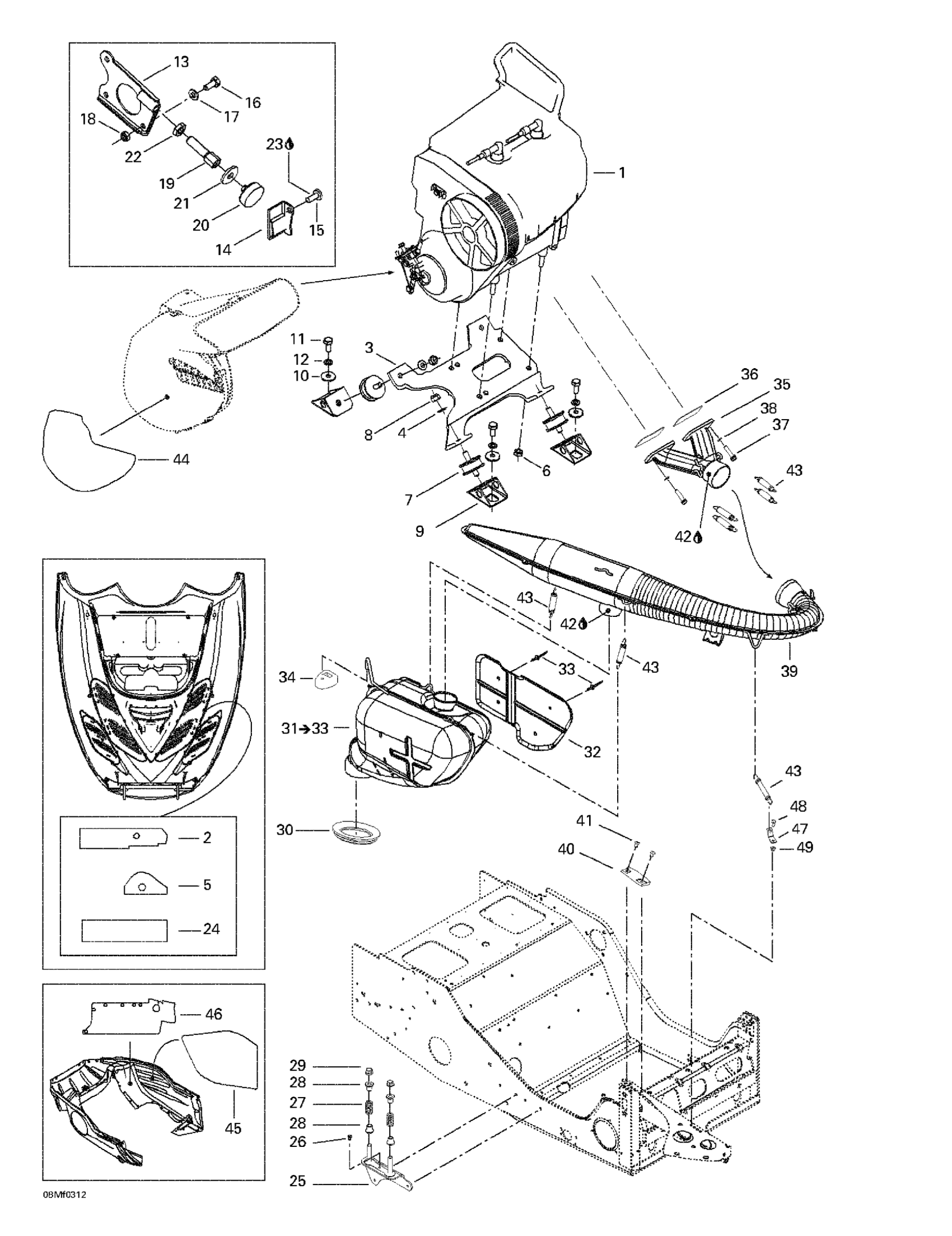

Ski-Doo Skandic 500F, 2003 Engine Support And Muffler Diagram
#
1
Engine 503F
400509728
Unavailable
2
Reflective Sheet, Black Cab
514053435
Unavailable
3
Engine Support
512059397
Unavailable
4
Flat Washer 10 mm
234001410
Unavailable
5
Reflective Sheet, Black Cab
514053446
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
9
Engine Support
512050900
Unavailable
10
Lock Washer
512056700
Unavailable
11
Hex. Screw M10 X 25
207102544
Unavailable
12
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
13
Welded Plate
512059446
Unavailable
14
Welded Plate | 380 F.
512059399
Unavailable
15
Hex. Screw M8 X 20
236282084
Unavailable
17
Flat Washer 8 mm
234081410
Unavailable
18
Hex. Elastic Stop Nut M8
232581414
Unavailable
19
STOPPER SCREW - Call your local BRP dealership
512058800
Unavailable
20
Stopper
512059056
Unavailable
21
WASHER - Call your local BRP dealership
512059057
Unavailable
22
Nut Hexagonal RH.
232026414
Unavailable
23
Loctite 271, 10 ml
293800005
Unavailable
24
Reflective Sheet
514053392
Unavailable
25
Muffler Bracket
514053263
Unavailable
29
Lock Spring Nut M8
233481413
Unavailable
30
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
31
Muffler Ass’Y | 550F, Includes Items 27 to 29
514053648
Unavailable
32
Heat Shield
514053389
Unavailable
35
Exhaust Manifold
420673060
Unavailable
36
Gasket 1.0 mm
420831849
Unavailable
37
Socket Head Screw M8 X 30
250083044
Unavailable
38
Lock Washer 8 mm
234181401
Unavailable
39
Calibration Tube | 380F
514053243
Unavailable
40
Rubber Pad
570044100
Unavailable
41
Pop Rivet 3/16"
293150103
Unavailable
42
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
44
Reflective Sheet
514053363
Unavailable
45
Reflective Sheet
514052718
Unavailable
46
REFLECTIVE SHEET - Call your local BRP dealership
514053390
Unavailable
48
Hex. Screw M5 X 12
207151244
Unavailable
49
Hex. Flange Elastic Nut M5
233251414
Unavailable
