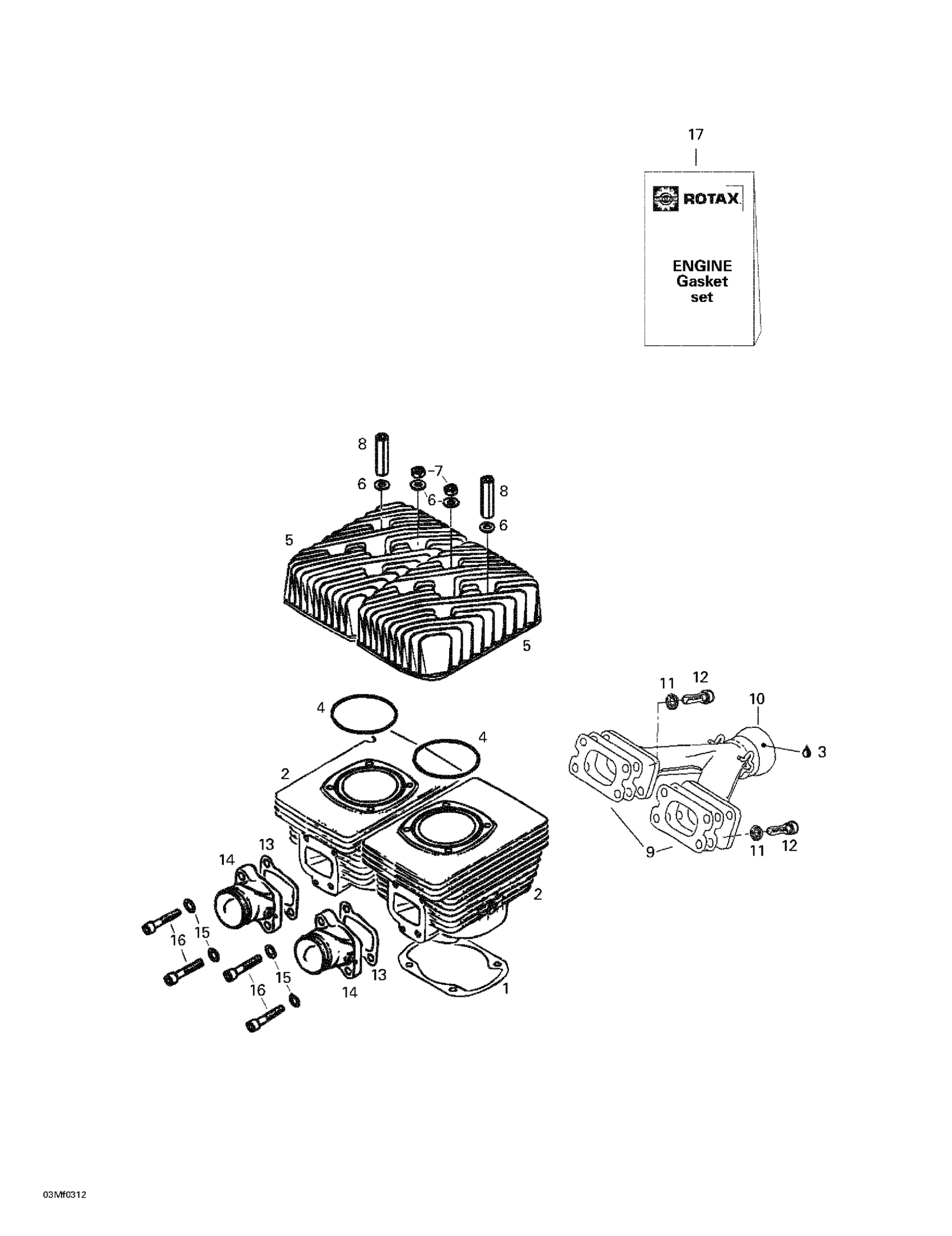

Ski-Doo Skandic 500F, 2003 Cylinder, Intake, Exhaust Manifold Diagram
#
Description
Price
1
Gasket 0.4 mm
420831858
Unavailable
2
REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.
421000500
Unavailable
2
REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.
421000500
Unavailable
3
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
4
O-Ring This part replaces 420850540.
293300026
Unavailable
5
CYLINDER HEAD - Call your local BRP dealership
420923590
Unavailable
6
Flat Washer 8.4 mm
420250315
Unavailable
7
Hex. Nut M8
232081414
Unavailable
8
Distance Nut M8 X 47
420842204
Unavailable
9
Gasket 1.0 mm
420831849
Unavailable
10
Exhaust Manifold
420673060
Unavailable
11
Lock Washer 8 mm
234181401
Unavailable
12
Socket Head Screw M8 X 30
205083044
Unavailable
13
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
14
INTAKE SOCKET ASS?Y - Call your local BRP dealership
420867408
Unavailable
15
Washer-Lock Din.128
420945832
Unavailable
16
Allen Screw M8 X 40
420840682
Unavailable
17
ENGINE GASKET SET - Call your local BRP dealership
420994238
Unavailable
