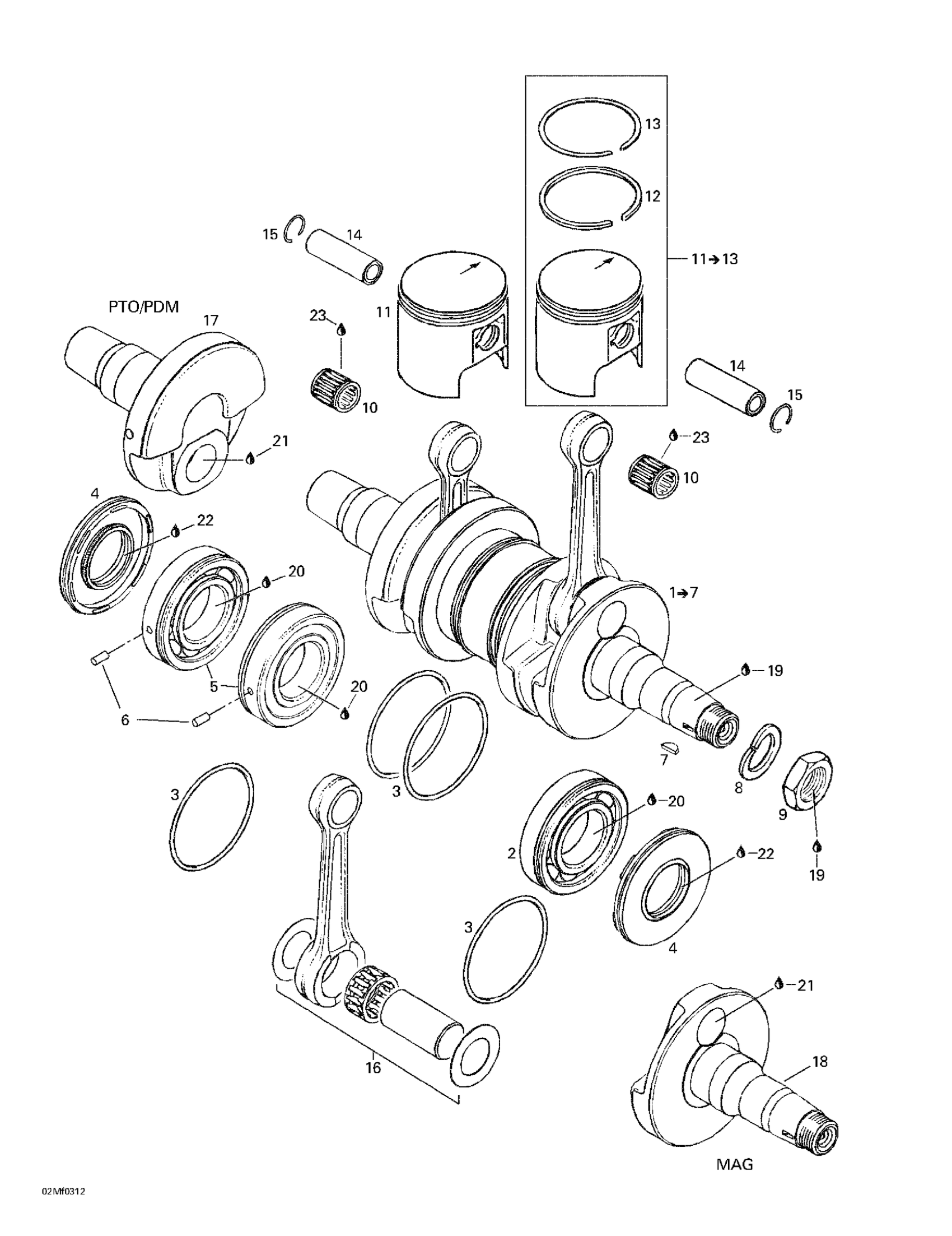

Ski-Doo Skandic 500F, 2003 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft Ass’Y | Includes 1 - 7.
420888391
Unavailable
REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership
421000155
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
BALL BEARING - Call your local BRP dealership
420832574
Unavailable
6
Dowel Pin
420929972
Unavailable
7
Woodruff Key
420246055
Unavailable
8
Lock Washer, 22 mm
420945759
Unavailable
9
Hex. Nut, M22 X 1.5
420842239
Unavailable
10
Needle Bearing
420832320
Unavailable
11
Piston 71.91, Std | 22 to 24 This part replaces 420888175.
420890070
Unavailable
Piston 72.16, 1st Oversize This part replaces 420888176.
420890071
Unavailable
Piston 72.41, 2nd Oversize This part replaces 420888177.
420890072
Unavailable
12
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
420915850
Unavailable
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership
420915851
Unavailable
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership
420915852
Unavailable
13
SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership
420815200
Unavailable
SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership
420815201
Unavailable
SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership
420815202
Unavailable
14
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Rod Repair Kit
420996394
Unavailable
17
CRANKSHAFT HALF PTO - Call your local BRP dealership
420818244
Unavailable
18
CRANKSHAFT HALF MAG - Call your local BRP dealership
420819020
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
21
Sealant Loctite 648
219703000
Unavailable
23
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
