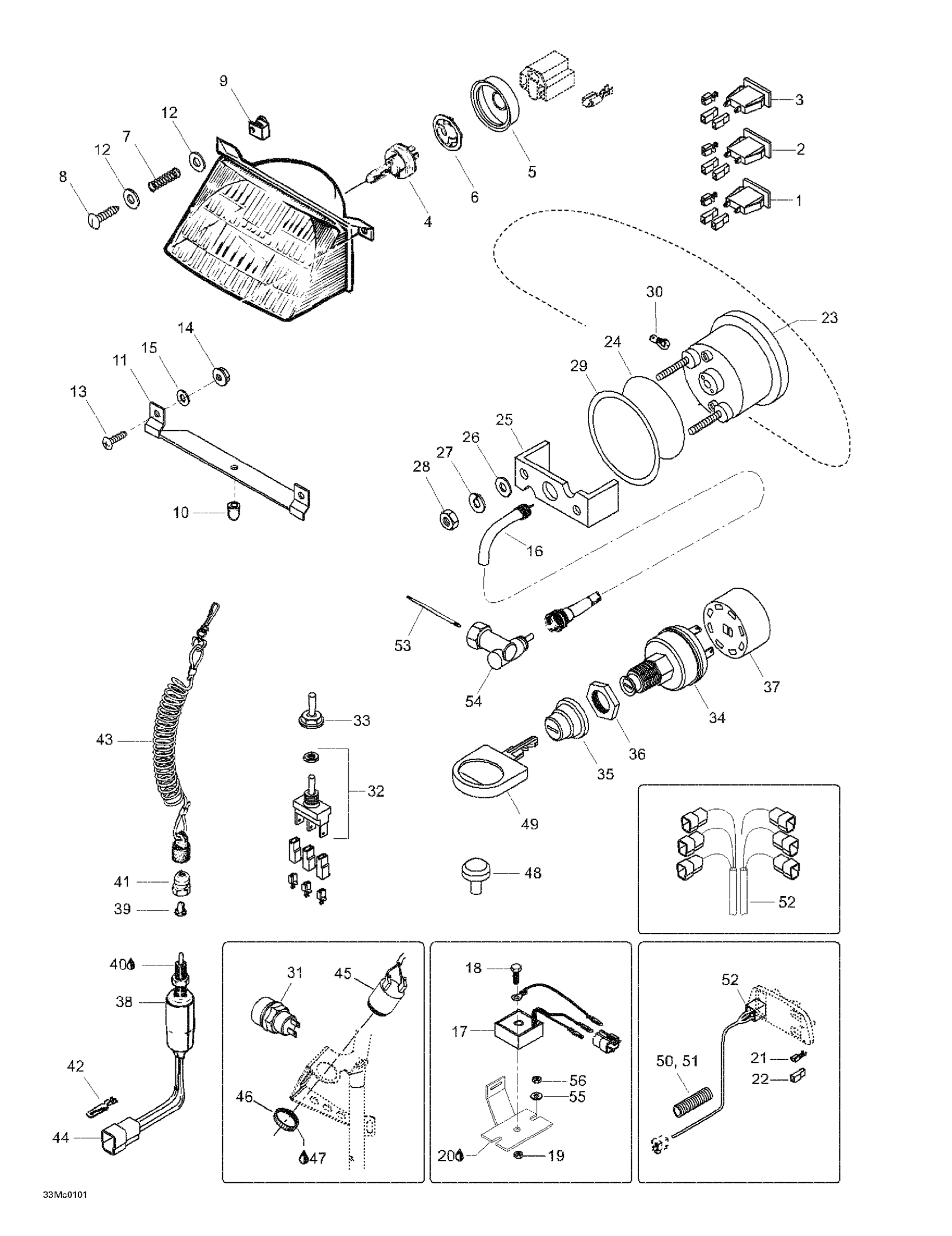

Ski-Doo Skandic 440F, 2001 Electrical System Diagram
#
2
Pilot Lamp (Blue)
410109600
Unavailable
3
Pilot Lamp (Red)
410109500
Unavailable
4
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
5
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
7
Spring
517168600
Unavailable
8
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership
243244040
Unavailable
9
Projector Nut
572078600
Unavailable
11
HOLDER - Call your local BRP dealership
M539864
Unavailable
12
Washer
M20001
Unavailable
13
Screw M5 X 16
M40247
Unavailable
14
Elastic Stop Nut M5
232551414
Unavailable
15
Washer 5,3 mm
20008
Unavailable
16
Speedometer Cable
M45006
Unavailable
17
Volt Regulator Ass'y
M5446342
Unavailable
18
Hex. Screw
M40003
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Grease Tube Lmz, 400 G
413707500
Unavailable
23
Speedometer, Kmh
515175335
Unavailable
24
O-Ring
414807100
Unavailable
25
Case Holder
414806500
Unavailable
27
Lock Washer
414806700
Unavailable
28
Nut
414806900
Unavailable
29
Washer
517258500
Unavailable
30
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
31
Push Button
415130372
Unavailable
34
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
35
Switch Boot
570013700
Unavailable
37
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
40
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
42
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
44
Male Housing
M42268
Unavailable
45
HORN - Call your local BRP dealership
515176035
Unavailable
47
Silicone Sealant 51388, 300 ml
296000309
Unavailable
49
Blank Key
415129350
Unavailable
50
Housing
M28025
Unavailable
51
HOUSING - Call your local BRP dealership
M28012
Unavailable
52
Harness
M5145613
Unavailable
54
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.
35021
Unavailable
56
Elastic Stop Nut M6
232561414
Unavailable
