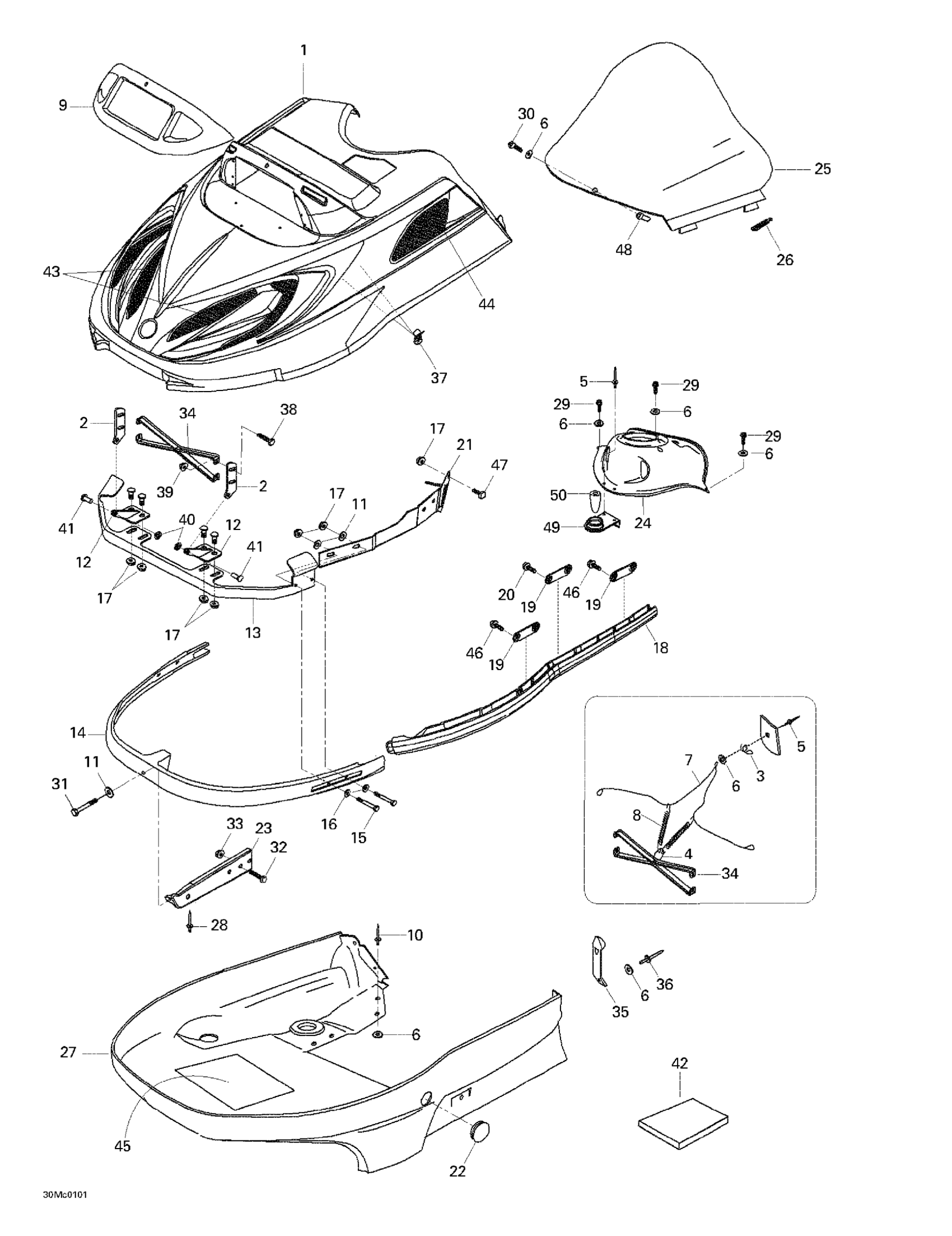

Ski-Doo Skandic 440F, 2001 Cab, Console Diagram

#

Description
Price

1

Hood

M5146256

Unavailable

2

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

3

Cable Keeper

M5442870

Unavailable

4

RING - Call your local BRP dealership

415058300

Unavailable

5

Rivet

36005

Unavailable

6

Washer 5,3 mm

20008

Unavailable

7

Retainer Cable | SUV 600

M5342674

Unavailable

8

Spring This part replaces M5442675.

5442675

Unavailable

9

Lamp Moulding

572079200

Unavailable

10

Rivet

36005

Unavailable

11

Flat Washer 6 mm

234062410

$0.64

12

Welded Lower Hinge

517289900

Unavailable

13

Painted Bracket Hinge

517265100

Unavailable

14

Front Bumper

517265400

Unavailable

15

Hex. Screw M6 X 30

207063044

Unavailable

16

Flat Washer

224061121

$0.44

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

LH Bumper

M5144964

Unavailable

RH Bumper

M5144965

Unavailable

19

Side Bracket

M5446213

Unavailable

20

Screw

M40322

Unavailable

21

LH Support

M5246399

Unavailable

RH Support

M5246400

Unavailable

22

Bottom Pan Cap

570277300

Unavailable

23

Front Support

M5246183

Unavailable

24

Dash

M5146854

Unavailable

25

Windshield

M5241686

Unavailable

26

Windshield Latch

570023800

Unavailable

27

Botton Pan

M5145054

Unavailable

28

Black, Rivet

M36036

Unavailable

29

Forming Screw M5 x 16

250000676

$0.83

30

Screw M5 X 30

M40358

Unavailable

31

Screw

M40867

Unavailable

32

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

Unavailable

34

Hood Reinforcement

517278100

Unavailable

35

BLACK LATCH - Call your local BRP dealership

570025900

Unavailable

36

Rivet This part replaces M36009.

36009

Unavailable

37

Clip

414227300

$1.45

38

Screw

M40074

Unavailable

39

NUT M5 - Call your local BRP dealership

M33062

Unavailable

40

Push Nut

389804300

$0.43

41

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

42

Acoustic Foam

414632400

Unavailable

43

RH Front Grill

M5246261

Unavailable

LH Front Grill

M5246262

Unavailable

44

LH Side Grill

M5346263

Unavailable

45

Sheet-reflector

M5444437

Unavailable

46

Screw

M40377

Unavailable

47

Screw

M5446813

Unavailable

48

NUT M5 - Call your local BRP dealership

250100018

Unavailable

49

Plate guide

M5446875

Unavailable

50

Guide Pin

M5446857

Unavailable
