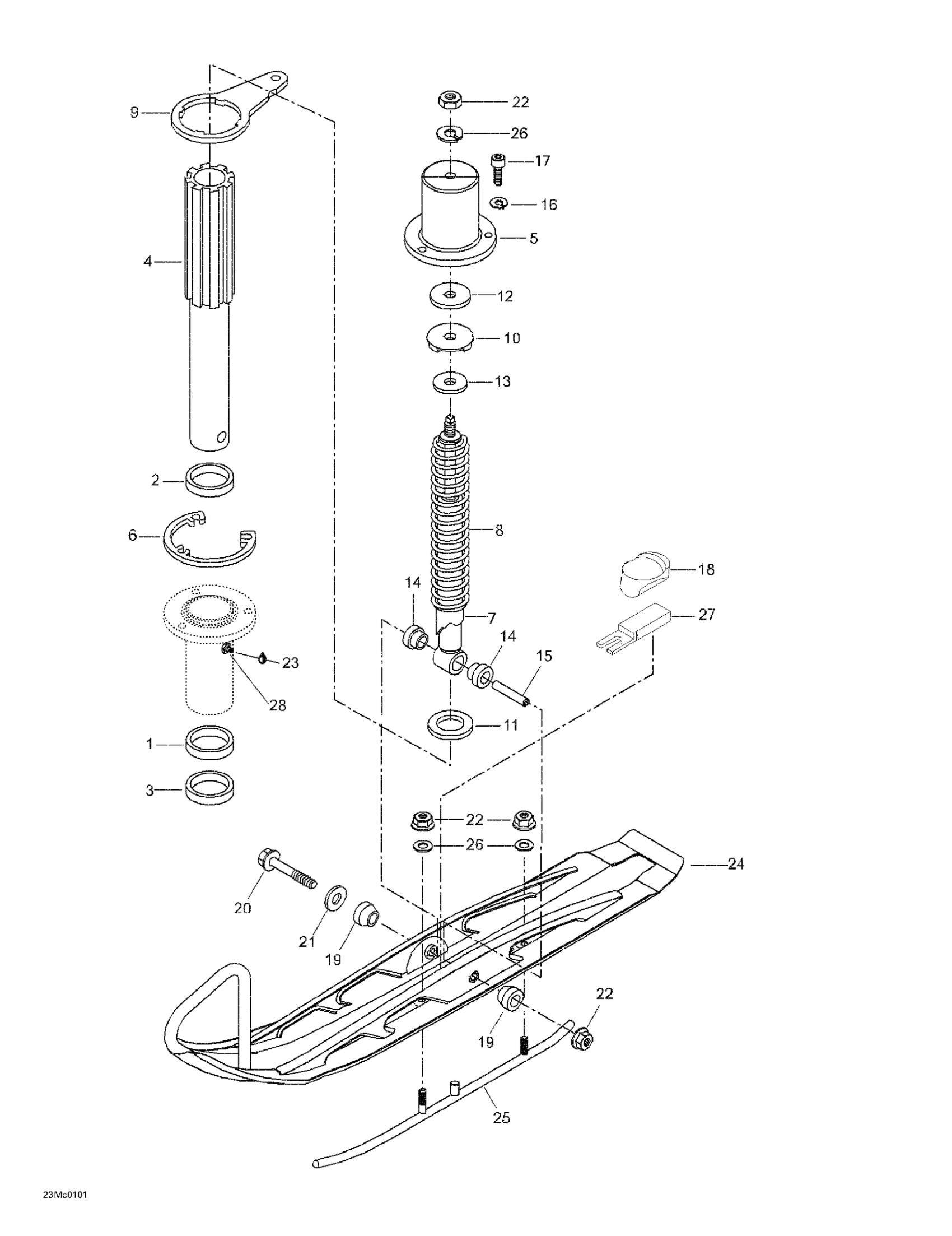

Ski-Doo Skandic 440F, 2001 Front Suspension And Ski Diagram
#
Description
Price
1
Lower Cushion
414803200
Unavailable
2
Upper Cushion
414803100
Unavailable
3
Seal - Call your local BRP dealership This part replaces M316373.
316373
Unavailable
4
Ski Leg
M5243952
Unavailable
5
Welded cover
M5240019
Unavailable
7
SHOCK - Call your local BRP dealership
414803600
Unavailable
8
Spring
M5240897
Unavailable
9
Steering Arm 8Te This part replaces M5340383.
5340383
Unavailable
10
Stopper
570025800
Unavailable
11
Washer This part replaces M549493.
549493
Unavailable
12
Absorberfibber washer - Call your local BRP dealership
605455680
Unavailable
13
Absorberfibber washer - Call your local BRP dealership
605455680
Unavailable
14
Cushion
572034500
Unavailable
15
Ski Cushion | SWT, WTLC This part replaces M549716.
549716
Unavailable
16
Lock Washer 8 mm
234181401
Unavailable
18
STOPPER - Call your local BRP dealership | SWT, WTLC
M5341750
Unavailable
19
Cone Rubber | SWT, WTLC This part replaces M547543.
547543
Unavailable
20
Hex. Screw M10 X 125 | SWT, WTLC
M40354
Unavailable
21
WASHER-BLACK - Call your local BRP dealership
M20012
Unavailable
23
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
24
Welded Ski | SWT, WTLC
M5245338
Unavailable
25
Ski runner
M5345694
Unavailable
26
Flat Washer 10 mm
234001410
Unavailable
27
Support Plate | SWT. WTLC
M5445639
Unavailable
28
Grease Fitting
M34019
Unavailable
29
Bushing
M5446614
Unavailable
30
Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.
31001
Unavailable
