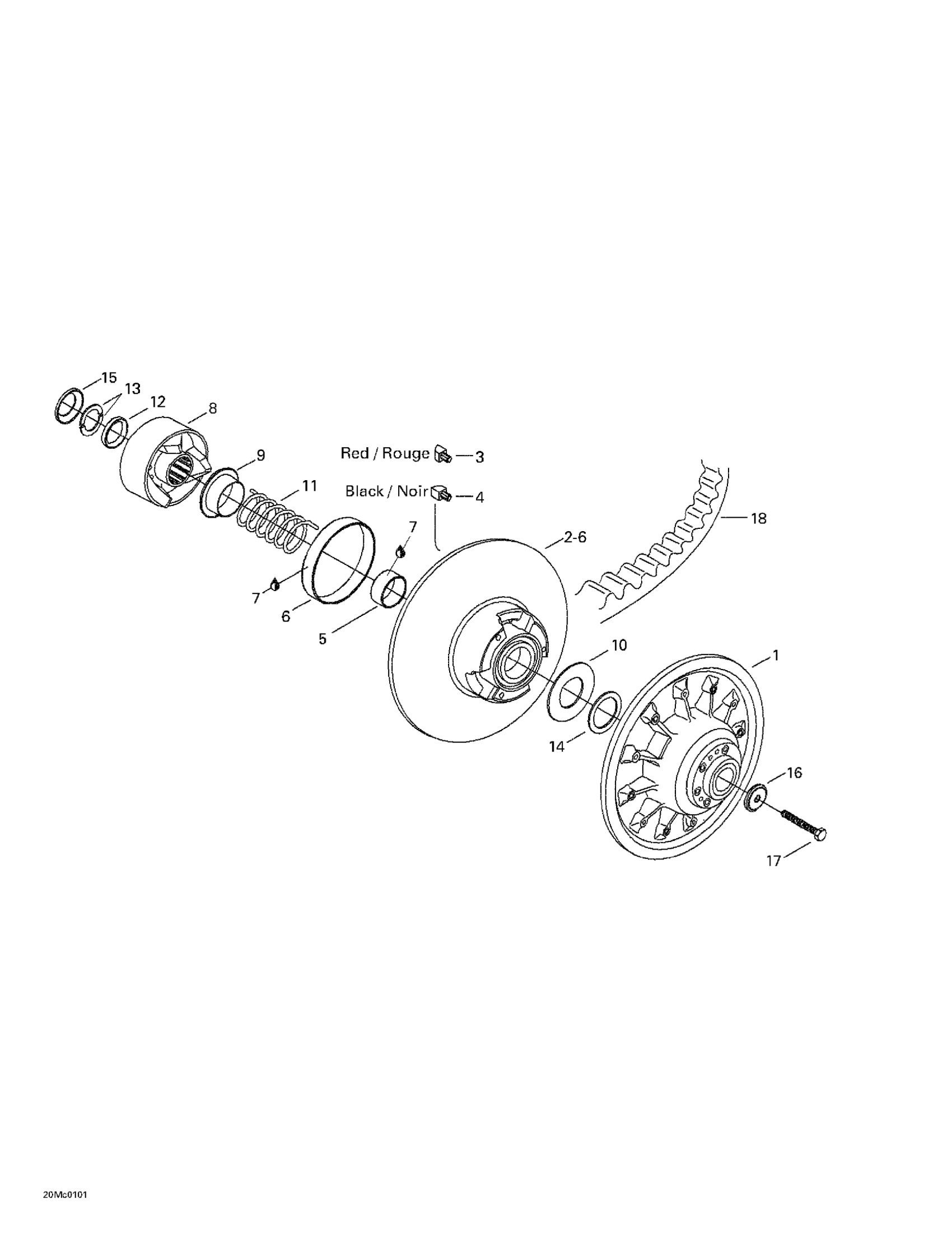

Ski-Doo Skandic 440F, 2001 Driven Pulley Diagram

#

Description
Price

1

FIXED FLANGE ASS'Y - Call your local BRP dealership

417126401

$241.51

2

Sliding Flange Ass'y | Includes 2 to 6

417126403

Unavailable

3

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

4

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.28

5

BUSHING - Call your local BRP dealership

417126901

Unavailable

6

Bushing

415092700

Unavailable

7

Loctite 609, 10 ml

413703100

$24.58

8

Cam Ass'y

417126457

$164.58

9

GUARD - Call your local BRP dealership

415006000

$6.12

10

STOPPER WASHER - Call your local BRP dealership

504099600

$4.86

11

YELLOW SPRING - Call your local BRP dealership

415092800

Unavailable

12

Spacer

417126368

Unavailable

13

HALF KEY - Call your local BRP dealership

371911000

$28.91

14

SHIM - Call your local BRP dealership

504112300

$5.68

15

Protector

417300055

Unavailable

16

Strength Washer

517302322

$11.09

17

Screw M8 X 80

M40012

$3.32

18

Drive Belt

414633800

$154.58
