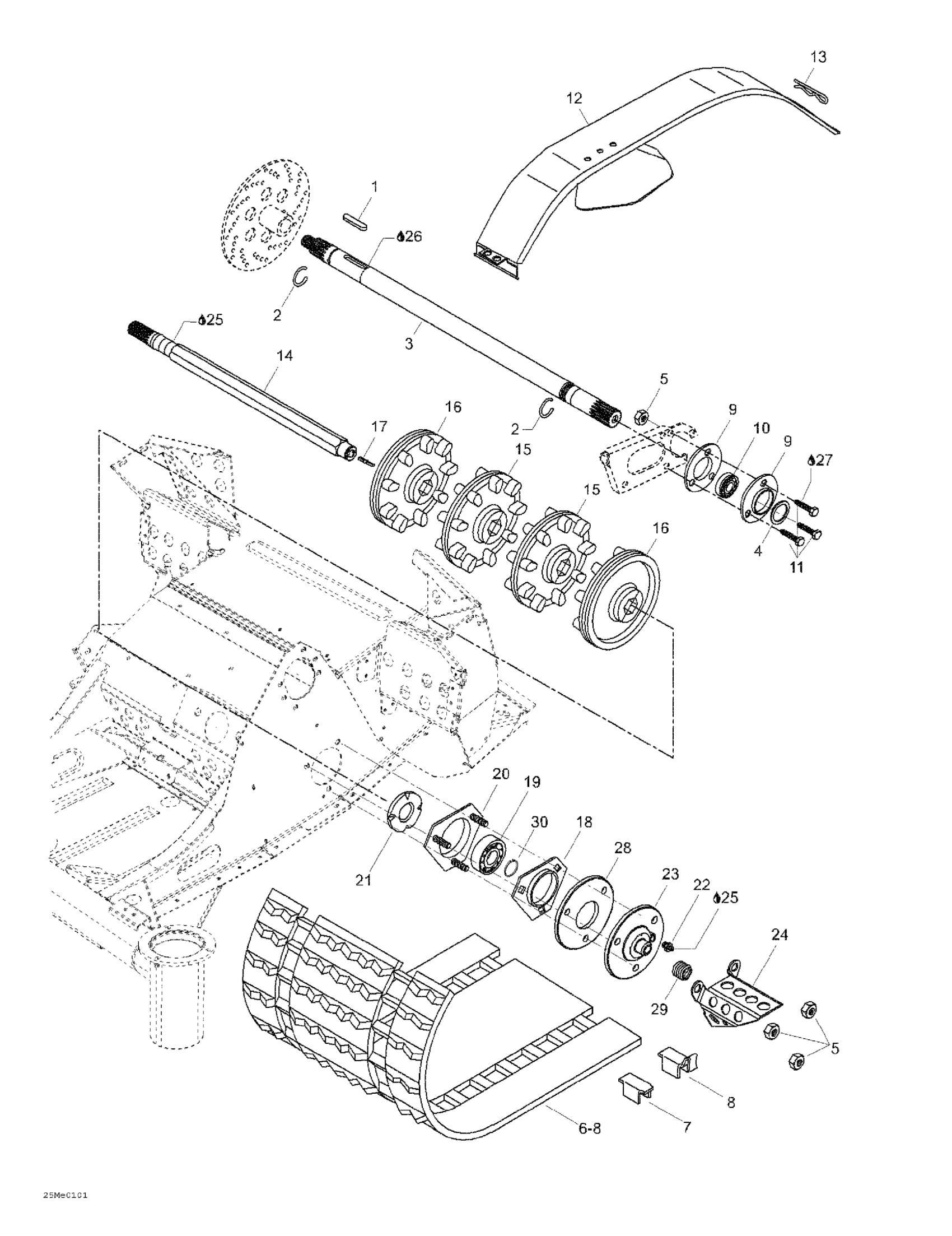

Ski-Doo Skandic 440F, 2001 Drive Axle And Track Diagram
#
Description
Price
1
Key
M418740
Unavailable
2
Circlip
371910000
Unavailable
3
SHAFT-COUNTER - Call your local BRP dealership
M5146089
Unavailable
4
Shim
M548001
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
TRACK-ASSY 15X156X1.00 - Call your local BRP dealership
M13057
Unavailable
7
CLEAT - Call your local BRP dealership
M5318329
Unavailable
8
CLEAT-GUIDE - Call your local BRP dealership
M5318330
Unavailable
9
Flange - Call your local BRP dealership This part replaces M5346237.
5346237
Unavailable
10
Bearing-Ball
405408900
Unavailable
11
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
12
Belt Guard
M5145964
Unavailable
13
Pin This part replaces M5442726.
5442726
Unavailable
14
Drive Axle
M5246310
Unavailable
15
Sprocket
M539750
Unavailable
16
SPROCKET - Call your local BRP dealership
M5342920
Unavailable
17
Speed Drive Insert This part replaces M542013.
542013
Unavailable
18
FLANGE - Call your local BRP dealership
501025000
Unavailable
19
Ball Bearing
293350060
Unavailable
20
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
21
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
22
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.
34011
Unavailable
23
Flange, Speedo Drive Insert
504151836
Unavailable
24
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
25
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
26
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
27
Loctite 271, 10 ml
293800005
Unavailable
28
Washer
M5446641
Unavailable
