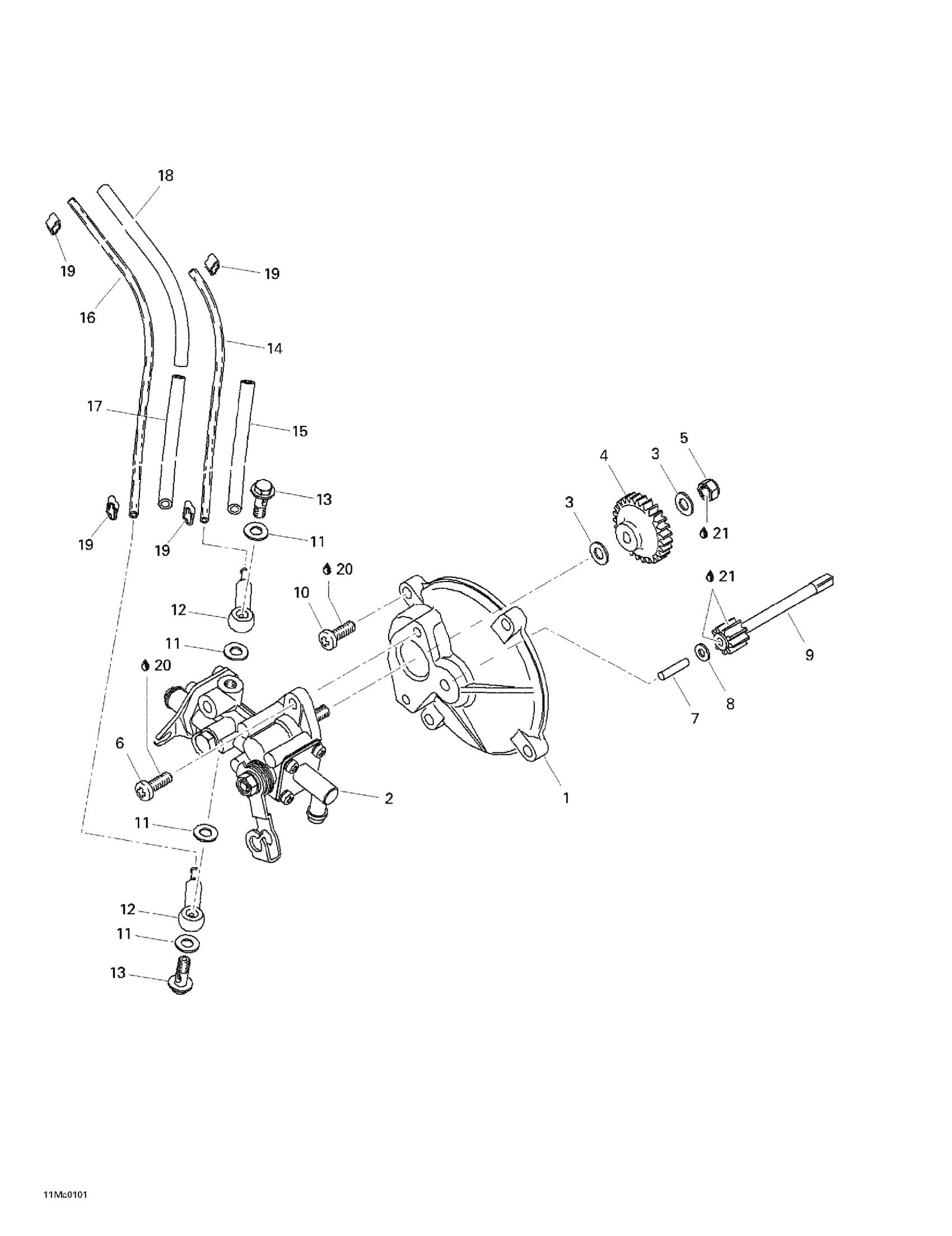

Ski-Doo Skandic 440F, 2001 Oil Injection System Diagram
#
Description
Price
1
PUMP MOUNTING FLANGE - Call your local BRP dealership
420910160
Unavailable
2
OIL PUMP ASS?Y - Call your local BRP dealership
420887996
Unavailable
3
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
4
Oil Pump Gear, 27 Teeth
420935930
Unavailable
5
Elastic Stop Nut M6
232561414
Unavailable
6
Screw
420841971
Unavailable
7
NEEDLE PIN - Call your local BRP dealership
420832260
Unavailable
8
Flat Washer 4
420244072
Unavailable
9
Gear, 9 Teeth
420935970
Unavailable
10
Screw
420841971
Unavailable
11
Sealing Washer
404146600
Unavailable
12
Valve Ass’Y
420956010
Unavailable
13
Banjo Bolt M6 X 16
404146800
Unavailable
14
Oil Hose 1500Mm Long
219704404
Unavailable
15
Isolation Line 90 mm | 380 F.
420960750
Unavailable
16
Oil Hose 1500Mm Long
219704404
Unavailable
17
Isolation Line
420960728
Unavailable
18
Hose 6 Mm 15000Mm Long
219704360
Unavailable
19
Clamp
420853840
Unavailable
