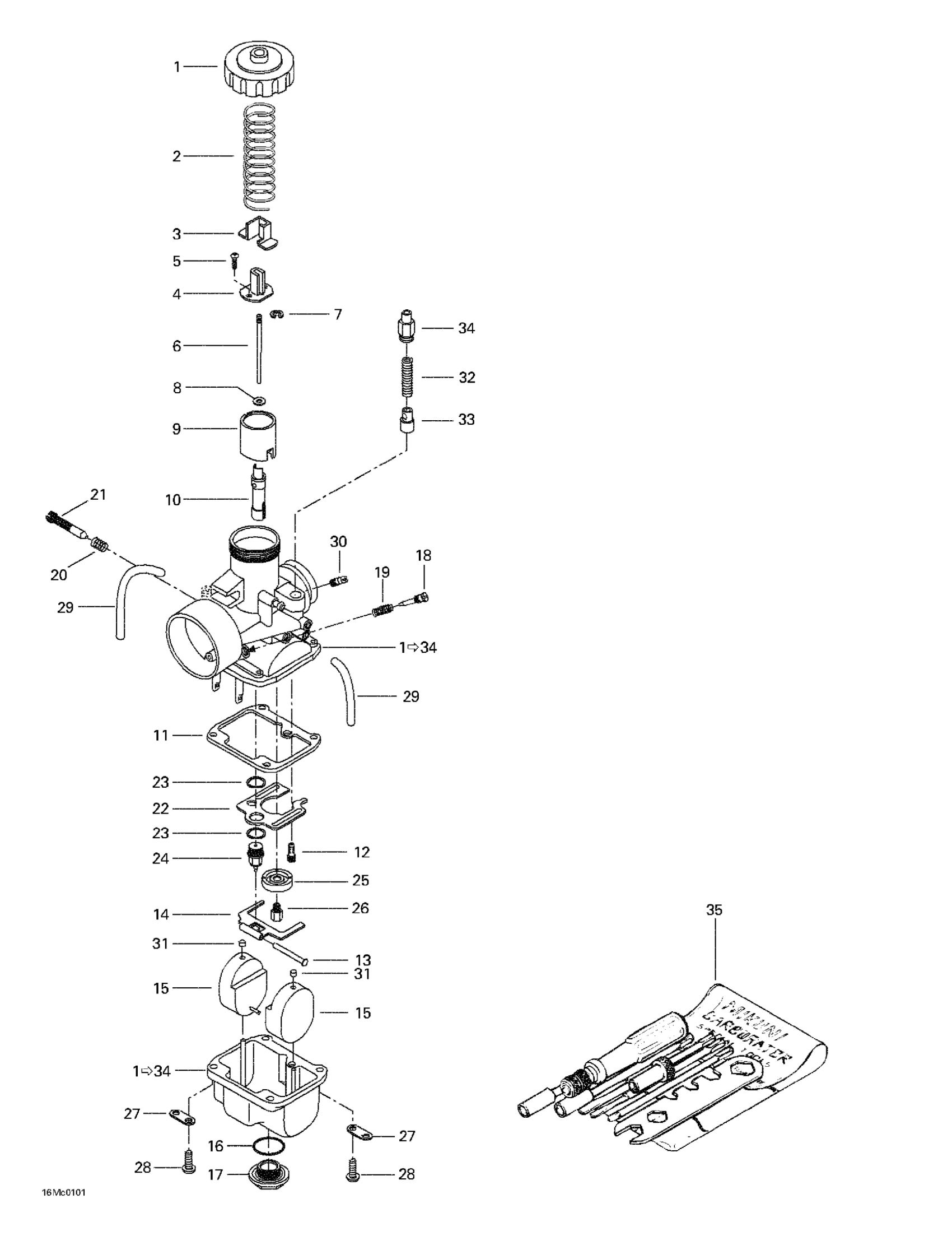

Ski-Doo Skandic 440F, 2001 Carburetors Diagram

#

Description
Price

1

Carburetor VM 32 | Includes 1 - 34.

M19110

Unavailable

1

Cover

404103700

$32.99

2

Spring

404154800

$24.99

3

Cover

404122100

$18.43

4

CONNECTOR - Call your local BRP dealership

404160800

$14.12

5

Screw With Washer

404121300

$4.29

6

Jet Needle J8 6DH2

404161876

Unavailable

7

E-Ring

404152400

$6.55

8

Packing

404117000

$3.39

9

Valve Piston 3.0

404158400

Unavailable

10

JET NEEDLE - Call your local BRP dealership

404131000

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

Pilot Jet 45

404109400

$5.29

13

Lever Pin

404103300

$6.39

14

Float Lever

404107600

$23.99

15

FLOAT - Call your local BRP dealership

404107100

$25.35

16

O-Ring

404107300

$8.14

17

Drain Plug Screw

404107400

$23.99

18

AIR SCREW - Call your local BRP dealership

404149000

$25.35

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.29

21

THROTTLE SCREW - Call your local BRP dealership

404125200

$11.98

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.31

24

Needle valve

404117700

Unavailable

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet 195

404119400

$5.19

27

PLATE - Call your local BRP dealership

404103000

$8.51

28

Screw With Lock Washer

404102000

$3.29

29

HOSE - Call your local BRP dealership

404161880

Unavailable

30

Nipple

404153400

$11.51

31

Cap

404105800

$6.49

32

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

33

PLUNGER ASS'Y - Call your local BRP dealership

404161000

$19.97

34

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
