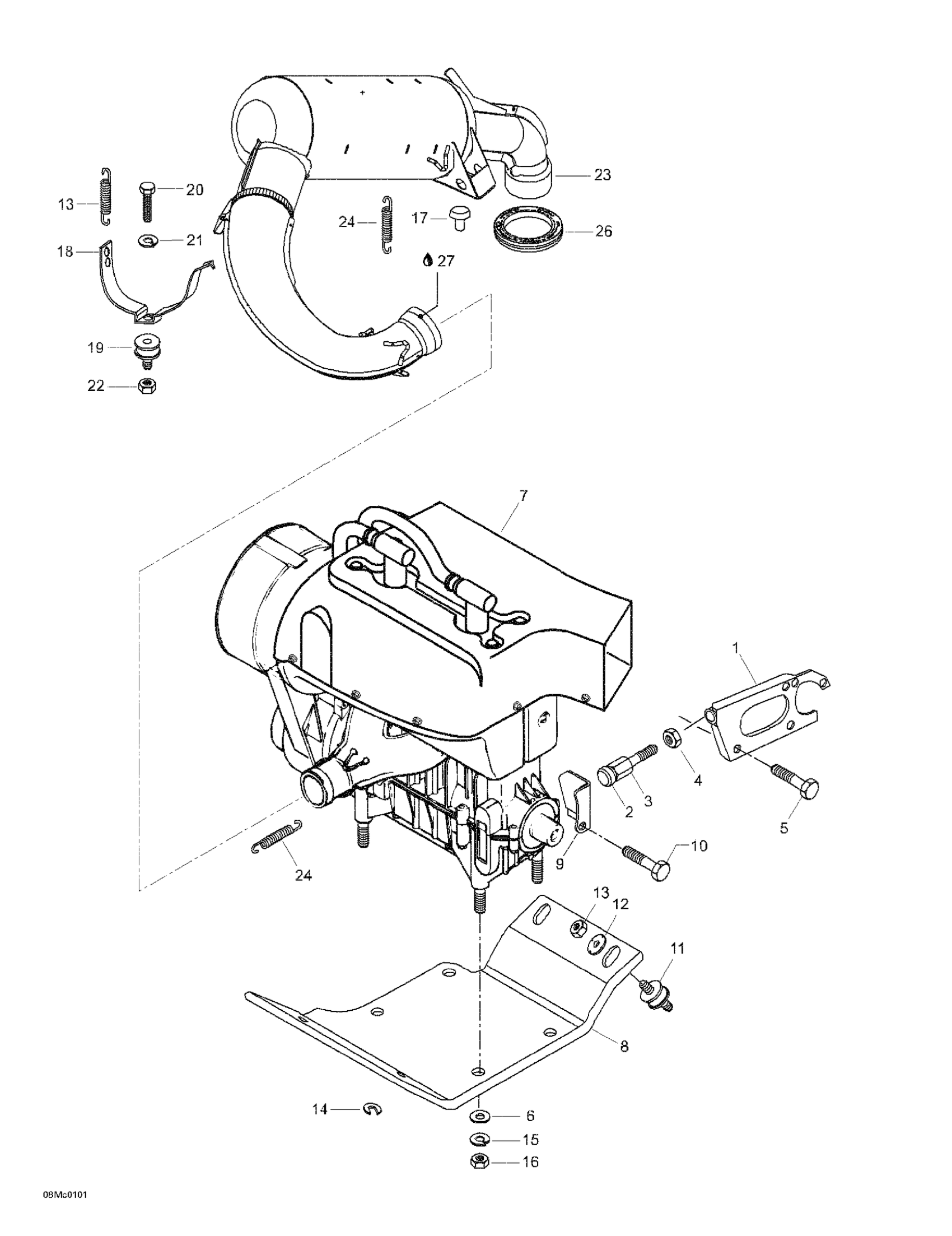

Ski-Doo Skandic 440F, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

Support plate

M5346583

Unavailable

2

Rod retainer

570025100

Unavailable

3

Screw

517244200

Unavailable

4

Jam nut M12

M33063

Unavailable

5

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

6

WASHER M10 - Call your local BRP dealership

20005

Unavailable

7

<<443>> Engine

400409422

Unavailable

8

SUPPORT-ENGINE - Call your local BRP dealership

M5246291

Unavailable

9

Welded Stopper Plate

M5344446

Unavailable

10

Hex. Screw M8 x 16

207181644

$1.00

11

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

12

Lock Washer

512056700

$3.01

13

Elastic Locking Nut M10 X 1.5

233601416

$1.63

14

Washer

M546221

Unavailable

15

Lock Washer

M20047

Unavailable

16

Hex. Nut M10 X 1.5

232006414

$1.27

17

Rubber Bumper

570044700

$10.24

18

Support

M535108

Unavailable

19

Rubber Bumper

M28245

Unavailable

20

Screw

M40034

Unavailable

21

Lock Washer 8 mm

234181401

$0.87

22

Hex. Elastic Stop Nut M8

232581414

$0.54

23

Muffler

M5145983

Unavailable

24

Spring This part replaces 420938795.

420938796

$8.09

25

Spring

M543225

Unavailable

26

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

27

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85
