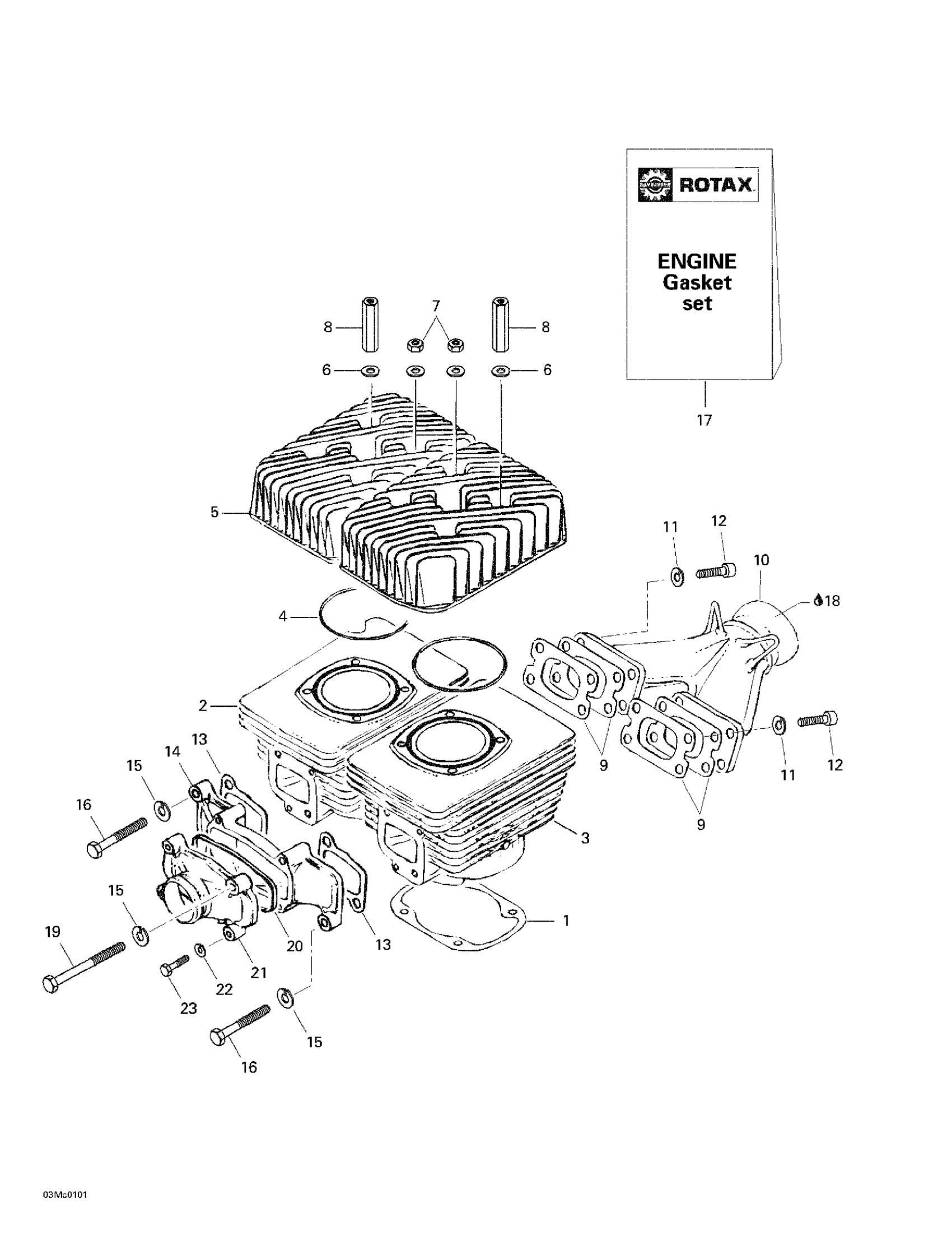

Ski-Doo Skandic 440F, 2001 Cylinder, Exhaust Manifold Diagram
#
Description
Price
1
GASKET 0.4 - Call your local BRP dealership
420430351
Unavailable
2
PTO Side Cylinder
420923790
Unavailable
3
Mag Side Cylinder
420923795
Unavailable
4
O-Ring
420931380
Unavailable
5
CYLINDER HEAD - Call your local BRP dealership
420923377
Unavailable
6
Flat Washer 8.4 mm
420250315
Unavailable
7
Hex. Nut M8
232081414
Unavailable
8
DISTANCE NUT M8 X 51 - Call your local BRP dealership
420842208
Unavailable
9
GASKET - Call your local BRP dealership
420850114
Unavailable
10
Exhaust Manifold
420879459
Unavailable
11
Lock Washer 8 mm
234181401
Unavailable
12
Socket Head Screw M8 X 30
M40135
Unavailable
13
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
14
Intake Manifold
420867435
Unavailable
15
Washer-Lock Din.128
420945832
Unavailable
16
Hex. Screw M8 X 35
207083544
Unavailable
17
GASKET SET, ENGINE - Call your local BRP dealership
420994232
Unavailable
18
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
19
Hex. Screw M8 X 70
420841201
Unavailable
20
RUBBER RING - Call your local BRP dealership
420850190
Unavailable
21
Intake Cover-Intake
420867442
Unavailable
22
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
23
Hex. Screw M6 X 25
207162544
Unavailable
