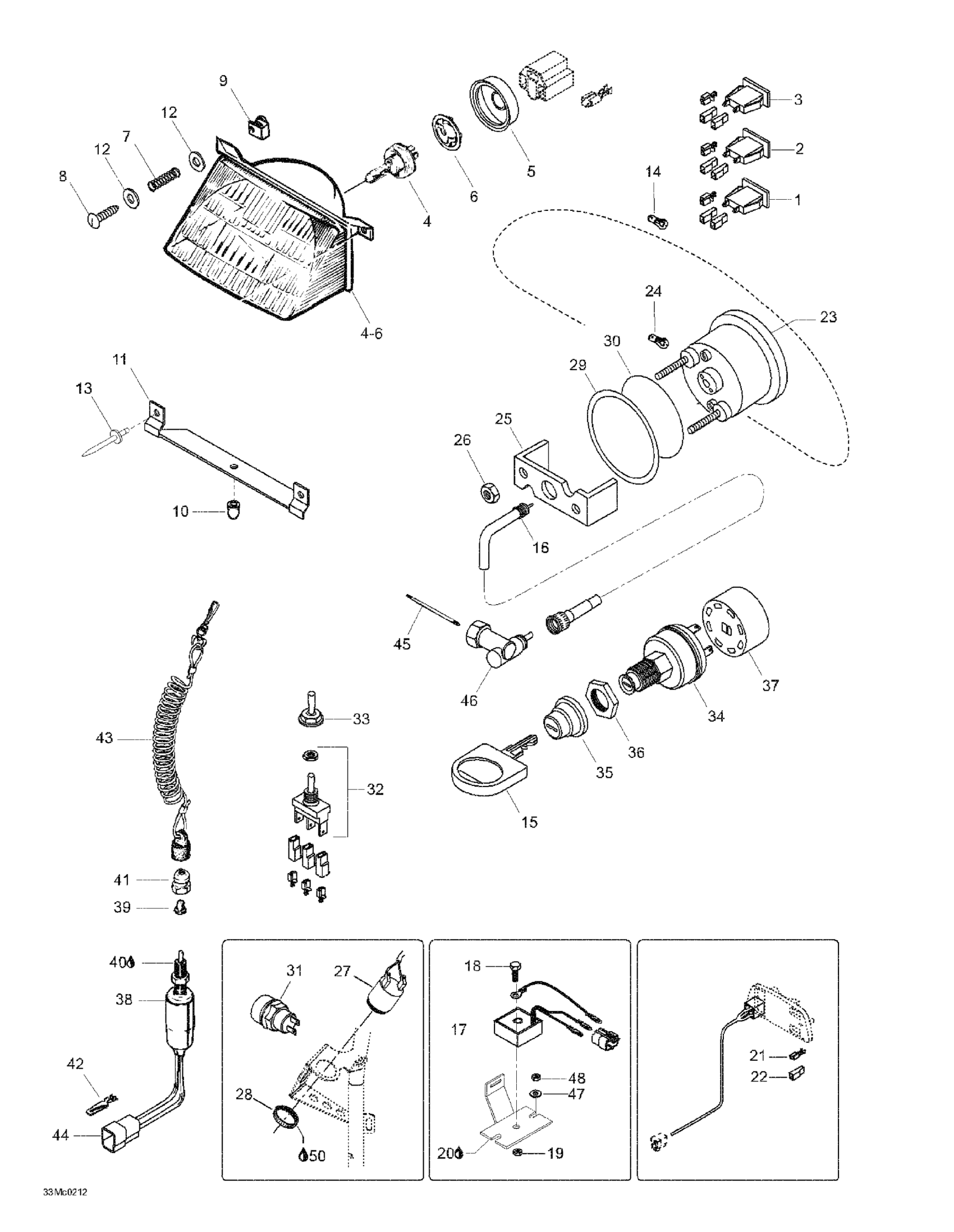

Ski-Doo Skandic 440, 2002 Electrical System Diagram

#

Description
Price

1

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

2

Pilot Lamp (Blue)

410109600

Unavailable

3

Pilot Lamp (Red)

410109500

Unavailable

4

Headlamp | Includes 53 to 56

410609300

Unavailable

4

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

5

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

6

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

7

Spring

517168600

$6.70

8

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

9

Projector Nut

572078600

Unavailable

10

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

11

HOLDER - Call your local BRP dealership

M539864

Unavailable

12

Flat Washer M5

234051410

$0.51

13

Rivet

M36489

Unavailable

14

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

15

Blank Key

415129350

Unavailable

16

Speedometer Cable

M45006

Unavailable

17

Volt Regulator Ass'y

M5446342

Unavailable

18

Hex. Screw

M40003

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

20

Grease Tube Lmz, 400 G

413707500

Unavailable

21

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

22

Female Terminal Housing, 1 Circuit

409010400

$7.25

23

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

24

Instrumentation Bulb

410501000

Unavailable

25

Case Holder

414806500

Unavailable

26

NUT M5 - Call your local BRP dealership

M33062

Unavailable

27

HORN - Call your local BRP dealership

515176035

Unavailable

28

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

29

Washer

517258500

Unavailable

30

O-Ring

414807100

Unavailable

31

Push Button

415130372

$123.10

32

Heat Grip Switch

410110700

$30.57

33

Switch Cover

515175281

$14.58

34

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

35

Switch Boot

570013700

$10.49

36

FACE NUT - Call your local BRP dealership

410112100

Unavailable

37

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

38

Brake Switch

515175653

$17.88

39

Plunger Cap

570151100

$9.13

40

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

41

Switch Nut

515145900

$10.51

42

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

43

Cap Ass'y

515178283

$36.54

44

Male Housing

M42268

Unavailable

45

Square Pin Nska L=75Mm This part replaces M45075.

45075

$17.88

46

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$125.34

47

Flat Washer 6 mm

234062410

$0.73

48

Elastic Stop Nut M6

232561414

$1.78

49

Cooling Plate

M5346798

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

$36.99
